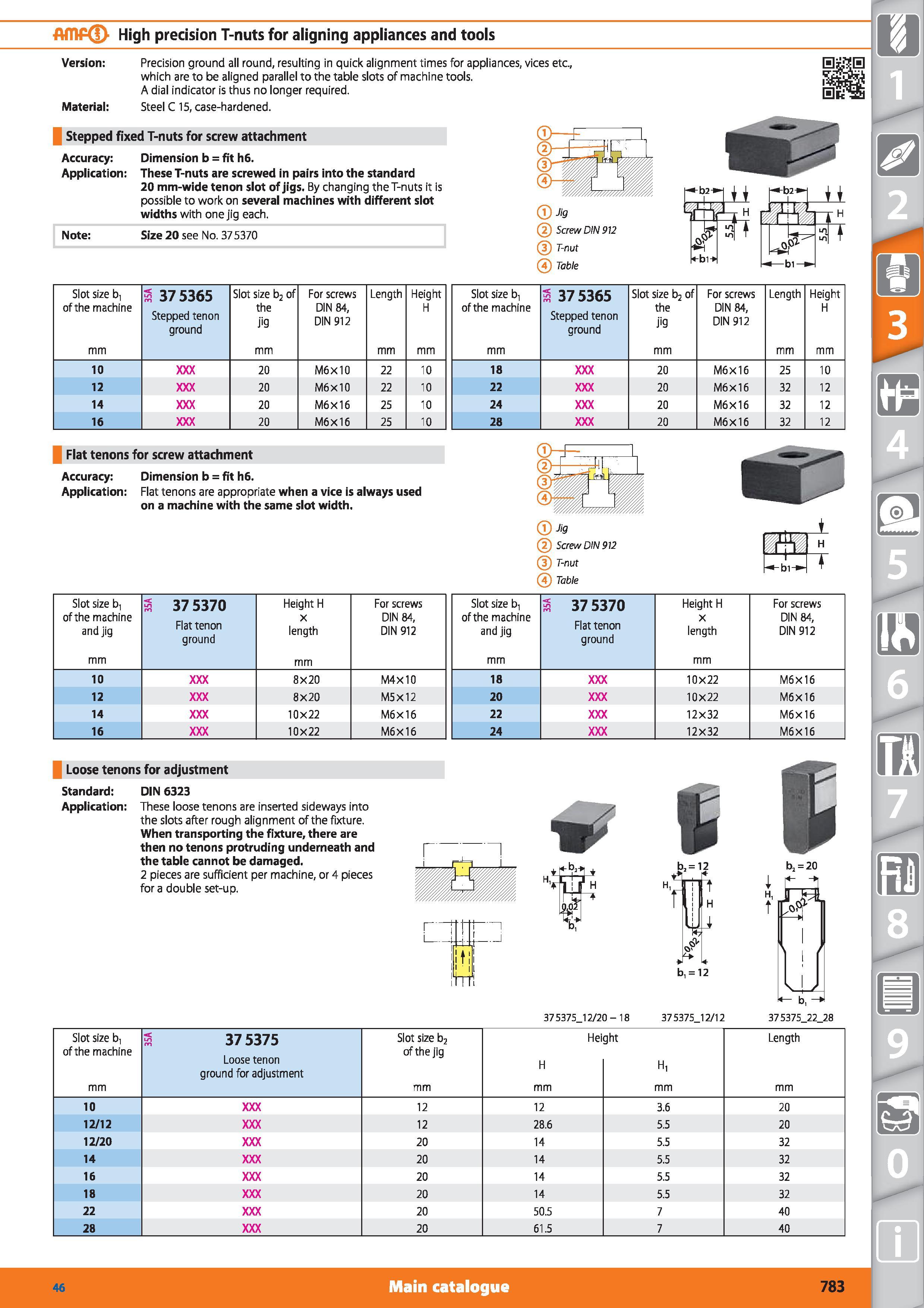

ATOP High precision T-nuts for aligning appliances and tools Version Precision ground all round, resulting in quick alignment times for appliances, vices etc., which are to be aligned parallel to the table slots of machine tools. A dial indicator is thus no longer required. Material Steel C 15, case-hardened. Stepped fixed T-nuts for screw attachment Accuracy Dimension b fit h6. Application These T-nuts are screwed in pairs into the standard 20 mm-wide tenon slot of jigs. By changing the T-nuts it is possible to work on several machines with different slot widths with one jig each. Note Size 20 see No. 37 5370 Q) Jig Screw DIN 912 T-nut Table Slot size b, of the machine mm s 375365 Stepped tenon ground Slot size b2 of the jig mm For screws DIN 84, DIN 912 Length mm Height H mm Slot size b, of the machine mm 3 375365 Stepped tenon ground Slot size bj of the jig mm For screws DIN 84, DIN 912 Length mm Height H mm 10 20 M6x10 22 10 18 20 M6X16 25 10 12 20 M6x10 22 10 22 20 M6x16 32 12 14 20 M6X16 25 10 24 20 M6X16 32 12 16 20 M6X16 25 10 28 20 M6X16 32 12 Flat tenons for screw attachment Accuracy Dimension b fit h6. Application Flat tenons are appropriate when a vice is always used on a machine with the same slot width. Jig Screw DIN 912 T-nut Table -bi trr Slot size b, of the machine and jig mm s 37 5370 Flat tenon ground Height H X length mm For screws DIN 84, DIN 912 Slot size b, of the machine and jig mm a 37 5370 Flat tenon ground Height H X length mm For screws DIN 84, DIN 912 10 8x20 M4X10 18 10x22 M6X16 12 8X20 M5X12 20 10X22 M6X16 14 10x22 M6X16 22 12x32 M6xl6 16 10X22 M6X16 24 12X32 M6X16 Loose tenons for adjustment Standard DIN 6323 Application These loose tenons are inserted sideways into the slots after rough alignment of the fixture. When transporting the fixture, there are then no tenons protruding underneath and the table cannot be damaged. 2 pieces are sufficient per machine, or 4 pieces for a double set-up. bi 37 5375_12/20 - 18 37 5375_12/12 37 5375_22_28 Slot size b, of the machine mm s 375375 Loose tenon ground for adjustment Slot size b2 of the jig mm Hei H mm ght H, mm Length mm 10 12 12 3.6 20 12/12 12 28.6 5.5 20 12/20 20 14 5.5 32 14 20 14 5.5 32 16 20 14 5.5 32 18 20 14 5.5 32 22 20 50.5 7 40 28 20 61.5 7 40 Main catalogue Hoffmann Group 46 783
