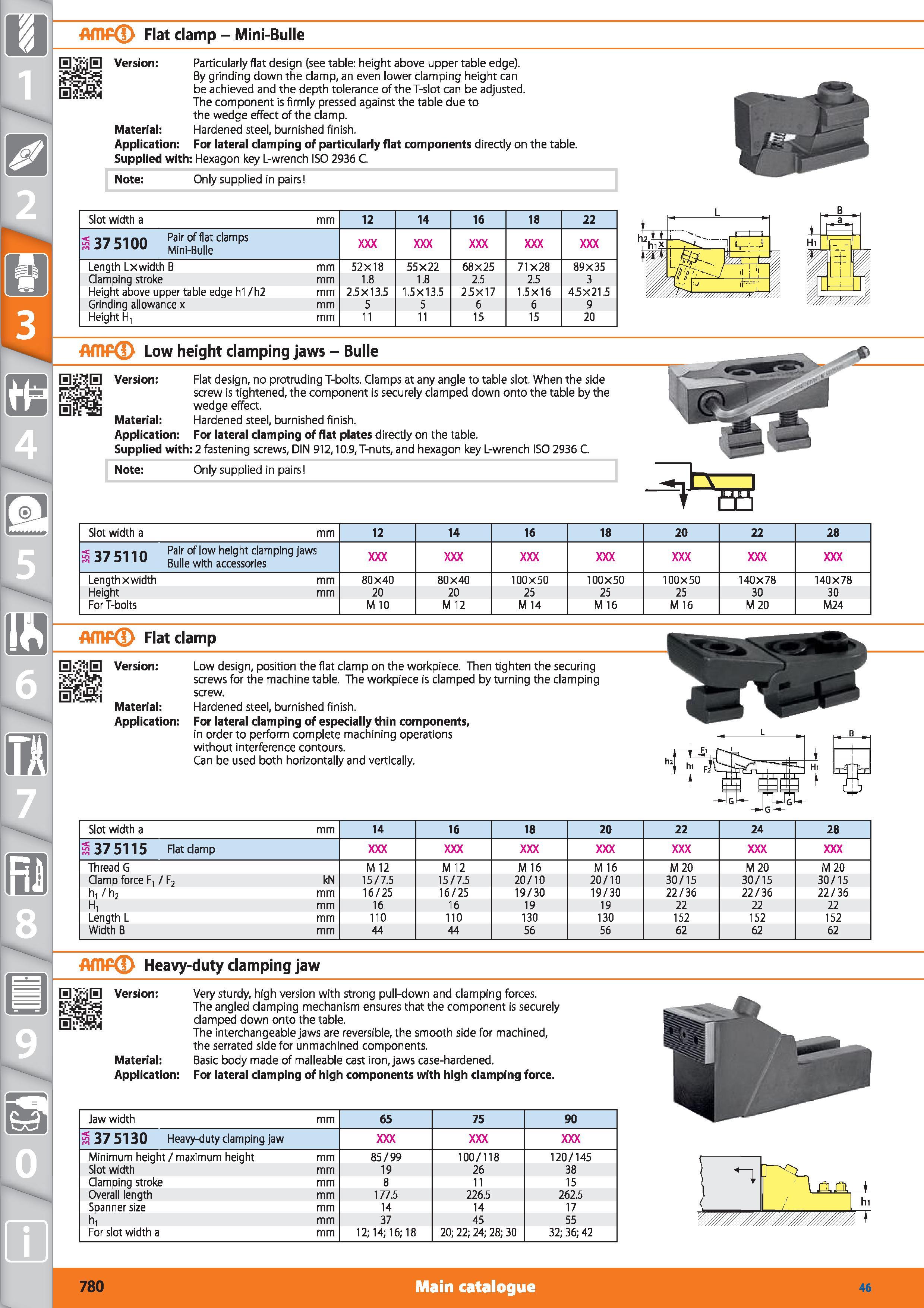

1 AfTlP Flat damp - Mini-Bulle Version Particularly flat design (see table height above upper table edge). By grinding down the clamp, an even lower clamping height can be achieved and the depth tolerance of the T-slot can be adjusted. The component is firmly pressed against the table due to the wedge effect of the clamp. Material Hardened steel, burnished finish. Application For lateral clamping of particularly flat components directly on the table. Supplied with Hexagon key L-wrench ISO 2936 C. Note Only supplied in pairs Slot width a mm 12 14 16 18 22 < 7 lnn Pair of flat clamps s 37 5100 Mini_Bu e Length Lxwidth B mm 52x18 55X22 68X25 71X28 89X35 Clamping stroke mm 1.8 1.8 2.5 2.5 3 Height above upper table edge hi /h2 mm 2.5X13.5 1.5X13.5 2.5X17 1.5X16 4.5X21.5 Grinding allowance x mm 5 5 6 6 9 Height H, mm 11 11 15 15 20 -L. a Hi h r p.) 11 i It -t AfflP Low height damping jaws - Bulle Version Flat design, no protruding T-bolts. Clamps at any angle to table slot. When the side screw is tightened, the component is securely clamped down onto the table by the wedge effect. Material Hardened steel, burnished finish. Application For lateral clamping of flat plates directly on the table. Supplied with 2 fastening screws, DIN 912,10.9, T-nuts, and hexagon key L-wrench ISO 2936 C. Note Only supplied in pairs d Slot width a mm 12 14 16 18 20 22 28 3 375110 Pair of low height clamping jaws Bulle with accessories Length x width mm 80x40 80x40 100x50 100x50 100x50 140x78 140x78 Height mm 20 20 25 25 25 30 30 For T-bolts M 10 M 12 M 14 M 16 M 16 M 20 M24 AfTlP Flat damp to Version Material Application Low design, position the flat clamp on the workpiece. Then tighten the securing screws for the machine table. The workpiece is clamped by turning the clamping screw. Hardened steel, burnished finish. For lateral clamping of especially thin components, in order to perform complete machining operations without interference contours. Can be used both horizontally and vertically. Slot width a mm 14 16 18 20 22 24 28 3 375115 Flat clamp Thread G M 12 M 12 M 16 M 16 M 20 M 20 M 20 Clamp force F, / F2 kN 15/7.5 15/7.5 20/10 20/10 30/15 30/15 30/15 h,/h2 mm 16/25 16/25 19/30 19/30 22/36 22/36 22/36 H, mm 16 16 19 19 22 22 22 Length L mm 110 110 130 130 152 152 152 Width B mm 44 44 56 56 62 62 62 AfflP Heavy-duty damping jaw Version Material Application Very sturdy, high version with strong pull-down and clamping forces. The angled clamping mechanism ensures that the component is securely clamped down onto the table. The interchangeable jaws are reversible, the smooth side for machined, the serrated side for unmachined components. Basic body made of malleable cast iron, jaws case-hardened. For lateral clamping of high components with high clamping force. Jaw width mm 65 75 90 3 37 5130 Heavy-duty clamping jaw Minimum height / maximum height mm 85/99 100/118 120/145 Slot width mm 19 26 38 Clamping stroke mm 8 11 15 Overall length mm 177.5 226.5 262.5 Spanner size mm 14 14 17 h, mm 37 45 55 For slot width a mm 12; 14; 16; 18 20; 22; 24; 28; 30 32; 36; 42 l Inn hi 780 Main catalogue Hoffmann Group 46
