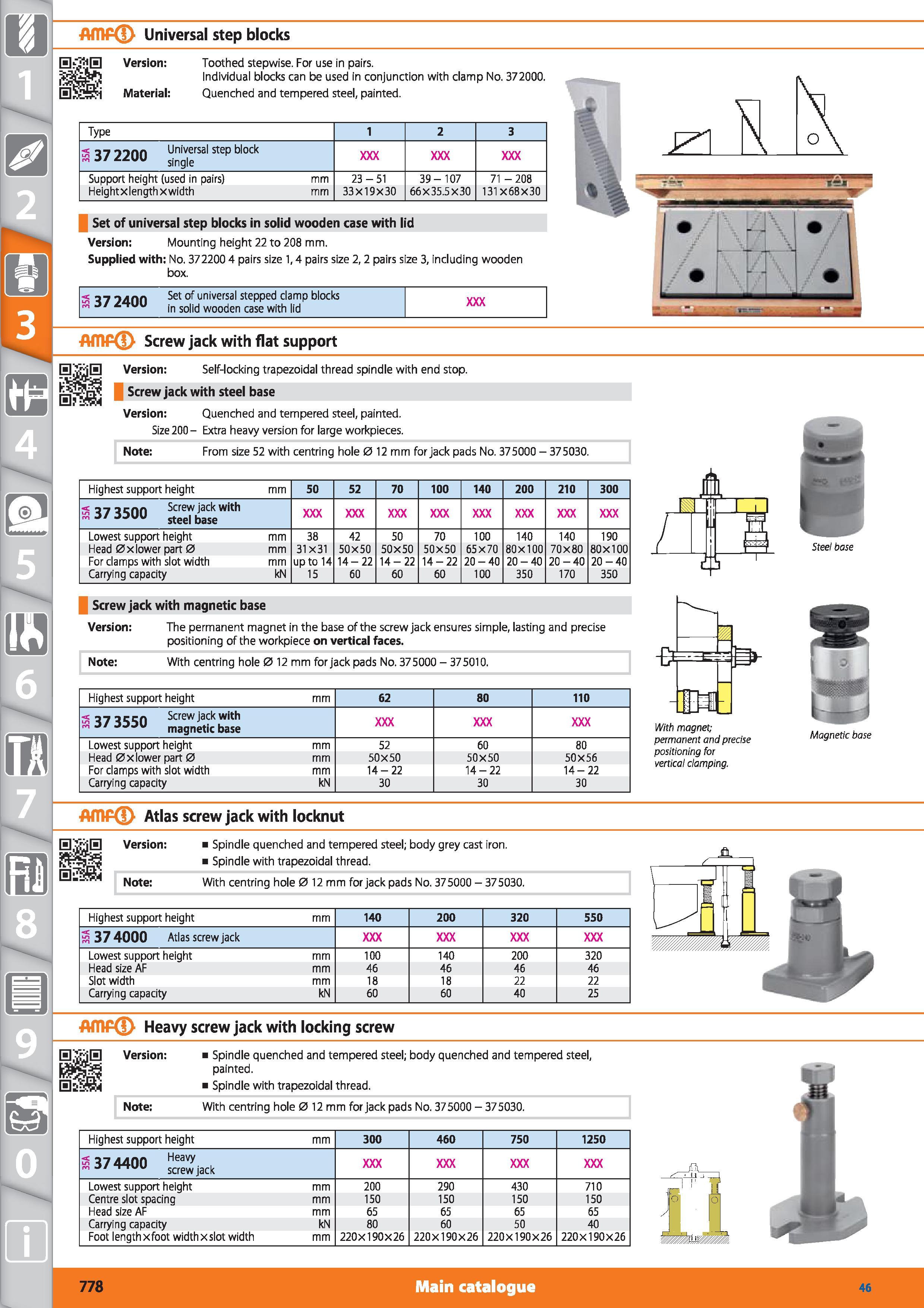

ATOP Universal step blocks Version HteSi Material Toothed stepwise. For use in pairs. Individual blocks can be used in conjunction with clamp No. 372000. Quenched and tempered steel, painted. Type 1 2 3 < 37 ’yynn Universal step block 3 3/ ZZUU sing e Support height (used in pairs) mm 23-51 39-107 71 - 208 Heightxlengthx width mm 33X19X30 66x35.5x30 131X68X30 Set of universal step blocks in solid wooden case with lid Version Mounting height 22 to 208 mm. Supplied with No. 372200 4 pairs size 1,4 pairs size 2,2 pairs size 3, including wooden box. I ny Set of universal stepped clamp blocks a/ z tuu in so j(j wooc en case Wjth UJ Amp Screw jack with flat support 0 Version Self-locking trapezoidal thread spindle with end stop. Screw jack with steel base Version Quenched and tempered steel, painted. Size 200 - Extra heavy version for large workpieces. Note From size 52 with centring hole 0 12 mm for jack pads No. 375000 - 375030. Highest support height mm 50 52 70 100 140 200 210 300 3 37 3500 lcr7Jackwith m steel base Lowest support height mm 38 42 50 70 100 140 140 190 Head 0x lower part 0 mm 31x31 50x50 50x50 50x50 65x70 80x100 70x80 80x100 For clamps with slot width mm up to 14 14-22 14-22 14-22 20-40 20-40 20-40 20-40 Carrying capacity kN 15 60 60 60 100 350 170 350 Screw jack with magnetic base Version The permanent magnet in the base of the screw jack ensures simple, lasting and precise positioning of the workpiece on vertical faces. Note With centring hole 0 12 mm for jack pads No. 375000 - 375010. Highest support height mm 62 80 110 S 71<;<;n Screw jack with magnetic base Lowest support height mm 52 60 80 Head 0x lower part 0 mm 50X50 50X50 50X56 For clamps with slot width mm 14-22 14-22 14-22 Carrying capacity kN 30 30 30 With magnet; permanent and precise positioning for vertical clamping. 8 0 m Amp Atlas screw jack with locknut HXjH Version i Spindle quenched and tempered steel; body grey cast iron, i Spindle with trapezoidal thread. Note With centring hole 0 12 mm for jack pads No. 375000 - 375030. Highest support height mm 140 200 320 550 37 4000 Atlas screw jack Lowest support height mm 100 140 200 320 Head size AF mm 46 46 46 46 Slot width mm 18 18 22 22 Carrying capacity kN 60 60 40 25 Amp Heavy screw jack with locking screw Sab Version Spindle quenched and tempered steel; body quenched and tempered steel, painted. Spindle with trapezoidal thread. Note With centring hole 0 12 mm for jack pads No. 375000 - 375030. Highest support height mm 300 460 750 1250 S 37 4400 Heavy , m 3/screw jack Lowest support height mm 200 290 430 710 Centre slot spacing mm 150 150 150 150 Head size AF mm 65 65 65 65 Carrying capacity kN 80 60 50 40 Foot lengthxfoot widthxslot width mm 220X190X26 220X190X26 220X190X26 220X190X26 778 Main catalogue Hoffmann Group 46 Steel base Magnetic base
