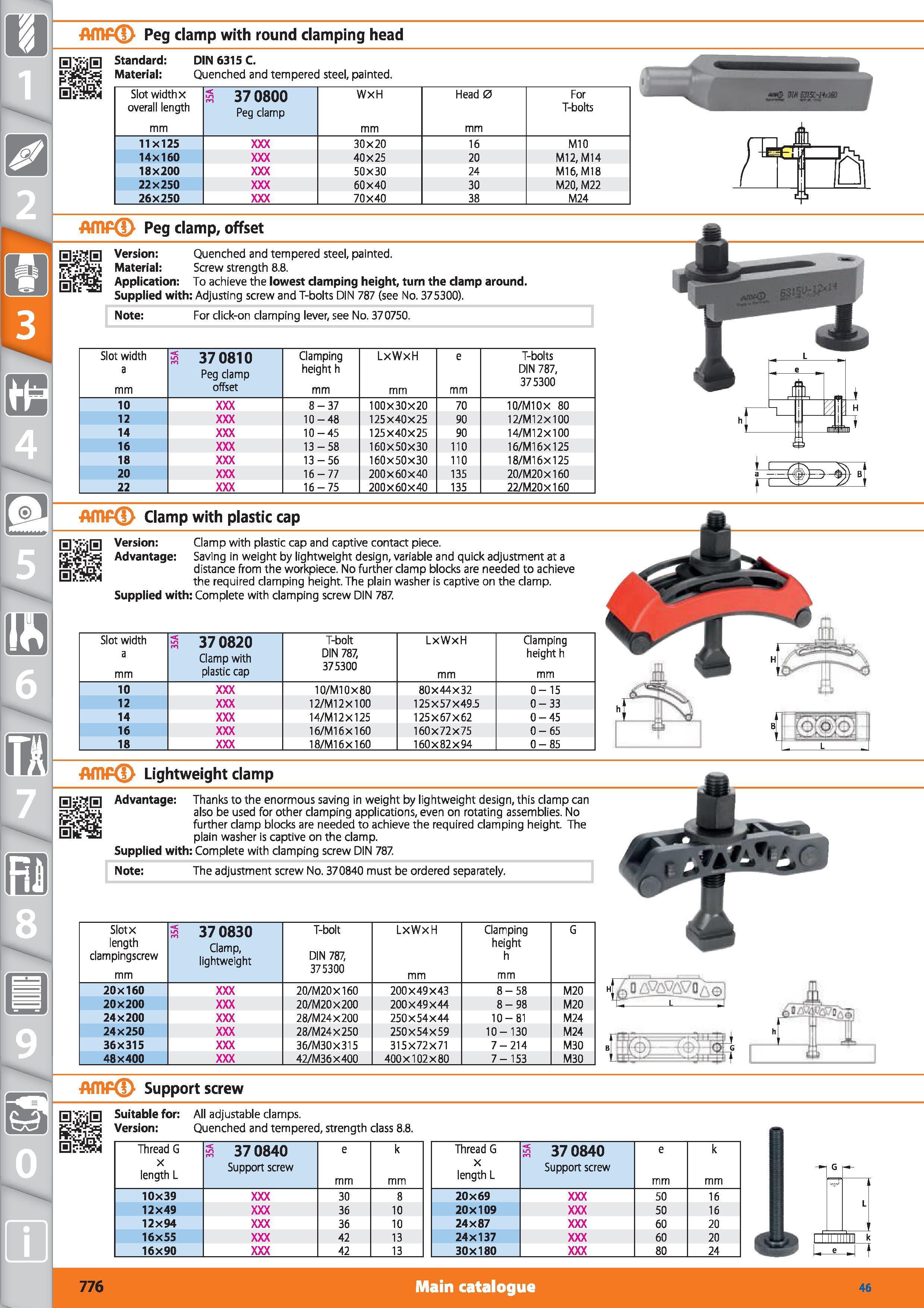

AfllP Peg clamp with round clamping head Standard DIN 6315 C. Material Quenched and tempered steel, painted. Slot width x overall length mm 3 370800 Peg clamp WxH mm Head 0 mm For T-bolts 11x125 30x20 16 M10 14x160 40X25 20 M12.M14 18X200 50x30 24 M16, M18 22x250 60x40 30 M20, M22 26X250 70X40 38 M24 Amp Peg clamp, offset g Version Quenched and tempered steel, painted. Material Screw strength 8.8. Application To achieve the lowest clamping height, turn the clamp around. Supplied with Adjusting screw and T-bolts DIN 787 (see No. 375300). Note For dick-on clamping lever, see No. 370750. Slot width a mm s 370810 Peg clamp offset Clamping height h mm LxWxH mm e mm T-bolts DIN 787, 375300 10 8-37 100x30x20 70 10/M10X 80 12 10-48 125x40x25 90 12/M12X100 14 10-45 125X40X25 90 14/M12X100 16 13-58 160X50X30 110 16/MI 6X125 18 13-56 160x50x30 110 18/MI 6x125 20 16-77 200x60x40 135 20/M20X160 22 16-75 200X60X40 135 22/M20X160 AfTlP Clamp with plastic cap Version Clamp with plastic cap and captive contact piece. Advantage Saving in weight by lightweight design, variable and quick adjustment at a distance from the workpiece. No further clamp blocks are needed to achieve the required clamping height. The plain washer is captive on the clamp. Supplied with Complete with clamping screw DIN 787. (Ul Slot width a mm s 370820 Clamp with plastic cap T-bolt DIN 787, 375300 LxWxH mm Clamping height h mm 10 10/M10X80 80x44x32 0-15 12 12/M12X100 125X57X49.5 0-33 14 14/M12X125 125X67X62 0-45 16 16/M16X160 160x72x75 0-65 18 18/M16X160 160x82x94 0-85 AfllP Lightweight damp Advantage Thanks to the enormous saving in weight by lightweight design, this clamp can also be used for other clamping applications, even on rotating assemblies. No further clamp blocks are needed to achieve the required clamping height. The plain washer is captive on the clamp. Supplied with Complete with clamping screw DIN 787. Note The adjustment screw No. 370840 must be ordered separately. 1 SlotX length dampingscrew mm ffi 370830 Clamp, lightweight T-bolt DIN 787, 375300 LxWxH mm Clamping height h mm G 20x160 20/M20X160 200 X49 X43 8-58 M20 20X200 20/M20X200 200X49X44 8-98 M20 24x200 28/M24 X 200 250 x 54x44 10-81 M24 24x250 28/M24X250 250X54X59 10-130 M24 36X315 36/M30X315 315x72x71 7-214 M30 48x400 42/M36X400 400x102 x 80 7-153 M30 A - T. in Tl AmP Support screw Suitable for All adjustable clamps. Version Quenched and tempered, strength class 8.8. Thread G X length L ffi 370840 Support screw e mm k mm 10x39 30 8 12X49 36 10 12x94 36 10 16x55 42 13 16X90 42 13 Thread G X length L s 370840 Support screw e mm k mm 20x69 50 16 20X109 50 16 24x87 60 20 24x137 60 20 30X180 80 24 G 1 j L 1 776 Main catalogue Hoffmann Group 46
