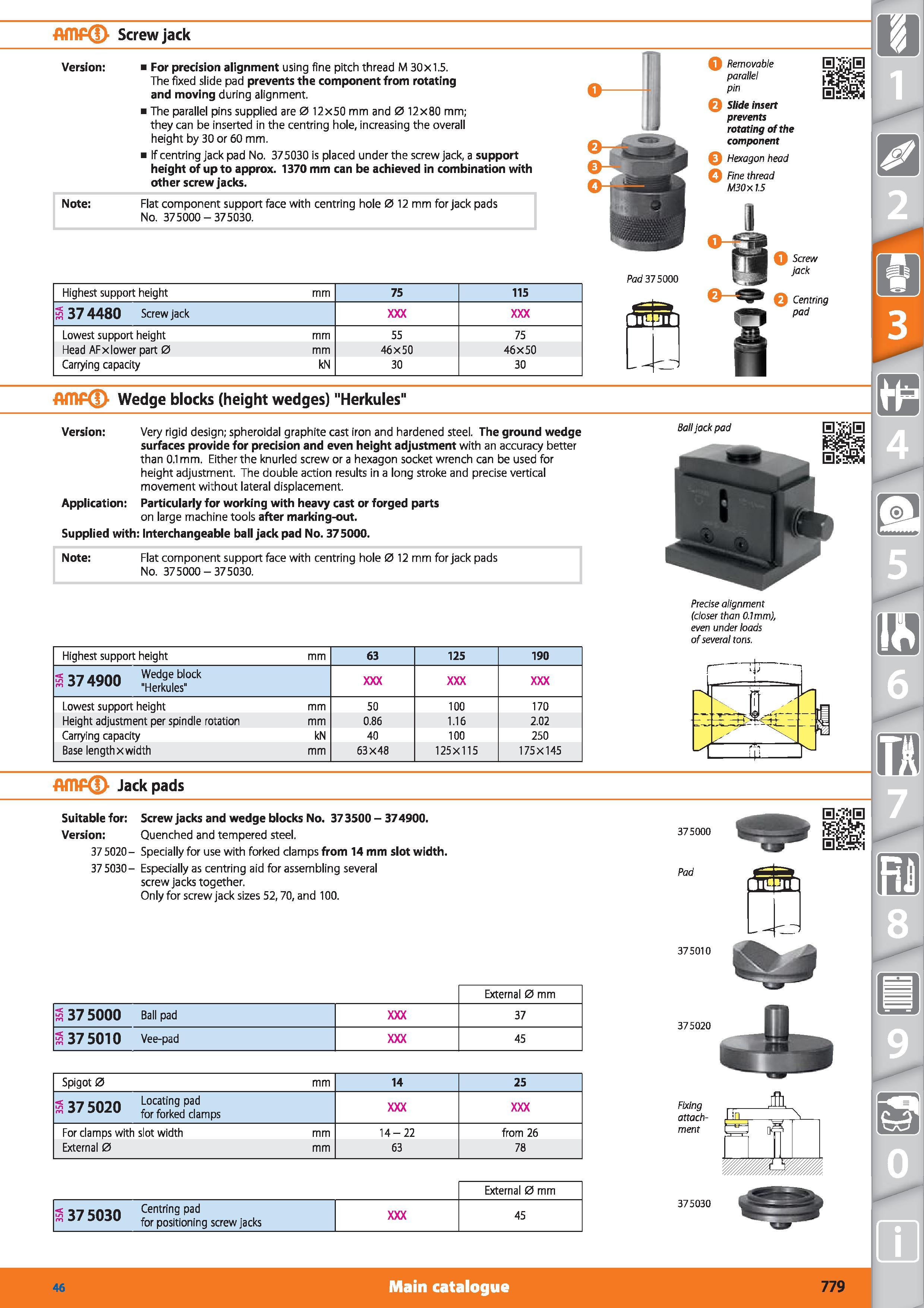

AmP Screw jack Version Note For precision alignment using fine pitch thread M 30x1.5. The fixed slide pad prevents the component from rotating and moving during alignment. The parallel pins supplied are 0 12x50 mm and 0 12x80 mm; they can be inserted in the centring hole, increasing the overall height by 30 or 60 mm. If centring jack pad No. 375030 is placed under the screw jack, a support height of up to approx. 1370 mm can be achieved in combination with other screw jacks. Flat component support face with centring hole 0 12 mm for jack pads No. 375000-375030. Q Removable parallel pin 0 Slide insert prevents rotating of the component 5 Hexagon head Q Fine thread M30x 1.5 il Highest support height mm 75 115 S 37 4480 Screw jack Lowest support height mm 55 75 Head AFx lower part 0 mm 46x50 46x50 Carrying capacity kN 30 30 Pad 375000 Q Screw jack Q Centring pad AmP Wedge blocks (height wedges) "Herkules" Version Very rigid design; spheroidal graphite cast iron and hardened steel. The ground wedge surfaces provide for precision and even height adjustment with an accuracy better than 0.1 mm. Either the knurled screw or a hexagon socket wrench can be used for height adjustment. The double action results in a long stroke and precise vertical movement without lateral displacement. Application Particularly for working with heavy cast or forged parts on large machine tools after marking-out. Supplied with Interchangeable ball jack pad No. 375000. Ball jack pad Note Flat component support face with centring hole 0 12 mm for jack pads No. 375000-375030. Precise alignment (closer than 0.1mm), even under loads of several tons. Highest support height mm 63 125 190 S 37 4900 VVedge block 3/ "Herkules" Lowest support height mm 50 100 170 Height adjustment per spindle rotation mm 0.86 1.16 2.02 Carrying capacity kN 40 100 250 Base length x width mm 63X48 125X115 175X145 113 Ifffl Amp Jack pads Suitable for Screw jacks and wedge blocks No. 37 3500 - 374900. Version Quenched and tempered steel. 37 5020- Specially for use with forked clamps from 14 mm slot width. 37 5030- Especially as centring aid for assembling several screw jacks together. Only for screw jack sizes 52,70, and 100. External 0 mm s 37 5000 Ball pad 37 S 37 5010 Vee-pad 45 Spigot 0 mm 14 25 S 37 5020 Locating pad m for forked clamps For clamps with slot width mm 14-22 from 26 External 0 mm 63 78 375000 Pad 375010 375020 Fixing attach- ment External 0 mm 37 5030 Centring pad m for positioning screw jacks 45 Main catalogue Hoffmann Group 46 779
