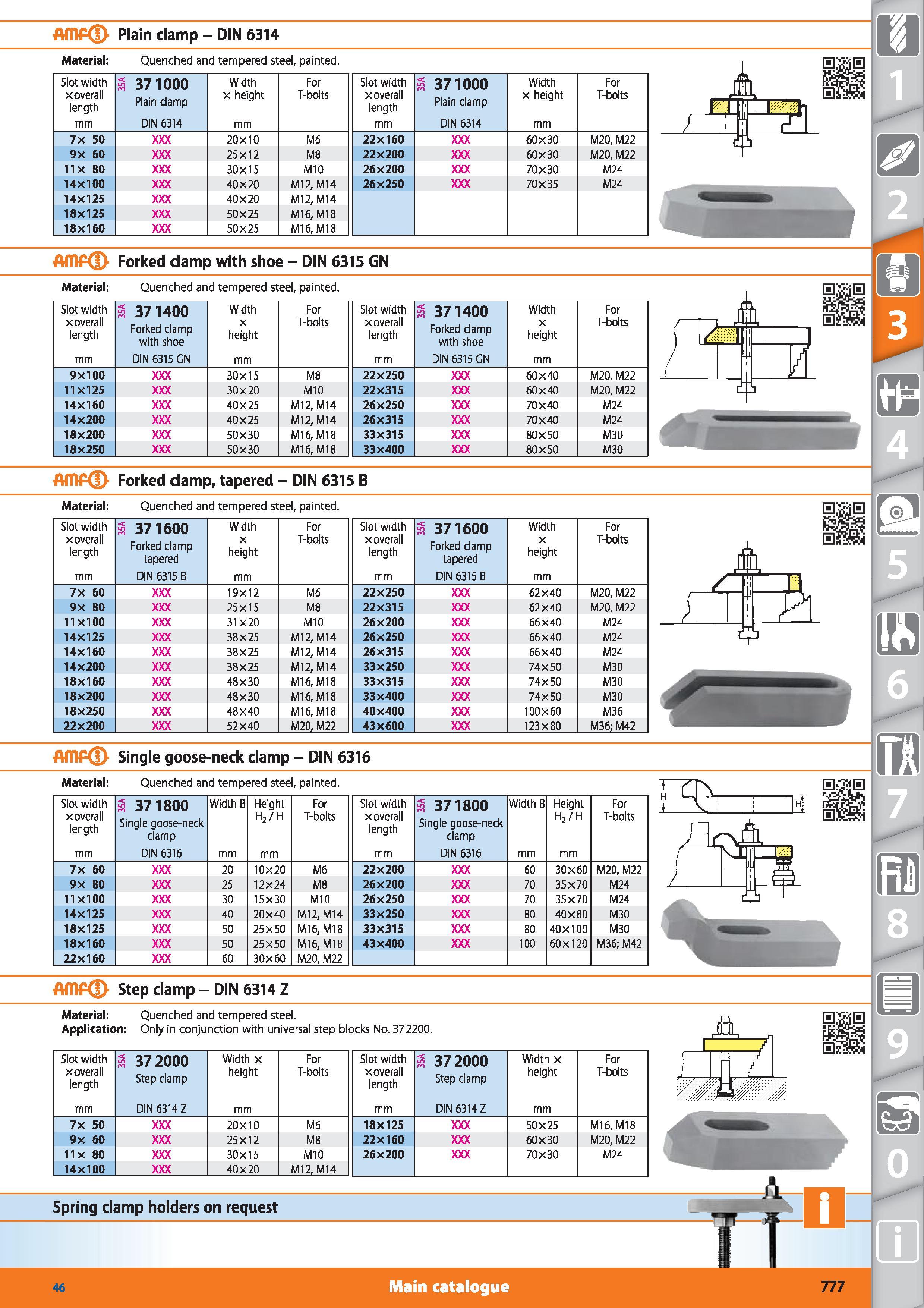

777 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.777

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 777 0777 ENG Lab2u

ATOP Plain clamp - DIN 6314 Material Quenched and tempered steel, painted. Slot width xoverall length mm b 371000 Plain clamp DIN 6314 Width x height mm For T-bolts Slot width xoverall length mm s 371000 Plain clamp DIN 6314 Width x height mm For T-bolts 7x 50 20x10 M6 22x160 60X30 M20, M22 9X 60 25x12 M8 22X200 60X30 M20, M22 11 x 80 30x15 M10 26x200 70X30 M24 14x100 40x20 M12.M14 26x250 70X35 M24 14x125 40x20 M12.M14 18x125 50x25 Ml 6, Ml 8 18X160 50X25 M16, Ml 8 A1TIP Forked clamp with shoe - DIN 6315 GN Material Quenched and tempered steel, painted. Slot width xoverall length mm s 371400 Forked clamp with shoe DIN 6315 GN Width x height mm For T-bolts Slot width xoverall length mm s 371400 Forked clamp with shoe DIN 6315 GN Width X height mm For T-bolts 9x100 30x15 M8 22x250 60X40 M20, M22 11x125 30x20 M10 22x315 60x40 M20, M22 14x160 40X25 M12.M14 26x250 70X40 M24 14X200 40X25 M12.M14 26X315 70X40 M24 18X200 50X30 M16, Ml 8 33X315 80X50 M30 18x250 50x30 M16, Ml 8 33x400 80x50 M30 AMP Forked clamp, tapered - DIN 6315 B Material Quenched and tempered steel, painted. Slot width xoverall length mm s 371600 Forked clamp tapered DIN 6315 B Width X height mm For T-bolts Slot width xoverall length mm s 371600 Forked clamp tapered DIN 6315 B Width X height mm For T-bolts 7x 60 19x12 M6 22X250 62X40 M20, M22 9x 80 25x15 M8 22x315 62x40 M20, M22 11x100 31x20 M10 26x200 66x40 M24 14x125 38x25 M12.M14 26x250 66x40 M24 14x160 38X25 M12.M14 26x315 66X40 M24 14X200 38X25 M12.M14 33X250 74X50 M30 18X160 48x30 Ml 6, Ml 8 33X315 74x50 M30 18x200 48x30 Ml 6, Ml 8 33x400 74x50 M30 18x250 48X40 Ml 6, Ml 8 40x400 100x60 M36 22X200 52X40 M20, M22 43 X600 123X80 M36; M42 AmP Single goose-neck clamp - DIN 6316 Material Quenched and tempered steel, painted. Slot width xoverall length s 371800 Single goose-neck clamp Width B Height h2/h For T-bolts Slot width xoverall length s 371800 Single goose-neck clamp Width B Height h2/h For T-bolts mm DIN 6316 mm DIN 6316 mm 7x 60 20 10X20 M6 22X200 60 30X60 M20, M22 9x 80 25 12x24 M8 26x200 70 35x70 M24 11x100 30 15x30 M10 26x250 70 35x70 M24 14x125 40 20X40 M12.M14 33x250 80 40x80 M30 18X125 50 25X50 Ml 6, Ml 8 33X315 80 40X100 M30 18X160 50 25X50 Ml 6, Ml 8 43 X400 100 60X120 M36; M42 22X160 60 30X60 M20, M22 rm i ATOP Step clamp - DIN 6314 Z Material Quenched and tempered steel. Application Only in conjunction with universal step blocks No. 372200. Slot width xoverall length mm s 372000 Step clamp DIN 6314 Z Width x height mm For T-bolts Slot width xoverall length mm s 37 2000 Step clamp DIN 6314 Z Width x height mm For T-bolts 7x 50 20x10 M6 18X125 50X25 M16.M18 9x 60 25x12 M8 22x160 60X30 M20, M22 11 x 80 30x15 M10 26x200 70X30 M24 14x100 40x20 M12.M14 Spring clamp holders on request 46 Main catalogue
