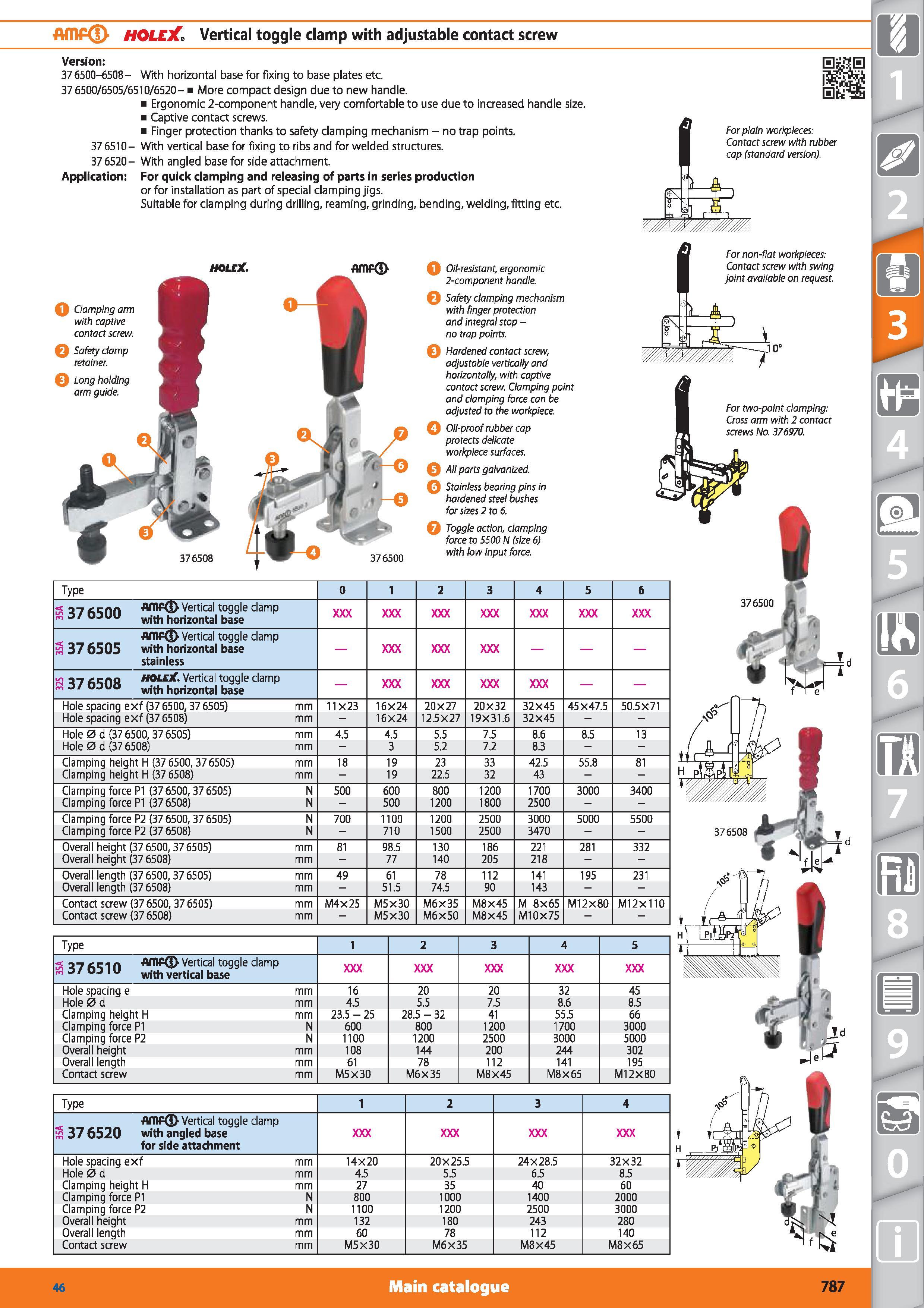

Amp(l> holejCVertical toggle clamp with adjustable contact screw Version 37 6500-6508- With horizontal base for fixing to base plates etc. 37 6500/6505/6510/6520- More compact design due to new handle. Ergonomic 2-component handle, very comfortable to use due to increased handle size. Captive contact screws. Finger protection thanks to safety clamping mechanism - no trap points. 37 6510- With vertical base for fixing to ribs and for welded structures. 37 6520- With angled base for side attachment. Application For quick damping and releasing of parts in series production or for installation as part of special clamping jigs. Suitable for clamping during drilling, reaming, grinding, bending, welding, fitting etc. I For plain workpieces Contact screw with rubber cap (standard version). HOLEX, Amp Q Clamping arm with captive contact screw, Q Safety clamp retainer. Long holding arm guide. 376500 Q Oil-resistant, ergonomic 2-component handle. Q Safety clamping mechanism with finger protection and integral stop -no trap points. Q Hardened contact screw, adjustable vertically and horizontally, with captive contact screw. Clamping point and clamping force can be adjusted to the workpiece. Q Oil-proof rubber cap protects delicate workpiece surfaces. Q All parts galvanized. Q Stainless bearing pins in hardened steel bushes for sizes 2 to 6. Q Toggle action, clamping force to 5500 N (size 6) with low input force. For non-flat workpieces Contact screw with swing joint available on request For two-point clamping Cross arm with 2 contact screws No. 376970. Type 0 1 2 3 4 5 6 <3-7 cnn AITlPd) Vertical toggle clamp m 3/ OjUU with horizontal base AfllP Vertical toggle clamp 3 37 6505 with horizontal base stainless X3 3-7 (-rno HOLEX Vertical toggle clamp m 3/ OjUo w(th horizontal base Hole spacing exf (37 6500,37 6505) mm 11X23 16X24 20X27 20X32 32X45 45 X47.5 50.5X71 Hole spacing exf (37 6508) mm - 16X24 12.5X27 19X31.6 32X45 Hole 0d (37 6500,37 6505) mm 4.5 4.5 5.5 7.5 8.6 8.5 13 Hole 0d (37 6508) mm - 3 5.2 7.2 8.3 Clamping height H (37 6500,376505) mm 18 19 23 33 42.5 55.8 81 Clamping height H (37 6508) mm - 19 22.5 32 43 Clamping force PI (37 6500,37 6505) N 500 600 800 1200 1700 3000 3400 Clamping force PI (37 6508) N - 500 1200 1800 2500 Clamping force P2 (37 6500,37 6505) N 700 1100 1200 2500 3000 5000 5500 Clamping force P2 (37 6508) N - 710 1500 2500 3470 Overall height (37 6500,37 6505) mm 81 98.5 130 186 221 281 332 Overall height (37 6508) mm - 77 140 205 218 Overall length (376500,376505) mm 49 61 78 112 141 195 231 Overall length (37 6508) mm - 51.5 74.5 90 143 Contact screw (37 6500,37 6505) Contact screw (37 6508) mm M4X25 M5X30 M5X30 M6X35 M6X50 M8X45 M8X45 M 8x65 M10X75 M12X80 M12X110 376508 Type 1 2 3 4 5 AlflPdJ Vertical toggle damp m 3/ Oj U with vertica base Hole spacing e mm 16 20 20 32 45 Hole 0 d mm 4.5 5.5 7.5 8.6 8.5 Clamping height H mm 23.5 - 25 28.5 - 32 41 55.5 66 Clamping force PI N 600 800 1200 1700 3000 Clamping force P2 N 1100 1200 2500 3000 5000 Overall height mm 108 144 200 244 302 Overall length mm 61 78 112 141 195 Contact screw mm M5X30 M6X35 M8X45 M8X65 M12X80 Type 1 2 3 4 AmP
