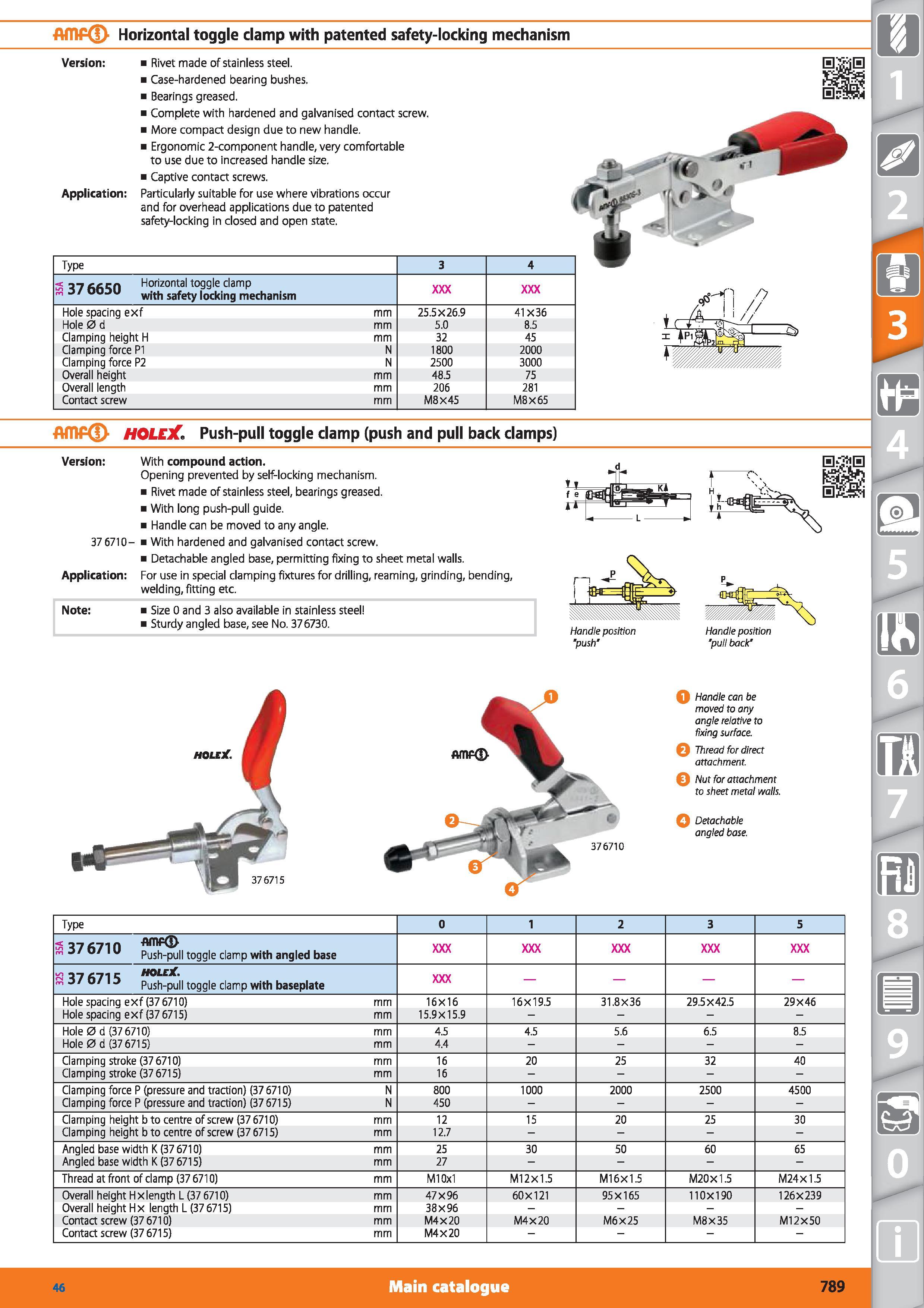

ATOP Horizontal toggle clamp with patented safety-locking mechanism i 37 Horizontal toggle clamp 1 with safety locking mechanism Hole spacing exf Hole 0 d Clamping height H Clamping force PI Clamping force P2 Overall height Overall length Contact screw 25.5x26.9 5.0 32 1800 2500 48.5 206 M8X45 41X36 8.5 45 2000 3000 75 281 M8X65 itm Version Rivet made of stainless steel. Case-hardened bearing bushes. Bearings greased. Complete with hardened and galvanised contact screw. More compact design due to new handle. Ergonomic 2-component handle, very comfortable to use due to increased handle size. Captive contact screws. Application Particularly suitable for use where vibrations occur and for overhead applications due to patented safety locking in closed and open state. Amp holejCPush-pull toggle clamp (push and pull back clamps) Version With compound action. Opening prevented by self-locking mechanism. Rivet made of stainless steel, bearings greased. With long push-pull guide. Handle can be moved to any angle. 37 6710- With hardened and galvanised contact screw. Detachable angled base, permitting fixing to sheet metal walls. Application For use in special clamping fixtures for drilling, reaming, grinding, bending, welding, fitting etc. Note Size 0 and 3 also available in stainless steel Sturdy angled base, see No. 376730. Handle position ’push' Handle position 'pull back" Q Handle can be moved to any angle relative to fixing surface 0 Thread for direct attachment. 0 Nut for attachment to sheet metal walls. Q Detachable angled base. 376710 Type 0 1 2 3 5 < ny 0 flinPQJ Push-pull toggle clamp with angled base wi HOLCX. Push-pull toggle clamp with baseplate Hole spacing exf (37 6710) mm 16X16 16X19.5 31.8X36 29.5X42.5 29X46 Hole spacing exf (37 6715) mm 15.9X15.9 Hole 0d (376710) mm 4.5 4.5 5.6 6.5 8.5 Hole 0d (376715) mm 4.4 Clamping stroke (37 6710) mm 16 20 25 32 40 Clamping stroke (37 6715) mm 16 Clamping force P (pressure and traction) (37 6710) N 800 1000 2000 2500 4500 Clamping force P (pressure and traction) (37 6715) N 450 Clamping height b to centre of screw (37 6710) mm 12 15 20 25 30 Clamping height b to centre of screw (37 6715) mm 12.7 Angled base width K (37 6710) mm 25 30 50 60 65 Angled base width K (37 6715) mm 27 Thread at front of clamp (376710) mm Ml 0x1 M12X1.5 Ml 6X1.5 M20X1.5 M24X1.5 Overall height Hx length L (37 6710) mm 47X96 60X121 95X165 110X190 126X239 Overall height Hx length L (376715) mm 38X96 Contact screw (37 6710) mm M4X20 M4X20 M6X25 M8X35 M12X50 Contact screw (37 6715) mm M4X20 376715 Main catalogue Hoffmann Group 46 789
