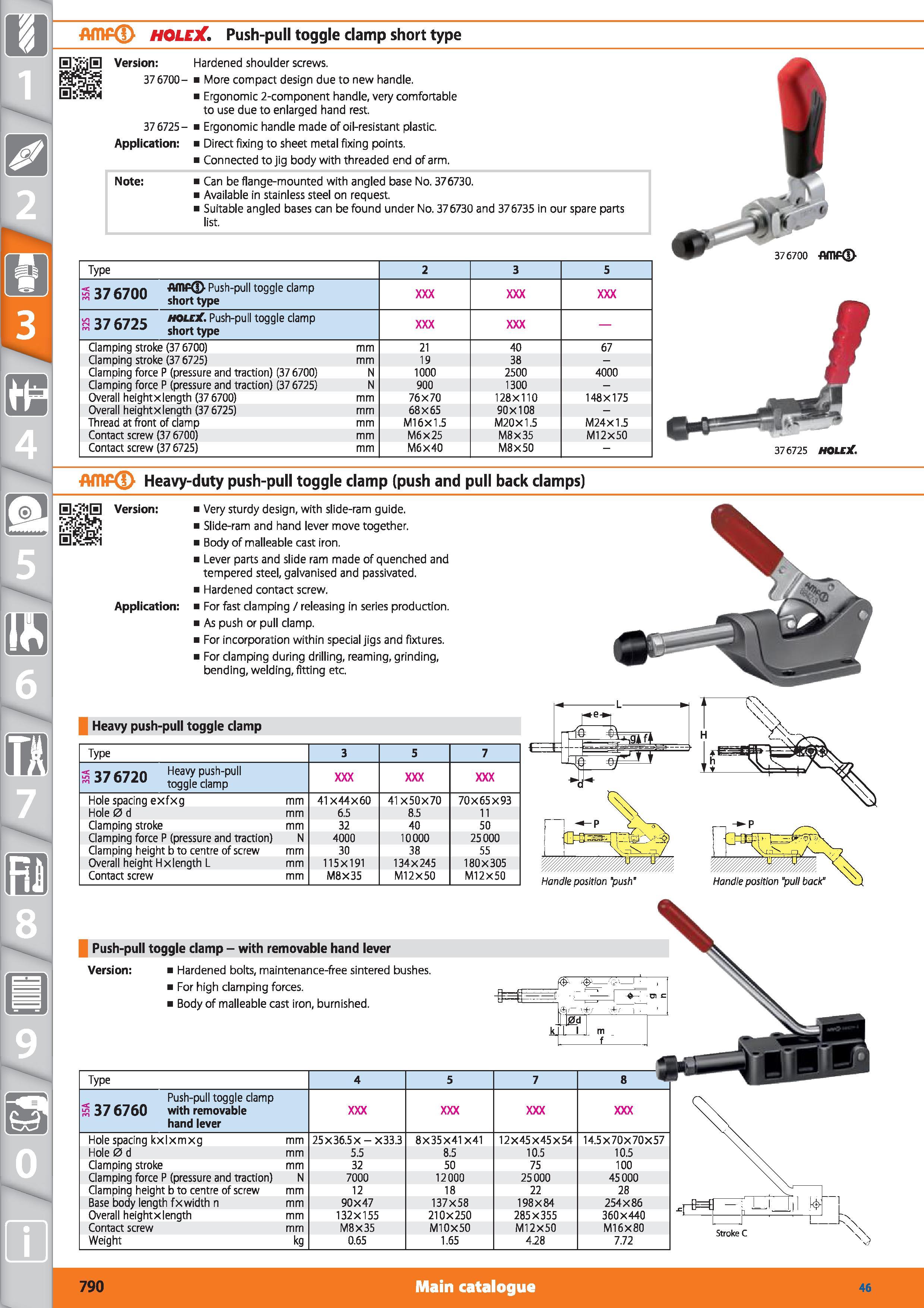

1 Amp(l> HOLEX Push-pull toggle damp short type Version 376700- 376725- Application Hardened shoulder screws. More compact design due to new handle. Ergonomic 2-component handle, very comfortable to use due to enlarged hand rest. Ergonomic handle made of oil-resistant plastic. Direct fixing to sheet metal fixing points. Connected to jig body with threaded end of arm. Note Can be flange-mounted with angled base No. 376730. Available in stainless steel on request. Suitable angled bases can be found under No. 376730 and 376735 in our spare parts list. Type 2 3 5 < oy f jnn fllllF Push-pull toggle clamp s a/ o/uu short type 7nr HOLEX Push-pull toggle clamp s3/0/" short type Clamping stroke (37 6700) mm 21 40 67 Clamping stroke (37 6725) mm 19 38 - Clamping force P (pressure and traction) (37 6700) N 1000 2500 4000 Clamping force P (pressure and traction) (37 6725) N 900 1300 - Overall heightx length (37 6700) mm 76x70 128x110 148x175 Overall heightx length (37 6725) mm 68X65 90X108 - Thread at front of clamp mm Ml 6x1.5 M20X1.5 M24X1.5 Contact screw (37 6700) mm M6x25 M8x35 M12X50 Contact screw (37 6725) mm M6X40 M8X50 - AfflP Heavy-duty push-pull toggle clamp (push and pull back clamps) Heavy push-pull toggle clamp Type 3 5 7 5 17 fi7 n HeavV Push-pull m3/D/ u toggle clamp Hole spacing exfxg mm 41X44X60 41X50X70 70X65X93 Hole 0 d mm 6.5 8.5 11 Clamping stroke mm 32 40 50 Clamping force P (pressure and traction) N 4000 10000 25000 Clamping height b to centre of screw mm 30 38 55 Overall height Hx length L mm 115X191 134x 245 180X305 Contact screw mm M8X35 M12X50 M12X50 Push-pull toggle clamp - with removable hand lever Version Hardened bolts, maintenance-free sintered bushes. For high clamping forces. Body of malleable cast iron, burnished. Type 4 5 7 8 Push-pull toggle clamp S 37 6760 with removable hand lever Hole spacing kxlxmxg mm 25X36.5X - X33.3 8x35x41x41 12 X45 X45 X 54 14.5X70X70X57 Hole 0 d mm 5.5 8.5 10.5 10.5 Clamping stroke mm 32 50 75 100 Clamping force P (pressure and traction) N 7000 12000 25000 45000 Clamping height b to centre of screw mm 12 18 22 28 Base body length fx width n mm 90X47 137X58 198X84 254X86 Overall heightx length mm 132x155 210x250 285x355 360x440 Contact screw mm M8X35 M10X50 M12X50 M16X80 Weight kg 0.65 1.65 4.28 7.72 Stroke C 790 Main catalogue Hoffmann Group 46 376700 flmPd> 376725 HOLEX Ei-'JijS Version r.Ti 03 Application i Very sturdy design, with slide-ram guide, i Slide-ram and hand lever move together, i Body of malleable cast iron, i Lever parts and slide ram made of quenched and tempered steel, galvanised and passivated, i Hardened contact screw, i For fast clamping / releasing in series production, i As push or pull clamp. i For incorporation within special jigs and fixtures, i For clamping during drilling, reaming, grinding, bending, welding, fitting etc.
