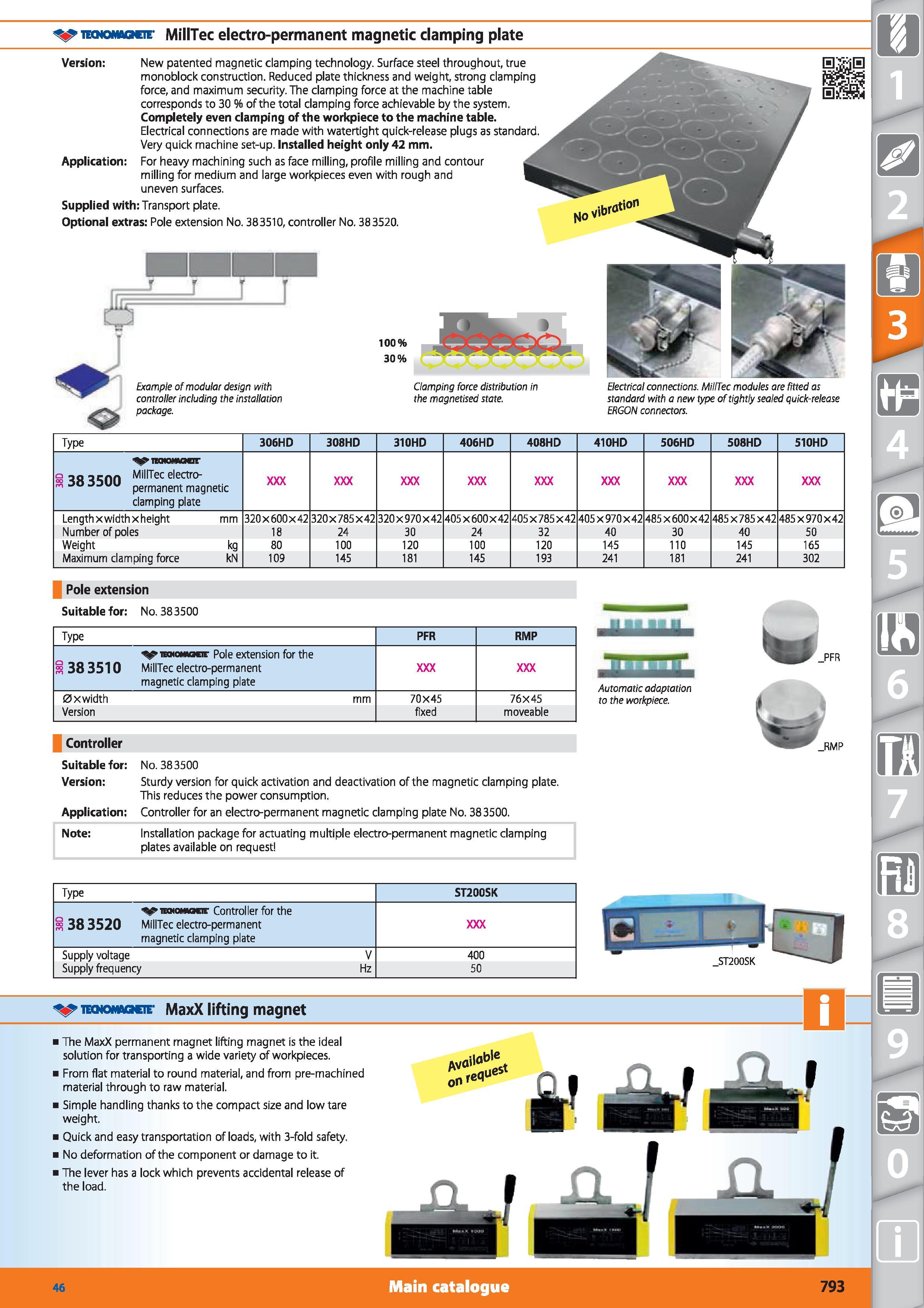

tknomaocie- MillTec electro-permanent magnetic clamping plate 1383500 MillTec electropermanent magnetic clamping plate 306HD 308HD 310HD 406HD 408HD 410HD 506HD 508HD 510HD Length x width x height Number of poles Weight Maximum clamping force 320x600x42 18 80 109 320x 785 x42 24 100 145 320x970x42 30 120 181 405 x 600x42 24 100 145 405 x 785 x42 32 120 193 405 x 970 x42 40 145 241 485 x 600x42 30 110 181 485 x 785 x42 40 145 241 485 x 970 x42 50 165 302 Electrical connections. MillTec modules are fitted as standard with a new type of tightly sealed quick-release ERGON connectors. iplfl Supplied with Transport plate. Optional extras Pole extension No. 383510, controller No. 383520. Clamping force distribution in the magnetised state. Version Application New patented magnetic clamping technology. Surface steel throughout, true monoblock construction. Reduced plate thickness and weight, strong clamping force, and maximum security. The clamping force at the machine table corresponds to 30 of the total clamping force achievable by the system. Compiletely even clamping of the workpiece to the machine table. Electrical connections are made with watertight quick-release plugs as standard. Very quick machine set-up. Installed height only 42 mm. For heavy machining such as face milling, profile milling and contour milling for medium and large workpieces even with rough and uneven surfaces. Example of modular design with controller including the installation package 100% 30% Pole extension Suitable for No. 38 3500 Type PFR RMP "383510 iewombeif Pole extension for the MillTec electro-permanent magnetic clamping plate 0xwidth mm 70X45 76X45 Version fixed moveable Controller Suitable for Version Application No. 383500 Sturdy version for quick activation and deactivation of the magnetic clamping plate. This reduces the power consumption. Controller for an electro-permanent magnetic clamping plate No. 383500. B i ri ti lT. PFR Automatic adaptation to the workpiece. .RMP Note Installation package for actuating multiple electro-permanent magnetic clamping plates available on request Type ST200SK piRNOMOEir Controller for the ” 38 3520 MillTec electro-permanent magnetic clamping plate Supply voltage V 400 Supply frequency Hz 50 ST200SK nonMAacir MaxX lifting magnet i The MaxX permanent magnet lifting magnet is the ideal solution for transporting a wide variety of workpieces, i From flat material to round material, and from pre-machined material through to raw material, i Simple handling thanks to the compact size and low tare weight. i Quick and easy transportation of loads, with 3-fold safety. i No deformation of the component or damage to it. i The lever has a lock which prevents accidental release of the load. 46 Main catalogue
