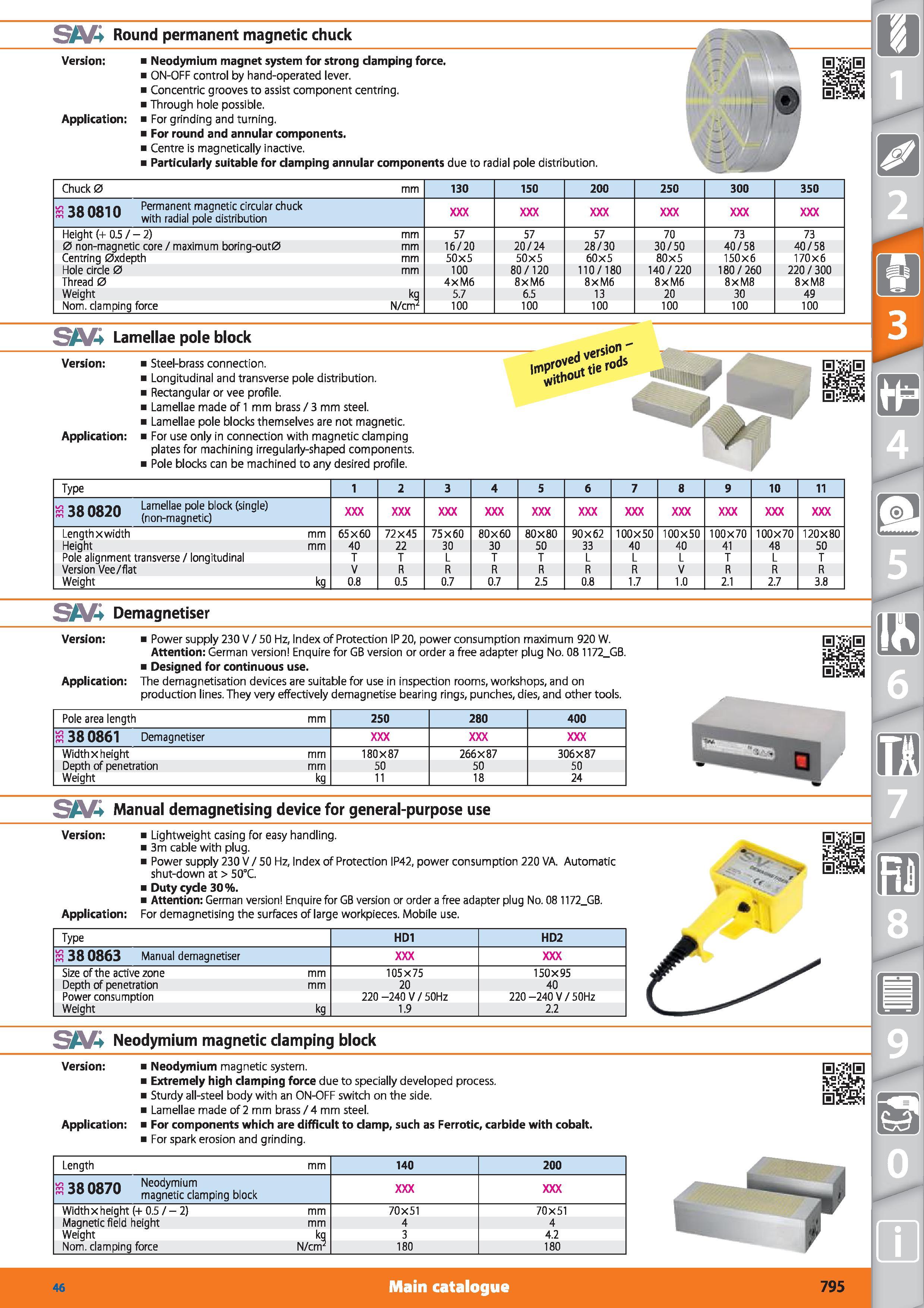

795 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.795

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 795 0795 ENG Lab2u

SA/4 Round permanent magnetic chuck Version Neodymium magnet system for strong damping force. ON-OFF control by hand-operated lever. Concentric grooves to assist component centring. Through hole possible. Application For grinding and turning. For round and annular components. Centre is magnetically inactive. Particularly suitable for clamping annular components due to radial pole distribution. J f \ \ 1 Mt V / i L A Chuck 0 mm 130 150 200 250 300 350 Ifl nfll n Permanent magnetic circular chuck m 30 Uo U w t 1 ra(jja p0 e distribution Height (+ 0.5 / - 2) mm 57 57 57 70 73 73 0 non-magnetic core / maximum boring-out0 mm 16/20 20/24 28/30 30/50 40/58 40/58 Centring 0xdepth mm 50x5 50x5 60x5 80x5 150x6 170x6 Hole circle 0 mm 100 80/120 110/180 140 / 220 180 / 260 220/300 Thread 0 4xM6 8xM6 8xM6 8xM6 8xM8 8xM8 Weight kg N/cni2 5.7 6.5 13 20 30 49 Nom. clamping force 100 100 100 100 100 100 Lamellae pole block Version Steel-brass connection. Longitudinal and transverse pole distribution. Rectangular or vee profile. Lamellae made of 1 mm brass / 3 mm steel. Lamellae pole blocks themselves are not magnetic. Application For use only in connection with magnetic clamping plates for machining irregularly-shaped components. Pole blocks can be machined to any desired profile. Type 1 2 3 4 5 6 7 8 9 10 11 53 no noon Lamellae pole block (single) "n 30 (non-magnetic) Length x width mm 65X60 72X45 75X60 80X60 80X80 90X62 100X50 100X50 100X70 100X70 120X80 Height mm 40 22 30 30 50 33 40 40 41 48 50 Pole alignment transverse / longitudinal T T L T T L L L T L T Version Vee/flat V R R R R R R V R R R Weight kg 0.8 0.5 0.7 0.7 2.5 0.8 1.7 1.0 2.1 2.7 3.8 SAA Demagnetiser Version Power supply 230 V / 50 Hz, Index of Protection IP 20, power consumption maximum 920 W. Attention German version Enquire for GB version or order a free adapter plug No. 081172_GB. Designed for continuous use. Application The demagnetisation devices are suitable for use in inspection rooms, workshops, and on production lines. They very effectively demagnetise bearing rings, punches, dies, and other tools. Pole area length mm 250 280 400 S 38 0861 Demagnetiser Widthxheight mm 180X87 266X 87 306X87 Depth of penetration mm 50 50 50 Weight kg 11 18 24 Manual demagnetising device for general-purpose use Version Lightweight casing for easy handling. 3m cable with plug. Power supply 230 V / 50 Hz, Index of Protection IP42, power consumption 220 VA. Automatic shut-down at > 50°C. Duty cycle 30%. Attention German version Enquire for GB version or order a free adapter plug No. 08 1172_GB. Application For demagnetising the surfaces of large workpieces. Mobile use. Type HD1 HD2 S 38 0863 Manual demagnetiser Size of the active zone mm 105x75 150x95 Depth of penetration mm 20 40 Power consumption 220 -240 V / 50Hz 220 -240 V / 50Hz Weight kg 1.9 2.2 SJV4 Neodymium magnetic clamping block Version Application i Neodymium magnetic system. i Extremely high damping force due to specially developed process, i Sturdy all-steel body with an ON-OFF switch on the side, i Lamellae made of 2 mm brass/4 mm steel. i For components which are difficult to damp, such as Ferrotic, carbide with cobalt. i For spark erosion and grinding. Length mm 140 200 S 38 0870 Neodymium magnetic clamping block Widthx height (+ 0.5 / - 2) mm 70x51 70x51 Magnetic field height mm 4 4 Weight k9 N/cnr 3 4.2 Nom. damping force 180 180 m Main catalogue Hoffmann Group 46 795
