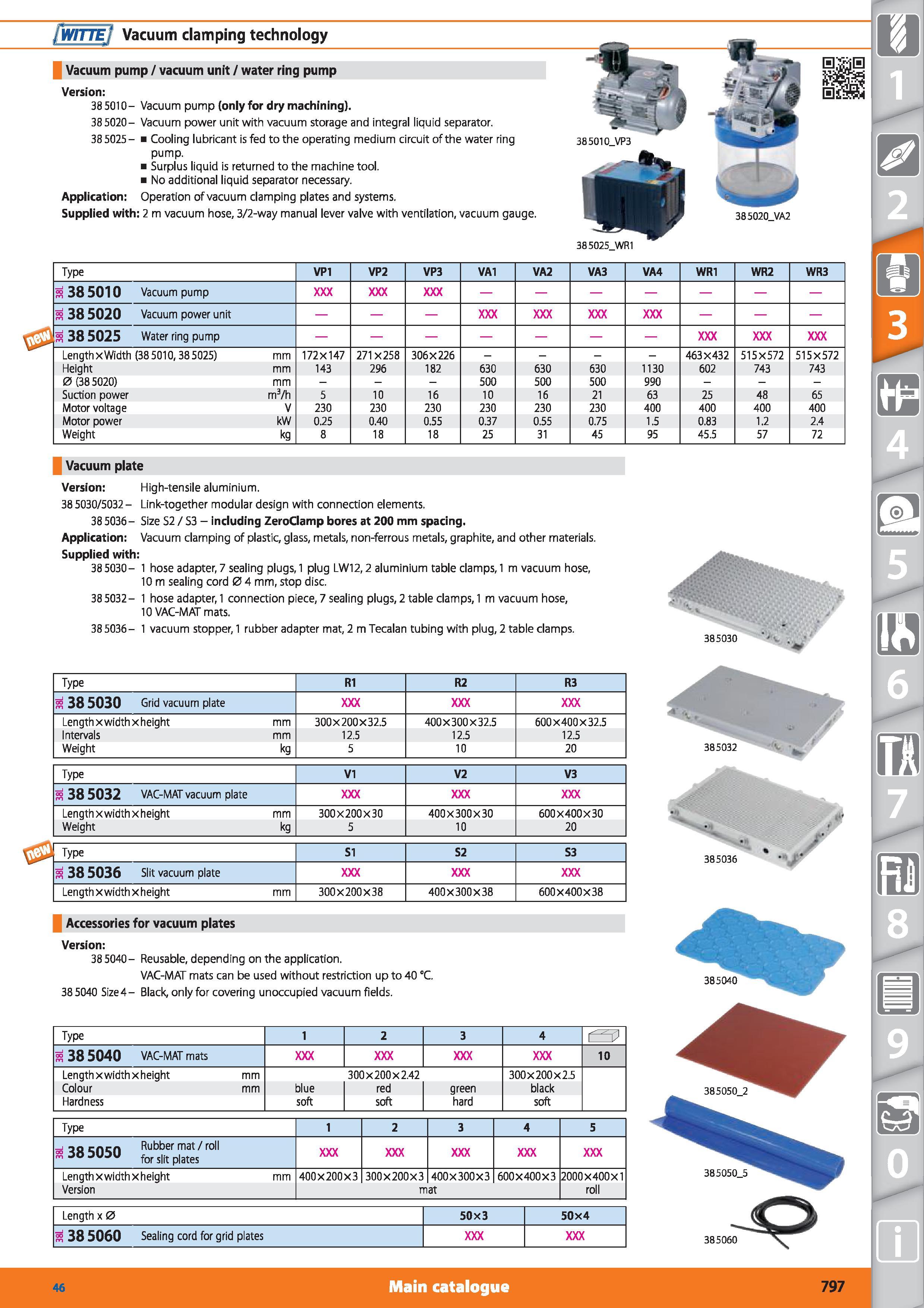

WITTE j Vacuum clamping technology Vacuum pump / vacuum unit / water ring pump Version 38 5010- Vacuum pump (only for dry machining). 38 5020- Vacuum power unit with vacuum storage and integral liquid separator. 38 5025- Cooling lubricant is fed to the operating medium circuit of the water ring pump. Surplus liquid is returned to the machine tool. No additional liquid separator necessary. Application Operation of vacuum clamping plates and systems. Supplied with 2 m vacuum hose, 3/2-way manual lever valve with ventilation, vacuum gauge. Type VP1 VP2 VP3 VA1 VA2 VA3 VA4 WR1 WR2 WR3 385010 Vacuum pump 3 38 5020 Vacuum power unit 3 38 5025 Water ring pump LengthxWidth (385010,385025) mm 172X147 271X258 306 X 226 463 X432 515X572 515X572 Height mm 143 296 182 630 630 630 1130 602 743 743 0(385020) mm - 500 500 500 990 - Suction power m3/h 5 10 16 10 16 21 63 25 48 65 Motor voltage V 230 230 230 230 230 230 400 400 400 400 Motor power kW 0.25 0.40 0.55 0.37 0.55 0.75 1.5 0.83 1.2 2.4 Weight kg 8 18 18 25 31 45 95 45.5 57 72 Vacuum plate Version High-tensile aluminium. 38 5030/5032 - Link-together modular design with connection elements. 38 5036- Size S2 / S3 - including ZeroClamp bores at 200 mm spacing. Application Vacuum clamping of plastic, glass, metals, non-ferrous metals, graphite, and other materials. Supplied with 38 5030- 1 hose adapter, 7 sealing plugs, 1 plug LW12,2 aluminium table clamps, 1 m vacuum hose, 10 m sealing cord 0 4 mm, stop disc. 38 5032- 1 hose adapter, 1 connection piece, 7 sealing plugs, 2 table clamps, 1 m vacuum hose, 10 VAC-MAT mats. 38 5036- 1 vacuum stopper, 1 rubber adapter mat, 2 m Tecalan tubing with plug, 2 table clamps. 3. Type R1 R2 R3 8 38 5030 Grid vacuum plate Length x width x height mm 300x200x32.5 400x 300 x 32.5 600 x400 x 32.5 Intervals mm 12.5 12.5 12.5 Weight kg 5 10 20 Type VI V2 V3 8 38 5032 VAC-MAT vacuum plate Length x width x height mm 300X200X30 400X300X30 600 X400X30 Weight kg 5 10 20 Type SI S2 S3 ” 38 5036 Slit vacuum plate Length x width x height mm 300X200X38 400x300x38 600 X400X38 Accessories for vacuum plates Version 38 5040- Reusable, depending on the application. VAC-MAT mats can be used without restriction up to 40 °C. 385040 Size 4- Black, only for covering unoccupied vacuum fields. Type 1 2 3 4 8 38 5040 VAC-MAT mats 10 Length x width x height mm 300x200x2.42 300x200x2.5 Colour mm blue red green black Hardness soft soft hard soft Type 1 2 3 4 5 -j no men Rubber mat / roll ”385050 fors itp ates Length x width x height mm 400x200x3 300X200X3 400x300x3 600X400X3 2000X400X1 Version mat roll Length x 0 50x3 50x4 8 38 5060 Sealing cord for grid plates 385036 385060 46 385025_WR1 385020_VA2 Main catalogue
