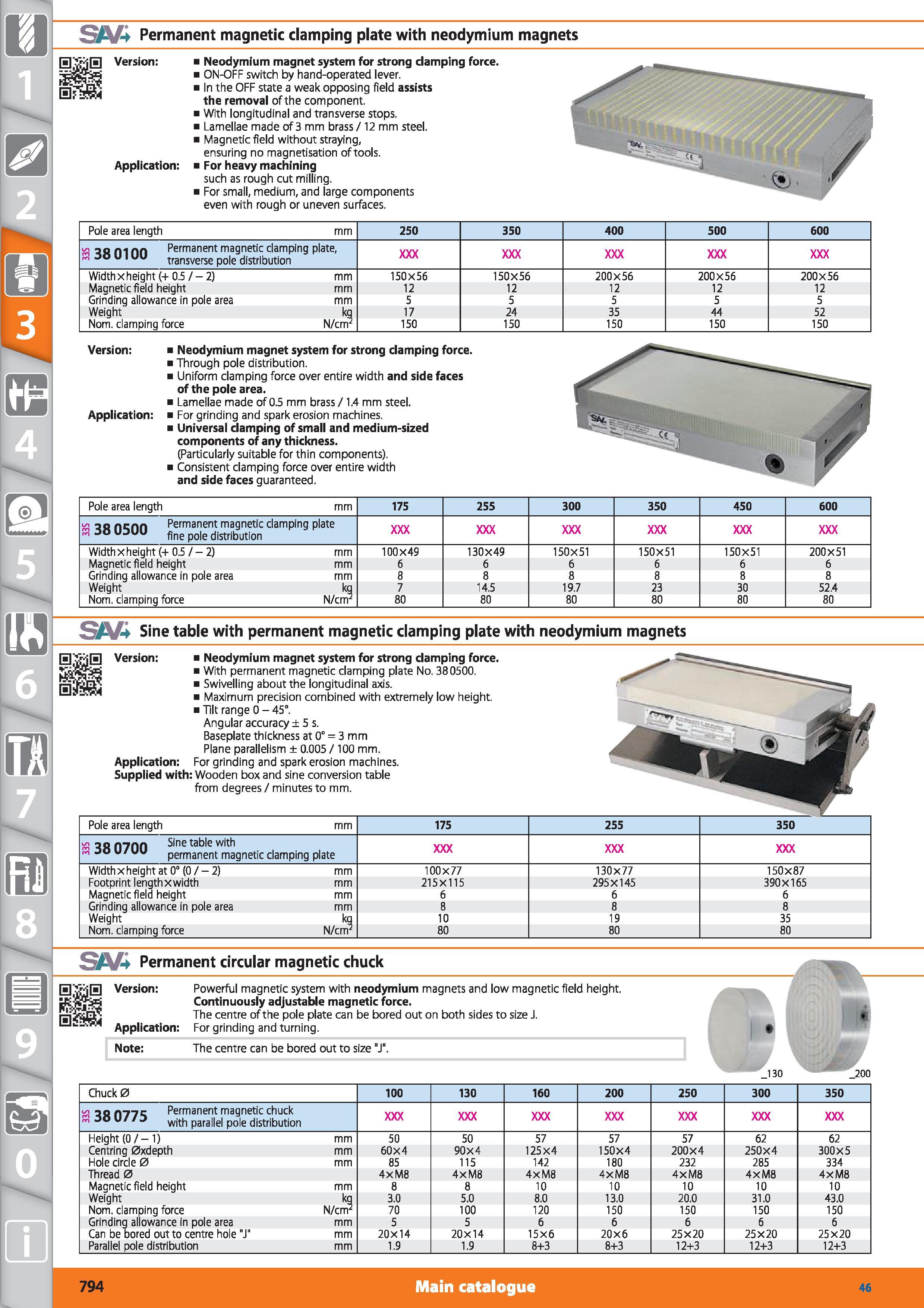

SiV4 Permanent magnetic clamping plate with neodymium magnets Version Neodymium magnet system for strong damping force. ON-OFF switch by hand-operated lever. In the OFF state a weak opposing field assists the removal of the component. With longitudinal and transverse stops. Lamellae made of 3 mm brass / 12 mm steel. Magnetic field without straying, ensuring no magnetisation of tools. Application For heavy machining such as rough cut milling. For small, medium, and large components even with rough or uneven surfaces. Pole area length mm 250 350 400 500 600 fl m nn Permanent magnetic clamping plate, m transverse pole distribution Widthxheight (+ 0.51-2) mm 150X56 150X56 200X56 200X56 200X56 Magnetic field height mm 12 12 12 12 12 Grinding allowance in pole area mm 5 5 5 5 5 Weight kg 17 24 35 44 52 Nom. clamping force N/crrr 150 150 150 150 150 Version Neodymium magnet system for strong clamping force. Through pole distribution. Uniform clamping force over entire width and side faces of the pole area. Lamellae made of 0.5 mm brass /1.4 mm steel. Application For grinding and spark erosion machines. Universal clamping of small and medium-sized components of any thickness. (Particularly suitable for thin components). Consistent clamping force over entire width and side faces guaranteed. Pole area length mm 175 255 300 350 450 600 SS an ncnn Permanent magnetic clamping plate 30 U3UU flne p0 e distribution Widthxheight (+ 0.51-2) mm 100X49 130X49 150X51 150X51 150X51 200X51 Magnetic field height mm 6 6 6 6 6 6 Grinding allowance in pole area mm 8 8 8 8 8 8 Weight kg N/cnrr 7 14.5 19.7 23 30 52.4 Nom. clamping force 80 80 80 80 80 80 SJW Sine table with permanent magnetic clamping plate with neodymium magnets 0 Version Neodymium magnet system for strong clamping force. With permanent magnetic clamping plate No. 38 0500. Swivelling about the longitudinal axis. Maximum precision combined with extremely low height. Tilt range 0 - 45°. Angular accuracy ± 5 s. Baseplate thickness at 0° 3 mm Plane parallelism ± 0.005 / 100 mm. Application For grinding and spark erosion machines. Supplied with Wooden box and sine conversion table from degrees / minutes to mm. Pole area length mm 175 255 350 38 0700 Sine table with m 30 u/uu permanent magnetic clamping plate Width x height at 0° (0 / - 2) mm 100x77 130x77 150x87 Footprint lengthxwidth mm 215X115 295X145 390X165 Magnetic field height mm 6 6 6 Grinding allowance in pole area mm 8 8 8 Weight kg N/cnr 10 19 35 Nom. clamping force 80 80 80 SJNA Permanent circular magnetic chuck 0 Version Powerful magnetic system with neodymium magnets and low magnetic field height. Continuously adjustable magnetic force. The centre of the pole plate can be bored out on both sides to size J. Application For grinding and turning. Note The centre can be bored out to size "J". j 30 w _200 Chuck 0 100 130 160 200 250 300 350 S M077S Permanent magnetic chuck m 30 U//3 para e p0 e distribution Height (0/- 1) mm 50 50 57 57 57 62 62 Centring 0xdepth mm 60X4 90X4 125X4 150X4 200X4 250X4 300X5 Hole circle 0 mm 85 115 142 180 232 285 334 Thread 0 4xM8 4xM8 4xM8 4xM8 4xM8 4xM8 4xM8 Magnetic field height mm 8 8 10 10 10 10 10 Weight kq N/crrr 3.0 5.0 8.0 13.0 20.0 31.0 43.0 Nom. clamping force 70 100 120 150 150 150 150 Grinding allowance in pole area mm 5 5 6 6 6 6 6 Can be bored out to centre hole "J" mm 20x14 20x14 15x6 20x6 25x20 25x20 25x20 Parallel pole distribution mm 1.9 1.9 8+3 8+3 12+3 12+3 12+3 794 Main catalogue Hoffmann Group 46
