1513 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1513

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1513 1513 ENG Lab2u

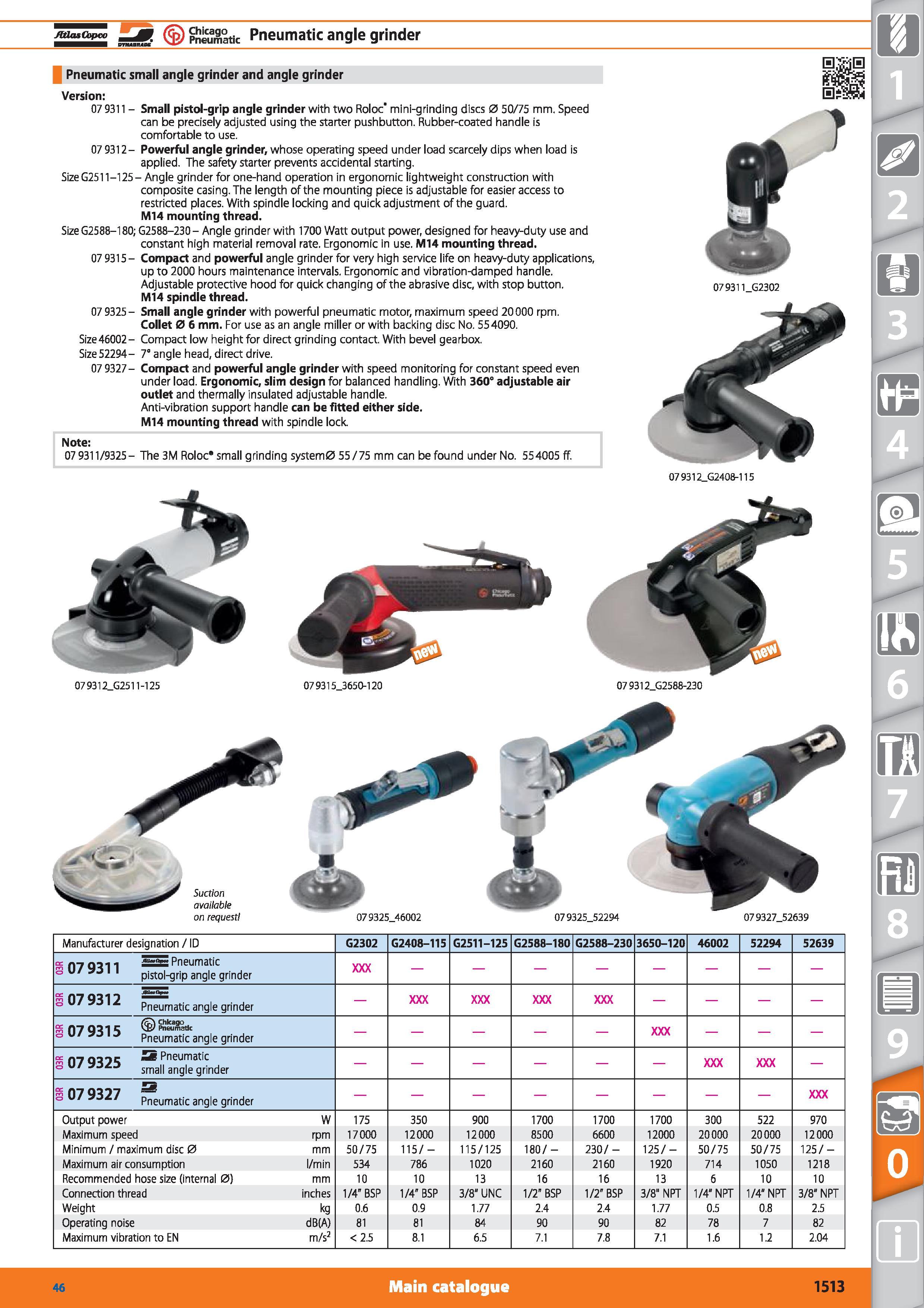

-M Sfeic Pneumatic angle grinder Pneumatic small angle grinder and angle grinder Version 07 9311 - Small pistol-grip angle grinder with two Roloc' mini-grinding discs 0 50/75 mm. Speed can be precisely adjusted using the starter pushbutton. Rubber-coated handle is comfortable to use. 07 9312- Powerful angle grinder, whose operating speed under load scarcely dips when load is applied. The safety starter prevents accidental starting. Size G2511-125- Angle grinder for one-hand operation in ergonomic lightweight construction with composite casing. The length of the mounting piece is adjustable for easier access to restricted places. With spindle locking and quick adjustment of the guard. M14 mounting thread. Size G2588 180; G2588-230- Angle grinder with 1700 Watt output power, designed for heavy-duty use and constant high material removal rate. Ergonomic in use. M14 mounting thread. 07 9315- Compact and powerful angle grinder for very high service life on heavy-duty applications, up to 2000 hours maintenance intervals. Ergonomic and vibration-damped handle. Adjustable protective hood for quick changing of the abrasive disc, with stop button. M14 spindle thread. 07 9325- Small angle grinder with powerful pneumatic motor, maximum speed 20000 rpm. Collet 0 6 mm. For use as an angle miller or with backing disc No. 554090. Size46002- Compact low height for direct grinding contact. With bevel gearbox. Size 52294- 7° angle head, direct drive. 07 9327 - Compact and powerful angle grinder with speed monitoring for constant speed even under load. Ergonomic, slim design for balanced handling. With 360° adjustable air outlet and thermally insulated adjustable handle. Anti-vibration support handle can be fitted either side. M14 mounting thread with spindle lock Note 07 9311/9325- The 3M Roloc small grinding system0 55/75 mm can be found under No. 554005 ff. on request 07 9325_46002 07 9325_52294 07 9327_52639 Manufacturer designation / ID G2302 G2408-115 G2511-125 G2588-180 G2588-230 3650-120 46002 52294 52639 oc q,1 -j Pneumatic 3 pistol-grip angle grinder “07 9312 SsSsi Pneumatic angle grinder “079315 SSffidc Pneumatic angle grinder 5 07 Pneumatic 3 U/ sma ang g grjncjer 07Q397 o u/ 73Z/ Pneumatic angle grinder Output power W 175 350 900 1700 1700 1700 300 522 970 Maximum speed rpm 17000 12000 12000 8500 6600 12000 20000 20000 12000 Minimum / maximum disc 0 mm 50/75 115/ 115/125 180/ 230/- 125/ 50/75 50/75 125/ Maximum air consumption l/min 534 786 1020 2160 2160 1920 714 1050 1218 Recommended hose size (internal 0) mm 10 10 13 16 16 13 6 10 10 Connection thread inches 1/4" BSP 1/4" BSP 3/8" UNC 1/2” BSP 1/2" BSP 3/8" NPT 1/4" NPT 1/4" NPT 3/8" NPT Weight kg 0.6 0.9 1.77 2.4 2.4 1.77 0.5 0.8 2.5 Operating noise dB(A) 81 81 84 90 90 82 78 7 82 Maximum vibration to EN m/s2 <2.5 8.1 6.5 7.1 7.8 7.1 1.6 1.2 2.04 Main catalogue Hoffmann Group 46 1513
