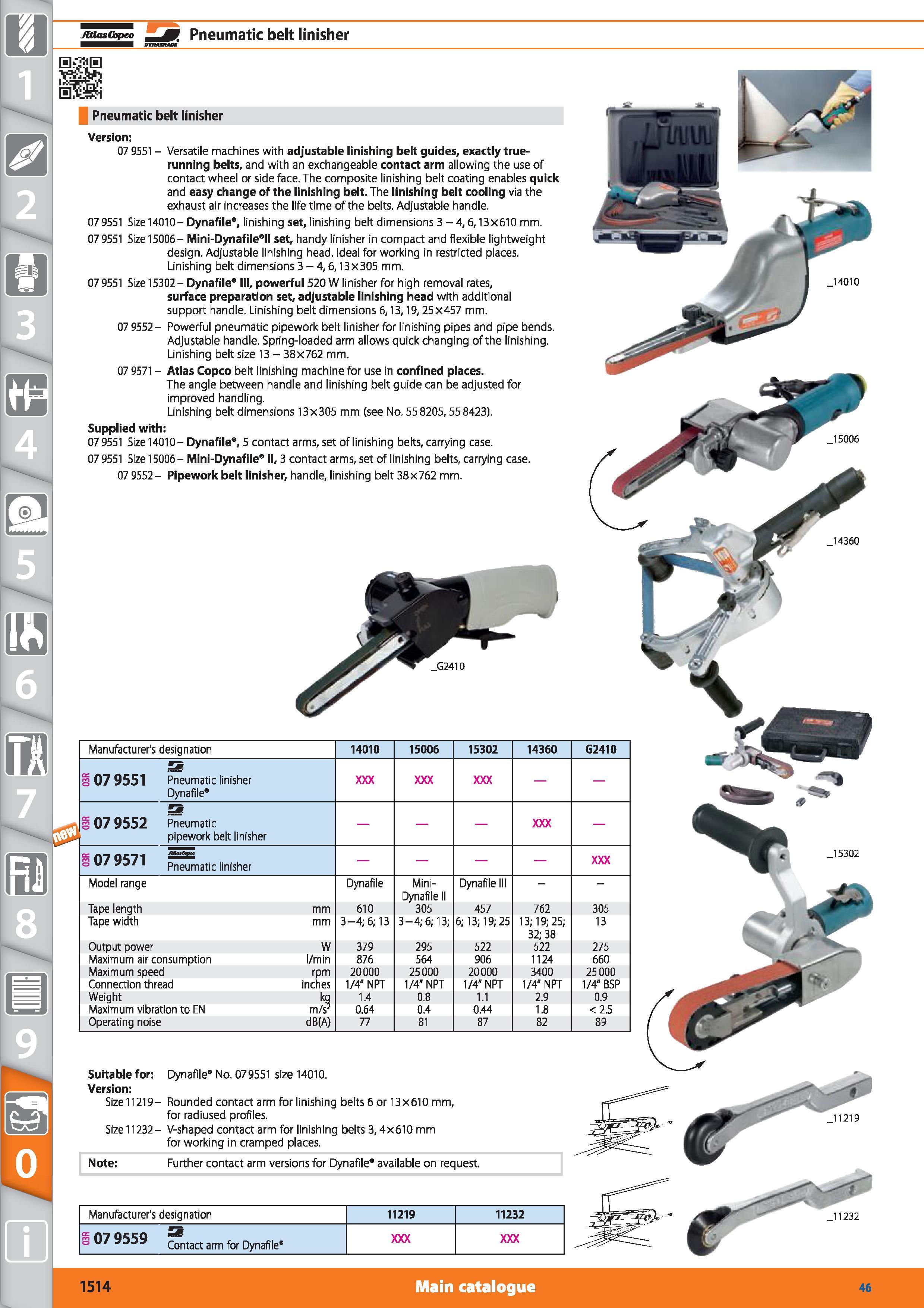

1 MUasCopco Pneumatic belt linisher Pneumatic belt linisher Version 07 9551 - Versatile machines with adjustable linishing belt guides, exactly true- running belts, and with an exchangeable contact arm allowing the use of contact wheel or side face. The composite linishing belt coating enables quick and easy change of the linishing belt. The linishing belt cooling via the exhaust air increases the life time of the belts. Adjustable handle. 07 9551 Size 14010- Dynafile , linishing set, linishing belt dimensions 3 - 4,6,13x610 mm. 079551 Size 15006- Mini-Dynafile ll set, handy linisher in compact and flexible lightweight design. Adjustable linishing head. Ideal for working in restricted places. Linishing belt dimensions 3-4,6,13x305 mm. 07 9551 Size 15302- Dynafile III, powerful 520 W linisher for high removal rates, surface preparation set, adjustable linishing head with additional support handle. Linishing belt dimensions 6,13,19,25x457 mm. 07 9552- Powerful pneumatic pipework belt linisher for linishing pipes and pipe bends. Adjustable handle. Spring-loaded arm allows quick changing of the linishing. Linishing belt size 13 - 38x762 mm. 07 9571 - Atlas Copco belt linishing machine for use in confined places. The angle between handle and linishing belt guide can be adjusted for improved handling. Linishing belt dimensions 13x305 mm (see No. 55 8205,558423). Supplied with 07 9551 Size 14010- Dynafile , 5 contact arms, set of linishing belts, carrying case. 07 9551 Size 15006- Mini-Dynafile II, 3 contact arms, set of linishing belts, carrying case. 07 9552- Pipework belt linisher, handle, linishing belt 38 x 762 mm. Manufacturer's designation 14010 15006 15302 14360 G2410 15 S 07 9551 Pneumatic linisher Dynafile 55 S 07 9552 Pneumatic pipework belt linisher s 079571 Saticlinisher Model range Dynafile Mini-Dynafile II Dynafile III Tape length mm 610 305 457 762 305 Tape width mm 3-4; 6; 13 3-4; 6; 13; 6; 13; 19; 25 13; 19; 25; 32; 38 13 Output power W 379 295 522 522 275 Maximum air consumption l/min 876 564 906 1124 660 Maximum speed rpm 20000 25000 20000 3400 25000 Connection thread inches 1/4" NPT 1/4" NPT 1/4" NPT 1/4" NPT 1/4" BSP Weight kg m/s5 1.4 0.8 1.1 2.9 0.9 Maximum vibration to EN 0.64 0.4 0.44 1.8 <2.5 Operating noise dB(A) 77 81 87 82 89 Suitable for Dynafile” No. 079551 size 14010. Version Size 11219- Rounded contact arm for linishing belts 6 or 13x610 mm, for radiused profiles. Size 11232- V-shaped contact arm for linishing belts 3,4x610 mm for working in cramped places. Note Further contact arm versions for Dynafile" available on request. Manufacturer's designation 11219 11232 S 07 9559 contact arm for Dynafile” 1514 Main catalogue Hoffmann Group 46
