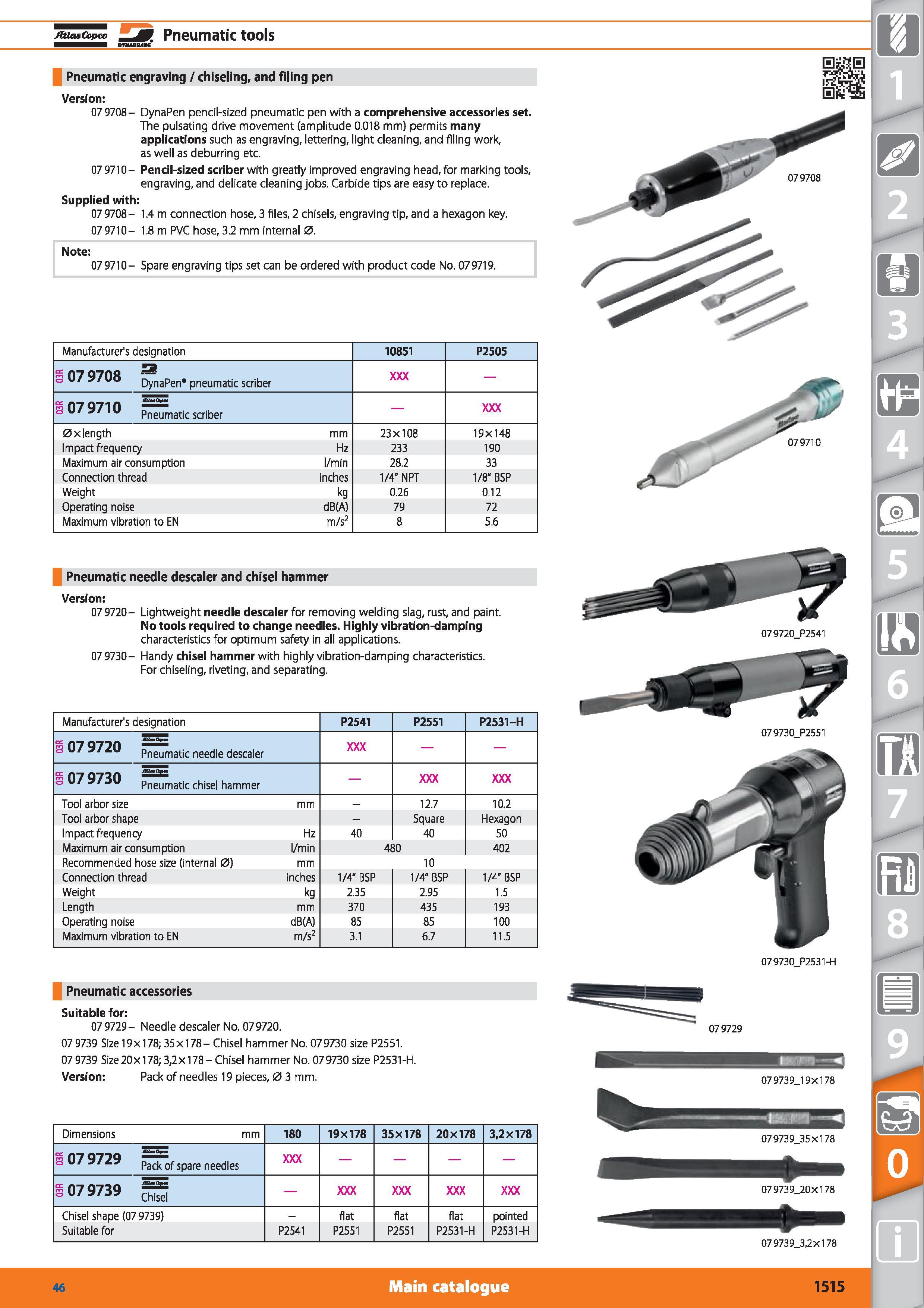

Jt&asCopco Pneumatic tools Pneumatic engraving / chiseling, and filing pen Version 07 9708- DynaPen pencil-sized pneumatic pen with a comprehensive accessories set. The pulsating drive movement (amplitude 0.018 mm) permits many applications such as engraving, lettering, light cleaning, and filing work, as well as deburring etc. 07 9710- Pencil-sized scriber with greatly improved engraving head, for marking tools, engraving, and delicate cleaning jobs. Carbide tips are easy to replace. Supplied with 07 9708- 1.4 m connection hose, 3 files, 2 chisels, engraving tip, and a hexagon key. 079710- 1.8 m PVC hose, 3.2 mm internal 0. Note 07 9710- Spare engraving tips set can be ordered with product code No. 079719. Manufacturer's designation 10851 P2505 07 Q7flH DynaPen” pneumatic scriber S 07 9710 pneumatic scriber 0 xlength mm 23x108 19x148 Impact frequency Hz 233 190 Maximum air consumption l/min 28.2 33 Connection thread inches 1/4" NPT 1/8"BSP Weight kg 0.26 0.12 Operating noise dB(A) 79 72 Maximum vibration to EN m/s2 8 5.6 Pneumatic needle descaler and chisel hammer Version 07 9720- Lightweight needle descaler for removing welding slag, rust, and paint. No tools required to change needles. Highly vibration-damping characteristics for optimum safety in all applications. 07 9730- Handy chisel hammer with highly vibration-damping characteristics. For chiseling, riveting, and separating. Manufacturer's designation P2541 P2551 P2531-H S 07 9720 pneumatic needle descaler DC A 1 QTn rt hSS Pneumatic chisel hammer Tool arbor size mm - 12.7 10.2 Tool arbor shape - Square Hexagon Impact frequency Hz 40 40 50 Maximum air consumption l/min 480 402 Recommended hose size (internal 0) mm 10 Connection thread inches 1/4"BSP 1/4" BSP 1/4" BSP Weight kg 2.35 2.95 1.5 Length mm 370 435 193 Operating noise dB(A) 85 85 100 Maximum vibration to EN m/s2 3.1 6.7 11.5 Pneumatic accessories Suitable for 07 9729- Needle descaler No. 079720. 07 9739 Size 19x178; 35x178- Chisel hammer No. 079730 size P2551. 07 9739 Size 20x178; 3,2x178- Chisel hammer No. 079730 size P2531-H. Version Pack of need les 19 pieces, 0 3mm. Dimensions mm 180 19x178 35x178 20x178 3,2x178 S 07 9729 pac < 0f Spare needles 07 9739 S Chisel shape (07 9739) - flat flat flat pointed Suitable for P2541 P2551 P2551 P2531-H P2531-H Main catalogue Hoffmann Group 46 079710 079739 35x178 07 9739_20x178 07 9739_3,2x178 079730_P2531-H 07 9739_19x178 07 9720_P2541 079730_P2551
