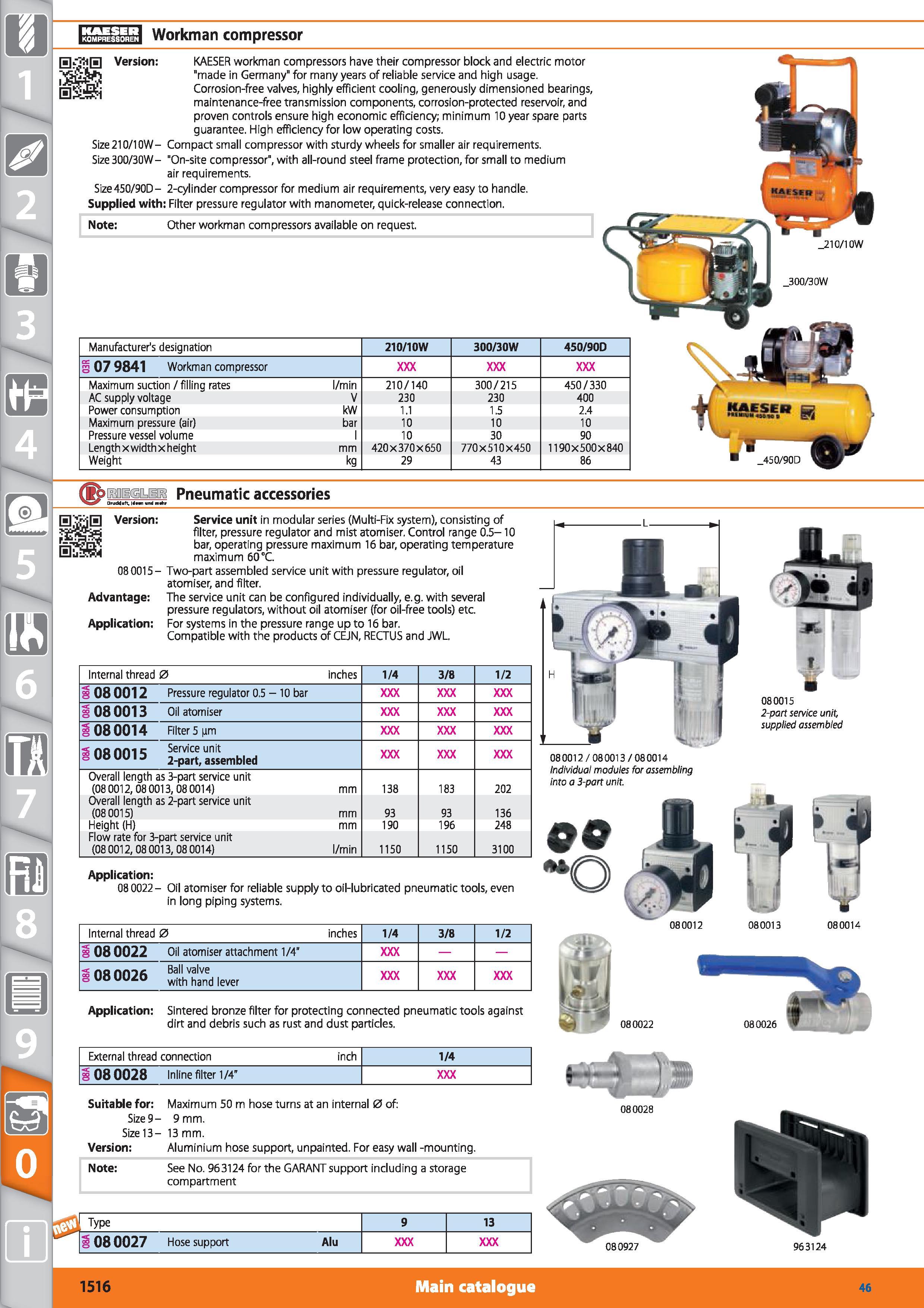

1 lii.'iLld.ijij.'l Workman compressor S jS Version KAESER workman compressors have their compressor block and electric motor "made in Germany" for many years of reliable service and high usage. Corrosion-free valves, highly efficient cooling, generously dimensioned bearings, maintenance-free transmission components, corrosion-protected reservoir, and proven controls ensure high economic efficiency; minimum 10 year spare parts guarantee. High efficiency for low operating costs. Size 210/10W- Compact small compressor with sturdy wheels for smaller air requirements. Size300/30W- "On-site compressor", with all-round steel frame protection, for small to medium air requirements. Size450/90D- 2-cylinder compressor for medium air requirements, very easy to handle. Supplied with Filter pressure regulator with manometer, quick-release connection. Note Other workman compressors available on request. Manufacturer's designation 210/10W 300/30W 450/90D 3 07 9841 Workman compressor Maximum suction / filling rates l/min 210/140 300/215 450/330 AC supply voltage V 230 230 400 Power consumption kW 1.1 1.5 2.4 Maximum pressure (air) bar 10 10 10 Pressure vessel volume 1 10 30 90 Length x widthx height mm 420 x 370 x 650 770x510x450 1190x500x 840 Weight kg 29 43 86 Pneumatic accessories Version IU rcil Service unit in modular series (Multi-Fix system), consisting of filter, pressure regulator and mist atomiser. Control range 0.5-10 bar, operating pressure maximum 16 bar, operating temperature maximum 60°C. 080015- Two-part assembled service unit with pressure regulator, oil atomiser, and filter. Advantage The service unit can be configured individually, e.g. with several pressure regulators, without oil atomiser (for oil-free tools) etc. Application For systems in the pressure range up to 16 bar. Compatible with the products of CEJN, RECTUS and JWL. Internal thread 0 inches 1/4 3/8 1/2 108 0012 Pressure regulator 0.5 - 10 bar 1080013 Oil atomiser 08 0014 Filter 5 nm 108 0015 Service unit 2-part, assembled Overall length as 3-part service unit (080012,080013,080014) mm 138 183 202 Overall length as 2-part service unit (080015) mm 93 93 136 Height (H) mm 190 196 248 Flow rate for 3-part service unit (080012,080013,080014) l/min 1150 1150 3100 Application 08 0022 - Oil atomiser for reliable supply to oil-lubricated pneumatic tools, even in long piping systems. Internal thread 0 inches 1/4 3/8 1/2 108 0022 Oil atomiser attachment 1/4" 1080026 Ball valve with hand lever I 080015 2-part service unit, supplied assembled 080012 / 080013 / 080014 Individual modules for assembling into a 3-part unit. OO U 080012 080013 m 080014 Application Sintered bronze filter for protecting connected pneumatic tools against dirt and debris such as rust and dust particles. External thread connection inch 1/4 3 08 0028 Inline filter 1/4” Suitable for Maximum 50 m hose turns at an internal 0 of Size 9- 9 mm. Size 13- 13 mm. Version Aluminium hose support, unpainted. For easy wall -mounting. Note See No. 963124 for the GARANT support including a storage compartment Type 9 13 08 0027 Hose support Alu 080927 963124 1516 Main catalogue Hoffmann Group 46
