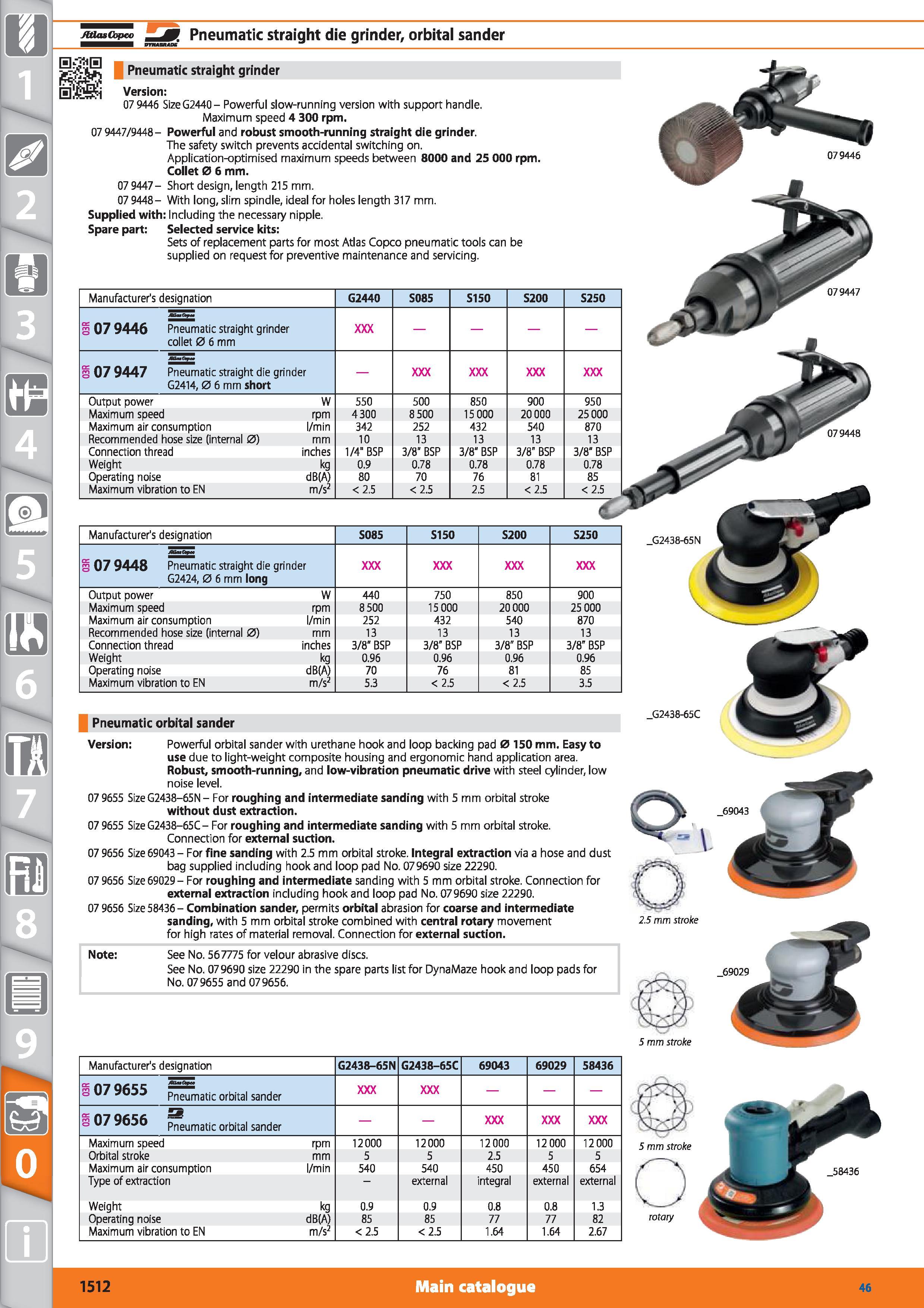

MUasCopco Pneumatic straight die grinder, orbital sander Pneumatic straight grinder Version 07 9446 SizeG2440- Powerful slow-running version with support handle. Maximum speed 4 300 rpm. 07 9447/9448- Powerful and robust smooth-running straight die grinder. The safety switch prevents accidental switching on. Application-optimised maximum speeds between 8000 and 25 000 rpm. Collet 0 6 mm. 07 9447- Short design, length 215 mm. 07 9448- With long, slim spindle, ideal for holes length 317 mm. Supplied with Including the necessary nipple. Spare part Selected service kits Sets of replacement parts for most Atlas Copco pneumatic tools can be supplied on request for preventive maintenance and servicing. Manufacturer's designation G2440 S085 S150 S200 S250 BOail 3 07 9446 Pneumatic straight grinder collet 0 6 mm S 07 9447 Pneumatic straight die grinder G2414,0 6 mm short Output power W 550 500 850 900 950 Maximum speed rpm 4300 8500 15 000 20000 25000 Maximum air consumption l/min 342 252 432 540 870 Recommended hose size (internal 0) mm 10 13 13 13 13 Connection thread inches 1/4" BSP 3/8" BSP 3/8” BSP 3/8" BSP 3/8” BSP Weight kg 0.9 0.78 0.78 0.78 0.78 Operating noise dB(A) 80 70 76 81 85 Maximum vibration to EN m/s2 <2.5 <2.5 2.5 <2.5 <2.5 Manufacturer's designation S085 S150 S200 S250 'fflrrrffrirr S 07 9448 Pneumatic straight die grinder G2424, 0 6 mm long Output power W 440 750 850 900 Maximum speed rpm 8500 15 000 20000 25 000 Maximum air consumption l/min 252 432 540 870 Recommended hose size (internal 0) mm 13 13 13 13 Connection thread inches 3/8” BSP 3/8" BSP 3/8" BSP 3/8" BSP Weight kg 0.96 0.96 0.96 0.96 Operating noise dB(A) 70 76 81 85 Maximum vibration to EN m/s2 5.3 < 2.5 < 2.5 3.5 Pneumatic orbital sander Version Powerful orbital sander with urethane hook and loop backing pad 0 150 mm. Easy to use due to light-weight composite housing and ergonomic hand application area. Robust, smooth-running, and low-vibration pneumatic drive with steel cylinder, low noise level. 07 9655 Size G2438-65N - For roughing and intermediate sanding with 5 mm orbital stroke without dust extraction. 07 9655 SizeG2438-65C- For roughing and intermediate sanding with 5 mm orbital stroke. Connection for external suction. 07 9656 Size 69043 - For fine sanding with 2.5 mm orbital stroke. Integral extraction via a hose and dust bag supplied including hook and loop pad No. 079690 size 22290. 07 9656 Size69029- For roughing and intermediate sanding with 5 mm orbital stroke. Connection for external extraction including hook and loop pad No. 079690 size 22290. 07 9656 Size 58436 - Combination sander, permits orbital abrasion for coarse and intermediate sanding, with 5 mm orbital stroke combined with central rotary movement for high rates of material removal. Connection for external suction. Note See No. 567775 for velour abrasive discs. See No. 079690 size 22290 in the spare parts list for DynaMaze hook and loop pads for No. 079655 and 079656. J32438-65C _69043 2.5 mm stroke _69029 Manufacturer's designation G2438-65N G2438-65C 69043 69029 58436 S 07 9655 pneumatic orbital sander S 07 9656 pneumatic orbital sander Maximum speed rpm 12000 12000 12000 12 000 12000 Orbital stroke mm 5 5 2.5 5 5 Maximum air consumption l/min 540 540 450 450 654 Type of extraction external integral external external Weight kg 0.9 0.9 0.8 0.8 1.3 Operating noise dB(A) 85 85 77 77 82 Maximum vibration to EN m/s2 <2.5 <2.5 1.64 1.64 2.67 rotary 1512 Main catalogue Hoffmann Group 46
