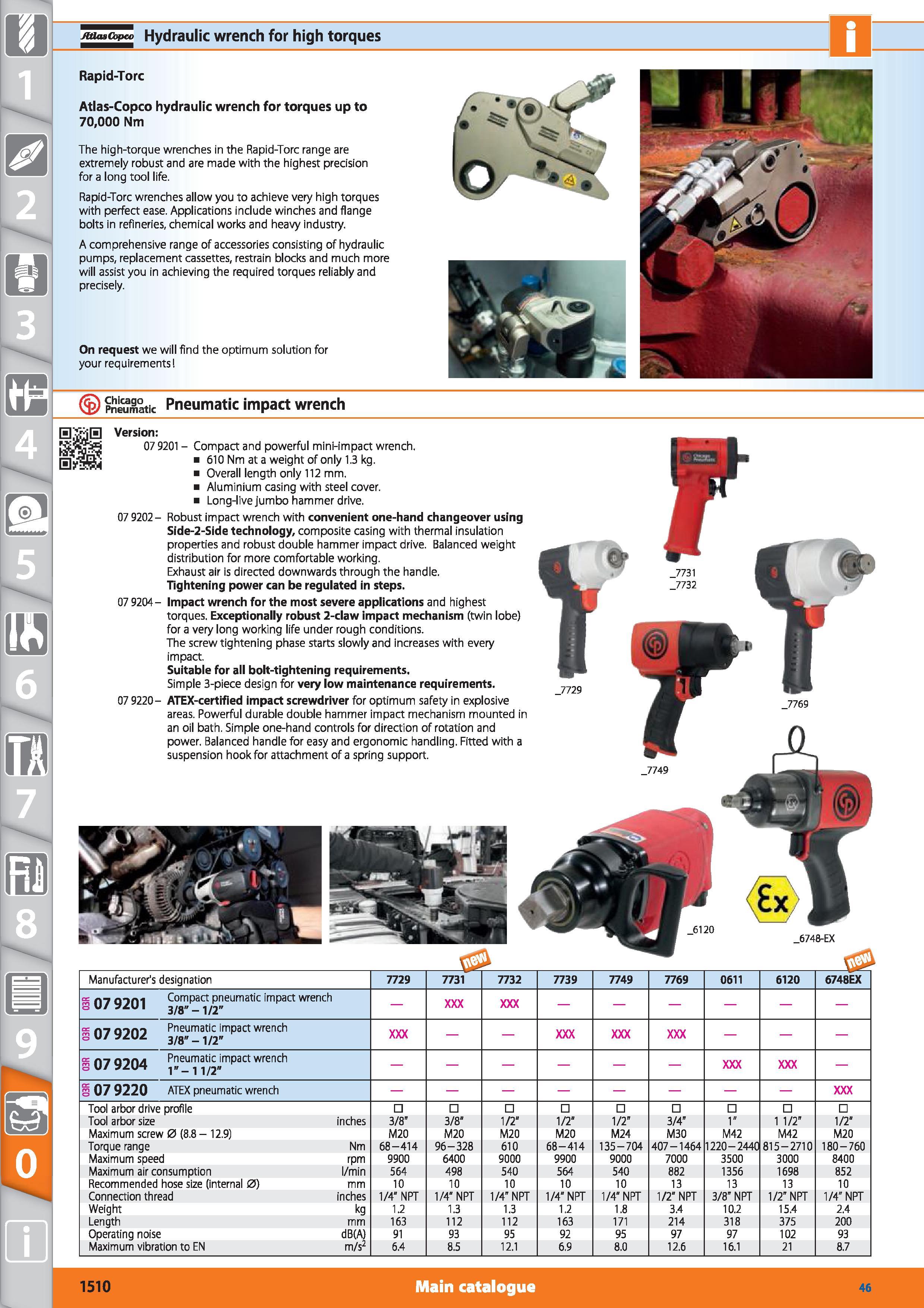

JUias Copco Hydraulic wrench for high torques Rapid-Torc Atlas-Copco hydraulic wrench for torques up to 70,000 Nm The high-torque wrenches in the Rapid-Torc range are extremely robust and are made with the highest precision for a long tool life. Rapid-Torc wrenches allow you to achieve very high torques with perfect ease. Applications include winches and flange bolts in refineries, chemical works and heavy industry. A comprehensive range of accessories consisting of hydraulic pumps, replacement cassettes, restrain blocks and much more will assist you in achieving the required torques reliably and precisely. On request we will find the optimum solution for your requirements Pneumatic Pneumatic impact wrench 1079201 Compact pneumatic impact wrench 3/8" -1/2" 1079202 Pneumatic impact wrench 3/8" -1/2" j 07 9204 Pneumatic impact wrench 1" 1 1/2" 1079220 ATEX pneumatic wrench Tool arbor drive profile Tool arbor size Maximum screw 0 (8.8 - 12.9) Torque range Maximum speed Maximum air consumption Recommended hose size (internal 0) Connection thread Weight Length Operating noise Maximum vibration to EN inches Nm rpm l/min mm inches kg mm dB(A) m/s2 3/8" M20 68-414 9900 564 10 1/4" NPT 1.2 163 91 6.4 3/8" M20 96-328 6400 498 10 1/4” NPT 1.3 112 93 8.5 1/2" M20 610 9000 540 10 1/4” NPT 1.3 112 95 12.1 1/2" M20 68-414 9900 564 10 1/4” NPT 1.2 163 92 6.9 1/2” M24 135-704 9000 540 10 1/4” NPT 1.8 171 95 8.0 3/4” M30 407-1464 7000 882 13 1/2” NPT 3.4 214 97 12.6 1" M42 1220 - 244C 3500 1356 13 3/8" NPT 10.2 318 97 16.1 1 1/2" M42 815-2710 3000 1698 13 1/2" NPT 15.4 375 102 21 1/2" M20 180-760 8400 852 10 1/4" NPT 2.4 200 93 8.7 HSjH Version HjjS 07 9201 - Compact and powerful mini-impact wrench. 610 Nm at a weight of only 1.3 kg. Overall length only 112 mm. Aluminium casing with steel cover. Long-live jumbo hammer drive. 07 9202- Robust impact wrench with convenient one-hand changeover using Side-2-Side technology, composite casing with thermal insulation properties and robust double hammer impact drive. Balanced weight distribution for more comfortable working. Exhaust air is directed downwards through the handle. Tightening power can be regulated in steps. 07 9204- Impact wrench for the most severe applications and highest torques. Exceptionally robust 2-daw impact mechanism (twin lobe) for a very long working life under rough conditions. The screw tightening phase starts slowly and increases with every impact. Suitable for all bolt-tightening requirements. Simple 3-piece design for very low maintenance requirements. 07 9220- ATEX-certified impact screwdriver for optimum safety in explosive areas. Powerful durable double hammer impact mechanism mounted in an oil bath. Simple one-hand controls for direction of rotation and power. Balanced handle for easy and ergonomic handling. Fitted with a suspension hook for attachment of a spring support. Manufacturer's designation _6748-EX 6120 6748EX 1510 Main catalogue Hoffmann Group 46
