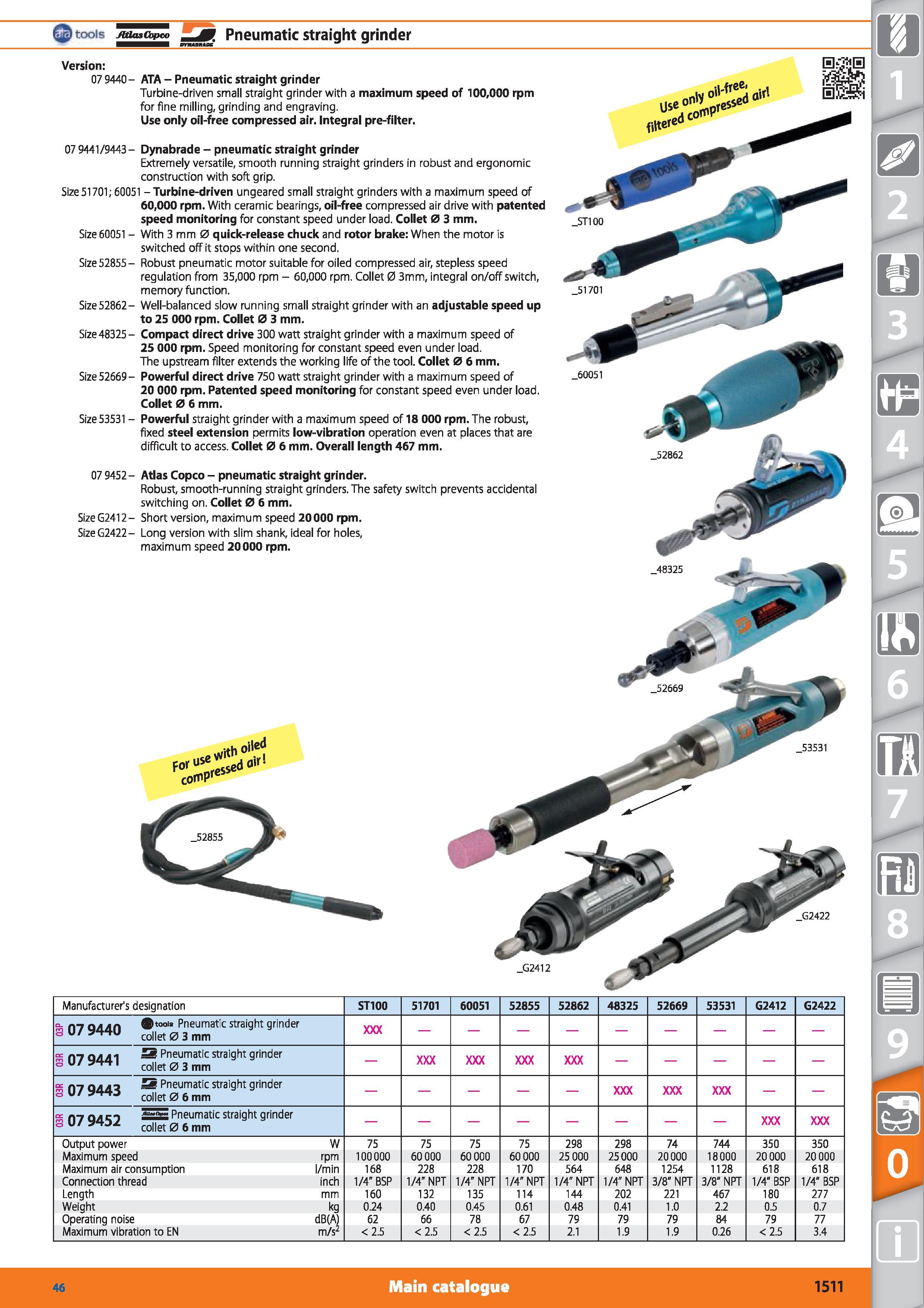

JtUasCbpco Pneumatic straight grinder Version 07 9440- 07 9441/9443- ATA - Pneumatic straight grinder Turbine-driven small straight grinder with a maximum speed of 100,000 rpm for fine milling, grinding and engraving. Use only oil-free compressed air. Integral pre-filter. nW oi'-fteej air BESS filtered Dynabrade - pneumatic straight grinder Extremely versatile, smooth running straight grinders in robust and ergonomic construction with soft grip. Size 51701; 60051 - Turbine-driven ungeared small straight grinders with a maximum speed of 60,000 rpm. With ceramic bearings, oil-free compressed air drive with patented speed monitoring for constant speed under load. Collet 0 3 mm. Size 60051 - With 3 mm 0 quick-release chuck and rotor brake When the motor is switched off it stops within one second. Size 52855- Robust pneumatic motor suitable for oiled compressed air, stepless speed regulation from 35,000 rpm - 60,000 rpm. Collet 0 3mm, integral on/off switch, memory function. Size52862- Well-balanced slow running small straight grinder with an adjustable speed up to 25 000 rpm. Collet 0 3 mm. Size 48325- Compact direct drive 300 watt straight grinder with a maximum speed of 25 000 rpm. Speed monitoring for constant speed even under load. The upstream filter extends the working life of the tool. Collet 0 6 mm. Size 52669- Powerful direct drive 750 watt straight grinder with a maximum speed of 20 000 rpm. Patented speed monitoring for constant speed even under load. Collet 0 6 mm. Size 53531 - Powerful straight grinder with a maximum speed of 18 000 rpm. The robust, fixed steel extension permits low-vibration operation even at places that are difficult to access. Collet 0 6 mm. Overall length 467 mm. 07 9452- Atlas Copco - pneumatic straight grinder. Robust, smooth-running straight grinders. The safety switch prevents accidental switching on. Collet 0 6 mm. SizeG2412- Short version, maximum speed 20000 rpm. SizeG2422- Long version with slim shank, ideal for holes, maximum speed 20000 rpm. for coi use with oil 1 mPres; ,seddr Manufacturer's designation ST100 51701 60051 52855 52862 48325 52669 53531 G2412 G2422 fl7 QAin toola Pneumatic straight grinder S U/ coNet 0 3 mm fl7 QAA1 Pneumatic straight grinder 3 U/ VHH 1 coNet 0 3 mm 07 a AA Pneumatic straight grinder s u/ coNet 06mm °= m a/ic'i Pneumatic straight grinder s u/ coNet 0 6 mm Output power W 75 75 75 75 298 298 74 744 350 350 Maximum speed rpm 100000 60000 60000 60000 25 000 25000 20000 18000 20000 20 000 Maximum air consumption l/min 168 228 228 170 564 648 1254 1128 618 618 Connection thread inch 1/4" BSP 1/4"NPT 1/4" NPT 1/4" NPT 1/4" NPT 1/4" NPT 3/8" NPT 3/8" NPT 1/4" BSP 1/4" BSP Length mm 160 132 135 114 144 202 221 467 180 277 Weight kg 0.24 0.40 0.45 0.61 0.48 0.41 1.0 2.2 0.5 0.7 Operating noise dB(A) 62 66 78 67 79 79 79 84 79 77 Maximum vibration to EN m/s2 <2.5 <2.5 <2.5 <2.5 2.1 1.9 1.9 0.26 <2.5 3.4 Main catalogue Hoffmann Group 46 1511
