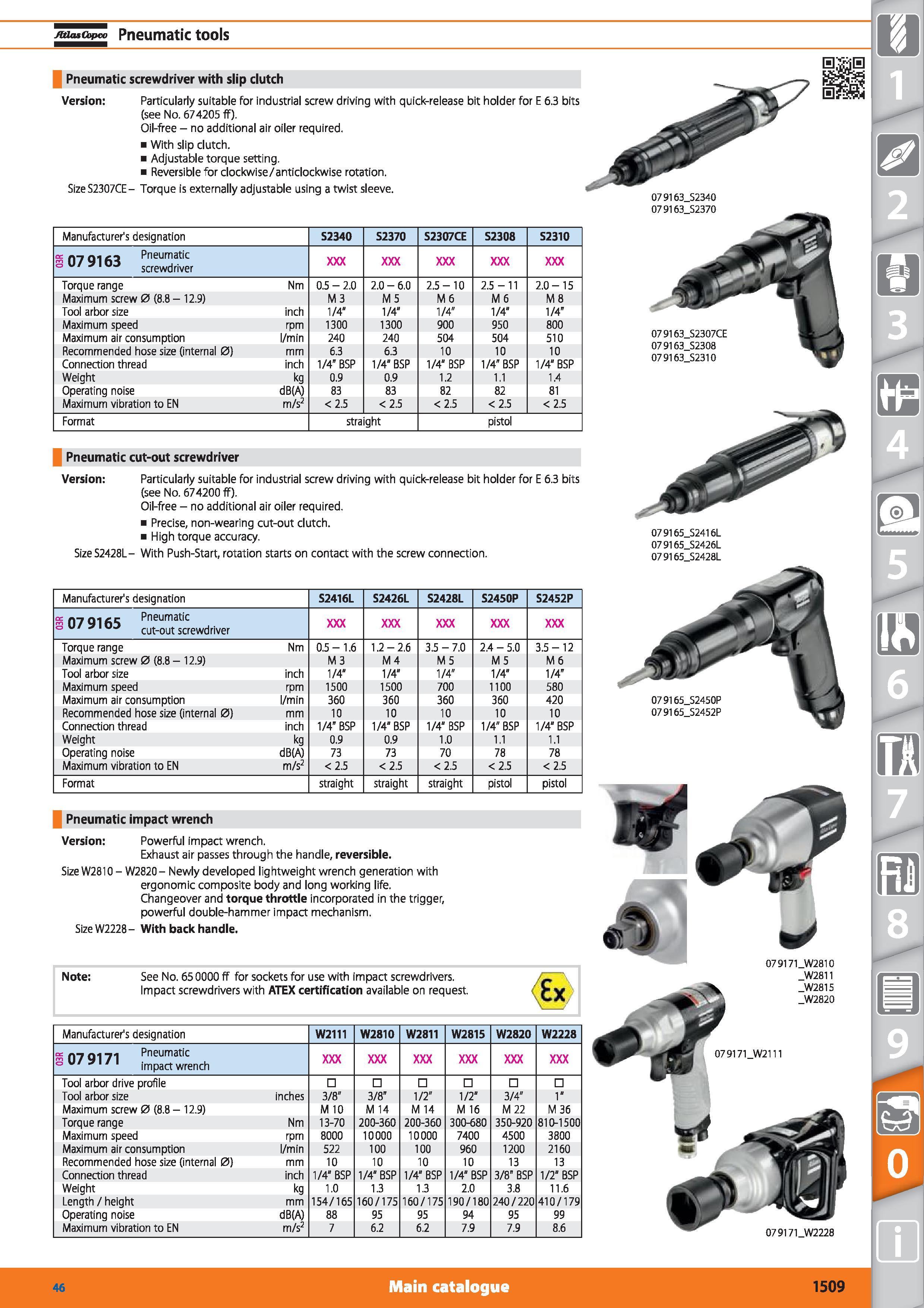

J&la&Copeo Pneumatic tools Pneumatic screwdriver with slip clutch Version Particularly suitable for industrial screw driving with quick-release bit holder for E 6.3 bits (see No. 674205 ff). Oil-free - no additional air oiler required. With slip clutch. Adjustable torque setting. Reversible for clockwise/anticlockwise rotation. SizeS2307CE- Torque is externally adjustable using a twist sleeve. Manufacturer's designation S2340 S2370 S2307CE S2308 S2310 <= n-1 ni Pneumatic 3 07 9163 screwdriver Torque range Nm 0.5 - 2.0 2.0 - 6.0 2.5-10 2.5 -11 2.0-15 Maximum screw 0 (8.8 - 12.9) M3 M 5 M 6 M 6 M 8 Tool arbor size inch 1/4" 1/4" 1/4" 1/4" 1/4" Maximum speed rpm 1300 1300 900 950 800 Maximum air consumption l/min 240 240 504 504 510 Recommended hose size (internal 0) mm 6.3 6.3 10 10 10 Connection thread inch 1/4”BSP 1/4" BSP 1/4" BSP 1/4"BSP 1/4" BSP Weight kg 0.9 0.9 1.2 1.1 1.4 Operating noise dB(A) 83 83 82 82 81 Maximum vibration to EN m/s2 <2.5 <2.5 <2.5 <2.5 < 2.5 Format straight pistol Pneumatic cut-out screwdriver Version Particularly suitable for industrial screw driving with quick-release bit holder for E 6.3 bits (see No. 674200 ff). Oil-free - no additional air oiler required. Precise, non-wearing cut-out clutch. High torque accuracy. SizeS2428L- With Push-Start, rotation starts on contact with the screw connection. Manufacturer's designation S2416L S2426L S2428L S2450P S2452P cc fry qi Pneumatic cut-out screwdriver Torque range Nm 0.5-1.6 1.2-2.6 3.5 - 7.0 2.4 - 5.0 3.5-12 Maximum screw 0 (8.8 - 12.9) M3 M 4 M 5 M 5 M 6 Tool arbor size inch 1/4" 1/4" 1/4" 1/4" 1/4" Maximum speed rpm 1500 1500 700 1100 580 Maximum air consumption l/min 360 360 360 360 420 Recommended hose size (internal 0) mm 10 10 10 10 10 Connection thread inch 1/4"BSP 1/4" BSP 1/4" BSP 1/4"BSP 1/4" BSP Weight kg 0.9 0.9 1.0 1.1 1.1 Operating noise dB(A) 73 73 70 78 78 Maximum vibration to EN m/s2 <2.5 <2.5 <2.5 <2.5 < 2.5 Format straight straight straight pistol pistol Pneumatic impact wrench Version Powerful impact wrench. Exhaust air passes through the handle, reversible. SizeW2810-W2820- Newly developed lightweight wrench generation with ergonomic composite body and long working life. Changeover and torque throttle incorporated in the trigger, powerful double-hammer impact mechanism. SizeW2228- With back handle. Note See No. 65 0000 ff for sockets for use with impact screwdrivers. Impact screwdrivers with ATEX certification available on request. Manufacturer's designation W2111 W2810 W2811 W2815 W2820 W2228 5 n7 Q171 Pneumatic 5,1/1 impact wrench Tool arbor drive profile Tool arbor size inches 3/8" 3/8" 1/2" 1/2" 3/4" 1" Maximum screw 0 (8.8 - 12.9) M 10 M 14 M 14 M 16 M 22 M 36 Torque range Nm 13-70 200-360 200-360 300-680 350-920 810-1500 Maximum speed rpm 8000 10000 10000 7400 4500 3800 Maximum air consumption l/min 522 100 100 960 1200 2160 Recommended hose size (internal 0) mm 10 10 10 10 13 13 Connection thread inch 1/4" BSP 1/4" BSP 1/4" BSP 1/4" BSP 3/8" BSP 1/2" BSP Weight kg 1.0 1.3 1.3 2.0 3.8 11.6 Length / height mm 154/165 160/175 160/175 190/180 240/220 410/179 Operating noise dB(A) 88 95 95 94 95 99 Maximum vibration to EN m/s2 7 6.2 6.2 7.9 7.9 8.6 07 9163_S2307CE 07 9163_S2308 079163_S2310 07 9165_S2450P 07 9165_S2452P 07 9163_S2340 07 9163_S2370 079165_S2416L 07 9165_S2426L 07 9165_S2428L 079171_W2228 079171_W2810 _W2811 _W2815 _W2820 1 W2111 BT \ m m j Main catalogue Hoffmann Group 46 1509
