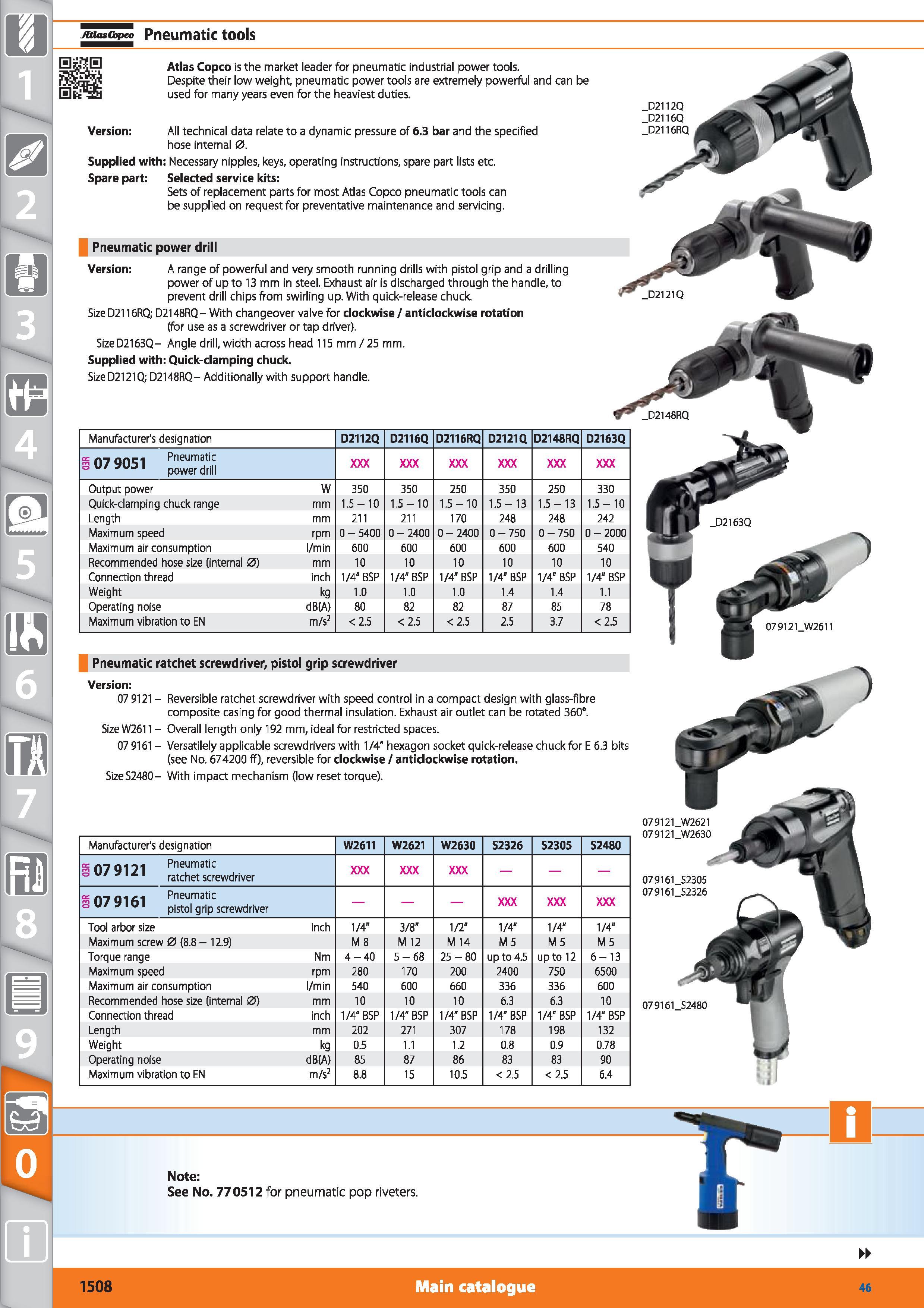

JtUasCbpco Pneumatic tools Atlas Copco is the market leader for pneumatic industrial power tools. Despite their low weight, pneumatic power tools are extremely powerful and can be used for many years even for the heaviest duties. Version All technical data relate to a dynamic pressure of 6.3 bar and the specified hose internal 0. Supplied with Necessary nipples, keys, operating instructions, spare part lists etc. Spare part Selected service kits Sets of replacement parts for most Atlas Copco pneumatic tools can be supplied on request for preventative maintenance and servicing. Pneumatic power drill Version A range of powerful and very smooth running drills with pistol grip and a drilling power of up to 13 mm in steel. Exhaust air is discharged through the handle, to prevent drill chips from swirling up. With quick-release chuck. Size D2116RQ; D2148RQ- With changeover valve for clockwise / anticlockwise rotation (for use as a screwdriver or tap driver). SizeD2163Q- Angle drill, width across head 115 mm/25 mm. Supplied with Quick-damping chuck. Size D2121Q; D2148RQ- Additionally with support handle. _D2112Q _D2116Q _D2116RQ Manufacturer's designation D2112Q D2116Q D2116RQ D2121Q D2148RQ D2163Q is ni nnn Pneumatic 3079051 power drill Output power W 350 350 250 350 250 330 Quick-damping chuck range mm 1.5-10 1.5-10 1.5-10 1.5-13 1.5-13 1.5-10 Length mm 211 211 170 248 248 242 Maximum speed rpm 0 - 5400 0 - 2400 0 - 2400 0-750 0-750 0 - 2000 Maximum air consumption l/min 600 600 600 600 600 540 Recommended hose size (internal 0) mm 10 10 10 10 10 10 Connection thread inch 1/4" BSP 1/4" BSP 1/4" BSP 1/4" BSP 1/4” BSP 1/4" BSP Weight kg 1.0 1.0 1.0 1.4 1.4 1.1 Operating noise dB(A) 80 82 82 87 85 78 Maximum vibration to EN m/s2 <2.5 < 2.5 <2.5 2.5 3.7 <2.5 Pneumatic ratchet screwdriver, pistol grip screwdriver Version 07 9121 - Reversible ratchet screwdriver with speed control in a compact design with glass-fibre composite casing for good thermal insulation. Exhaust air outlet can be rotated 360°. Size W2611 - Overall length only 192 mm, ideal for restricted spaces. 07 9161 - Versatilely applicable screwdrivers with 1/4" hexagon socket quick-release chuck for E 6.3 bits (see No. 674200 ff), reversible for clockwise / anticlockwise rotation. SizeS2480- With impact mechanism (low reset torque). Manufacturer's designation W2611 W2621 W2630 S2326 S230S S2480 070131 Pneumatic 3 ratchet screwdriver m 07 Q1 1 Pneumatic pistol grip screwdriver Tool arbor size inch 1/4" 3/8" 1/2" 1/4" 1/4" 1/4" Maximum screw 0 (8.8 - 12.9) M 8 M 12 M 14 M 5 M 5 M 5 Torque range Nm 4-40 5-68 25-80 up to 4.5 up to 12 6-13 Maximum speed rpm 280 170 200 2400 750 6500 Maximum air consumption l/min 540 600 660 336 336 600 Recommended hose size (internal 0) mm 10 10 10 6.3 6.3 10 Connection thread inch 1/4" BSP 1/4" BSP 1/4" BSP 1/4" BSP 1/4' BSP 1/4” BSP Length mm 202 271 307 178 198 132 Weight kg 0.5 1.1 1.2 0.8 0.9 0.78 Operating noise dB(A) 85 87 86 83 83 90 Maximum vibration to EN m/s2 8.8 15 10.5 <2.5 <2.5 6.4 079161_S2305 079161_S2326 079161 S2480 Note See No. 770512 for pneumatic pop riveters. 1508 Main catalogue
