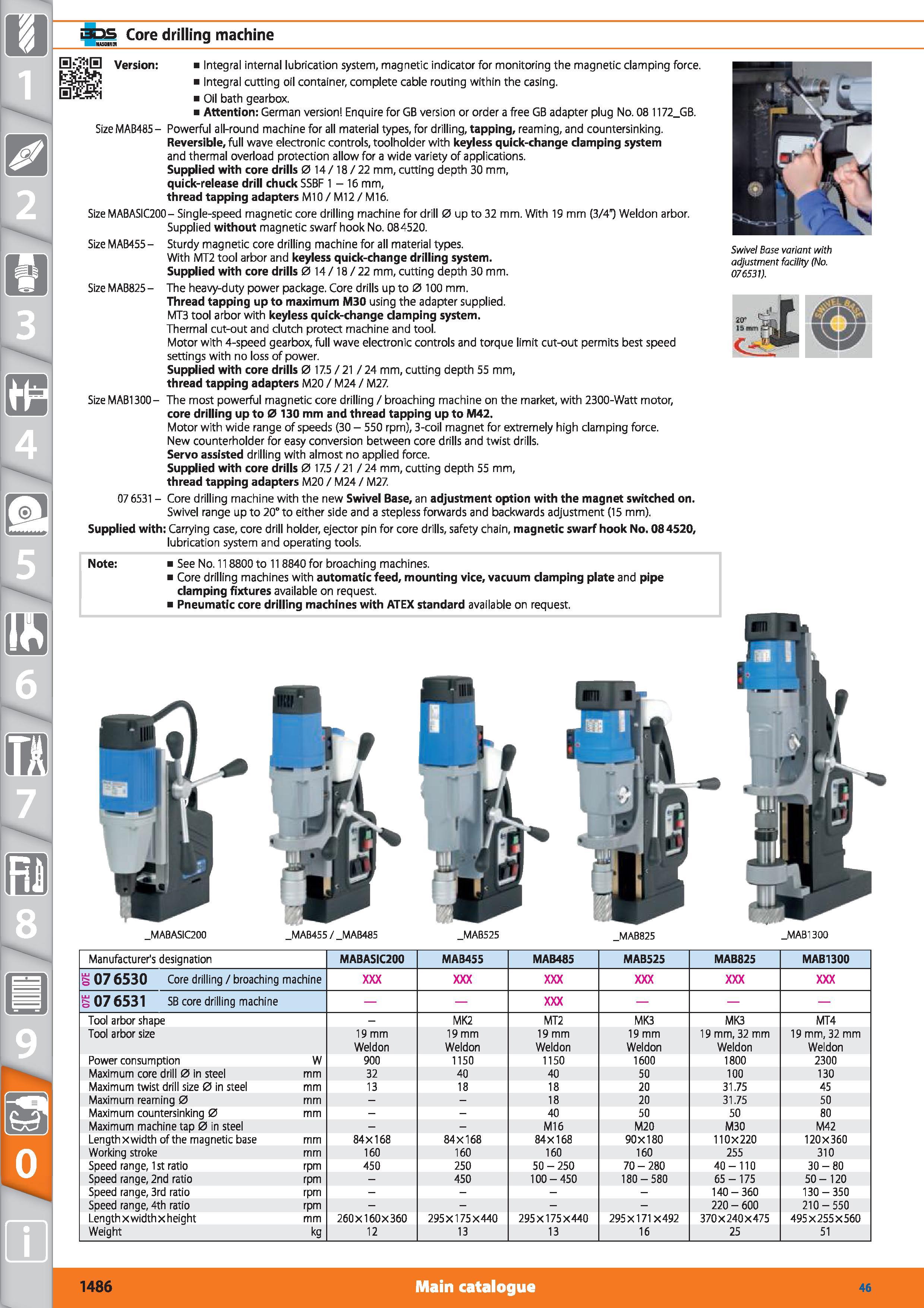

1 3DS Core drilling machine (Ul ffll Swivel Base variant with adjustment facility (No. 076531). S.'i'ijS Version Integral internal lubrication system, magnetic indicator for monitoring the magnetic clamping force. Integral cutting oil container, complete cable routing within the casing. Oil bath gearbox. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1172_GB. Size MAB485 - Powerful all-round machine for all material types, for drilling, tapping, reaming, and countersinking. Reversible, full wave electronic controls, toolholder with keyless quick-change damping system and thermal overload protection allow for a wide variety of applications. Supplied with core drills 0 14/18/22 mm, cutting depth 30 mm, quick-release drill chuck SSBF 1 - 16 mm, thread tapping adapters M10 / M12 / M16. Size MABASIC200- Single-speed magnetic core drilling machine for drill 0 up to 32 mm. With 19 mm (3/4”) Weldon arbor. Supplied without magnetic swarf hook No. 084520. Size MAB455- Sturdy magnetic core drilling machine for all material types. With MT2 tool arbor and keyless quick-change drilling system. Supplied with core drills 0 14/18/22 mm, cutting depth 30 mm. Size MAB825- The heavy-duty power package. Core drills up to 0 100 mm. Thread tapping up to maximum M30 using the adapter supplied. MT3 tool arbor with keyless quick-change clamping system. Thermal cut-out and clutch protect machine and tool. Motor with 4-speed gearbox, full wave electronic controls and torque limit cut-out permits best speed settings with no loss of power. Supplied with core drills 0 17.5 / 21 / 24 mm, cutting depth 55 mm, thread tapping adapters M20 / M24 / M27. Size MAB1300- The most powerful magnetic core drilling / broaching machine on the market, with 2300-Watt motor, core drilling up to 0 130 mm and thread tapping up to M42. Motor with wide range of speeds (30 - 550 rpm), 3-coil magnet for extremely high clamping force. New counterholder for easy conversion between core drills and twist drills. Servo assisted drilling with almost no applied force. Supplied with core drills 0 17.5 / 21 / 24 mm, cutting depth 55 mm, thread tapping adapters M20 / M24 / M27. 07 6531 - Core drilling machine with the new Swivel Base, an adjustment option with the magnet switched on. Swivel range up to 20° to either side and a stepless forwards and backwards adjustment (15 mm). Supplied with Carrying case, core drill holder, ejector pin for core drills, safety chain, magnetic swarf hook No. 08 4520, lubrication system and operating tools. Note See No. 118800 to 118840 for broaching machines. Core drilling machines with automatic feed, mounting vice, vacuum clamping plate and pipe clamping fixtures available on request. Pneumatic core drilling machines with ATEX standard available on request. _MABASIC200 _MAB455 / _MAB485 _MAB525 MAB825 Manufacturer's designation MABASIC200 MAB455 MAB485 MAB525 MAB825 MAB1300 S 07 6530 Core drilling / broaching machine 6 07 6531 SB core drilling machine Tool arbor shape - MK2 MT2 MK3 MK3 MT4 Tool arbor size 19 mm 19 mm 19 mm 19 mm 19 mm, 32 mm 19 mm, 32 mm Weldon Weldon Weldon Weldon Weldon Weldon Power consumption W 900 1150 1150 1600 1800 2300 Maximum core drill 0 in steel mm 32 40 40 50 100 130 Maximum twist drill size 0 in steel mm 13 18 18 20 31.75 45 Maximum reaming 0 mm 18 20 31.75 50 Maximum countersinking 0 mm 40 50 50 80 Maximum machine tap 0 in steel M16 M20 M30 M42 Lengthxwidth of the magnetic base mm 84X168 84X168 84X168 90X180 110X220 120X360 Working stroke mm 160 160 160 160 255 310 Speed range, 1st ratio rpm 450 250 50 - 250 70-280 40-110 30-80 Speed range, 2nd ratio rpm - 450 100 - 450 180-580 65-175 50-120 Speed range, 3rd ratio rpm 140 - 360 130-350 Speed range, 4th ratio rpm 220 - 600 210 - 550 Length xwidthx height mm 260X160X360 295X175X440 295X175 X 440 295X171X492 370X240X475 495X255X560 Weight kg 12 13 13 16 25 51 _MAB1300 1486 Main catalogue Hoffmann Group 46
