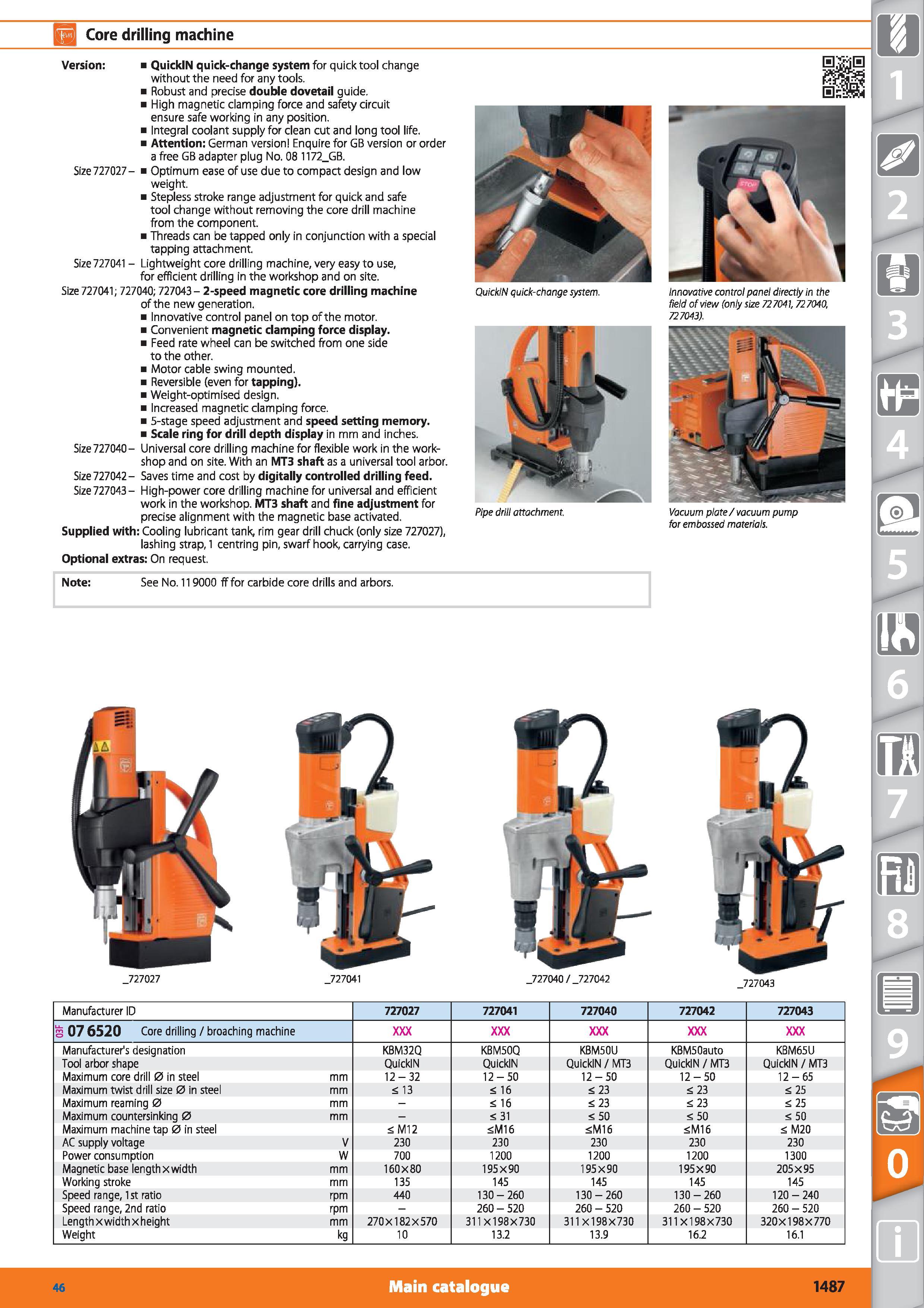

IP Core drilling machine Version QuickIN quick-change system for quick tool change without the need for any tools. Robust and precise double dovetail guide. High magnetic clamping force and safety circuit ensure safe working in any position. Integral coolant supply for clean cut and long tool life. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1172_GB. Size 727027- Optimum ease of use due to compact design and low weight. Stepless stroke range adjustment for quick and safe tool change without removing the core drill machine from the component. Threads can be tapped only in conjunction with a special tapping attachment. Size 727041 - Lightweight core drilling machine, very easy to use, for efficient drilling in the workshop and on site. Size 727041; 727040; 727043 - 2-speed magnetic core drilling machine of the new generation. Innovative control panel on top of the motor. Convenient magnetic clamping force display. Feed rate wheel can be switched from one side to the other. Motor cable swing mounted. Reversible (even for tapping). Weight-optimised design. Increased magnetic clamping force. 5-stage speed adjustment and speed setting memory. Scale ring for drill depth display in mm and inches. Size 727040- Universal core drilling machine for flexible work in the workshop and on site. With an MT3 shaft as a universal tool arbor. Size 727042- Saves time and cost by digitally controlled drilling feed. Size 727043- High-power core drilling machine for universal and efficient work in the workshop. MT3 shaft and fine adjustment for precise alignment with the magnetic base activated. Supplied with Cooling lubricant tank, rim gear drill chuck (only size 727027), lashing strap, 1 centring pin, swarf hook, carrying case. Optional extras On request. Vacuum plate /vacuum pump for embossed materials. QuickIN quick-change system. Pipe drill attachment. Innovative control panel directly in the field of view (only size 727041,727040, 727043). Note See No. 119000 ff for carbide core drills and arbors. 727041 _727040 / _727042 727043 Manufacturer ID 727027 727041 727040 727042 727043 3 07 6520 Core drilling / broaching machine Manufacturer's designation KBM32Q KBM50Q KBM50U KBM50auto KBM65U Tool arbor shape QuickIN QuickIN QuickIN / MT3 QuickIN / MT3 QuickIN / MT3 Maximum core drill 0 in steel mm 12-32 12-50 12-50 12-50 12-65 Maximum twist drill size 0 in steel mm 13 16 23 23 25 Maximum reaming 0 mm - 16 23 23 25 Maximum countersinking 0 mm - 31 50 50 50 Maximum machine tap 0 in steel M12 M16 M16 M16 M20 AC supply voltage V 230 230 230 230 230 Power consumption W 700 1200 1200 1200 1300 Magnetic base lengthxwidth mm 160X80 195X90 195X90 195X90 205X95 Working stroke mm 135 145 145 145 145 Speed range, 1st ratio rpm 440 130-260 130-260 130-260 120 - 240 Speed range, 2nd ratio rpm - 260-520 260 - 520 260 - 520 260 - 520 Lengthxwidthxheight mm 270X182X570 311X198X730 311X198X730 311X198X730 320X198X 770 Weight kg 10 13.2 13.9 16.2 16.1 _727027 Main catalogue Hoffmann Group 46 1487
