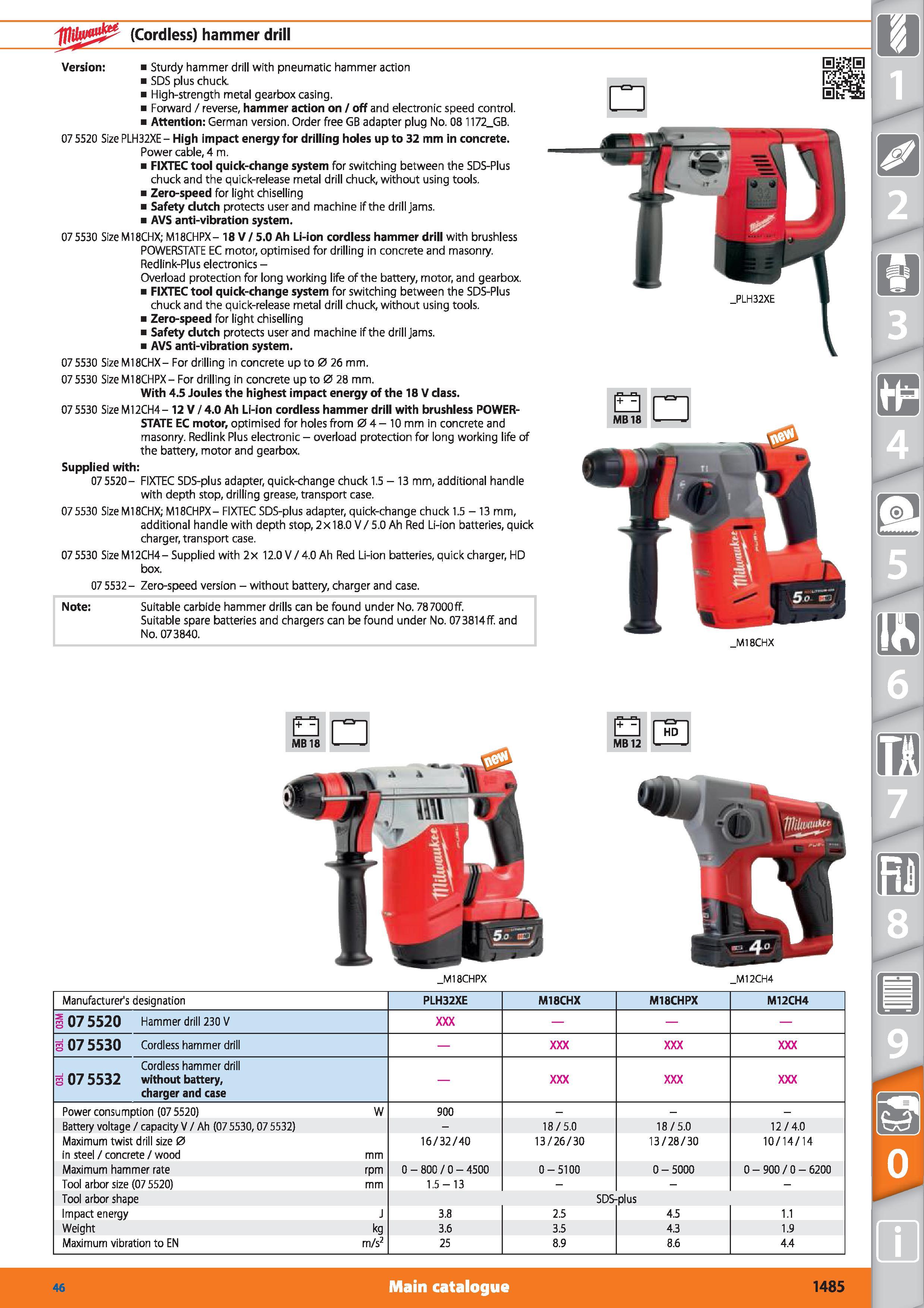

(Cordless) hammer drill Version Sturdy hammer drill with pneumatic hammer action SDS plus chuck. High-strength metal gearbox casing. Forward / reverse, hammer action on / off and electronic speed control. Attention German version. Order free GB adapter plug No. 081172_GB. 07 5520 Size PLH32XE - High impact energy for drilling holes up to 32 mm in concrete. Power cable, 4 m. FIXTEC tool quick-change system for switching between the SDS-Plus chuck and the quick-release metal drill chuck, without using tools. Zero-speed for light chiselling Safety clutch protects user and machine if the drill jams. AVS anti-vibration system. 075530 Size M18CHX; M18CHPX- 18 V/ 5.0 Ah Li-ion cordless hammer drill with brushless POWERSTATE EC motor, optimised for drilling in concrete and masonry. Redlink-Plus electronics - Overload protection for long working life of the battery, motor, and gearbox. FIXTEC tool quick-change system for switching between the SDS-Plus chuck and the quick-release metal drill chuck, without using tools. Zero-speed for light chiselling Safety clutch protects user and machine if the drill jams. AVS anti-vibration system. 07 5530 Size M18CHX- For drilling in concrete up to 0 26 mm. 075530 Size M18CHPX- For drilling in concrete up to 0 28 mm. With 4.5 Joules the highest impact energy of the 18 V class. 07 5530 Size M12CH4- 12 V / 4.0 Ah Li-ion cordless hammer drill with brushless POWER-STATE EC motor, optimised for holes from 0 4-10 mm in concrete and masonry. Redlink Plus electronic - overload protection for long working life of the battery, motor and gearbox. Supplied with 07 5520- FIXTEC SDS-plus adapter, quick-change chuck 1.5 - 13 mm, additional handle with depth stop, drilling grease, transport case. 075530 Size M18CHX; M18CHPX- FIXTEC SDS-plus adapter, quick-change chuck 1.5-13 mm, additional handle with depth stop, 2x18.0 V/5.0 Ah Red Li-ion batteries, quick charger, transport case. 075530 Size M12CH4-Supplied with 2x 12.0V/4.0Ah Red Li-ion batteries, quick charger, HD box. 07 5532- Zero-speed version - without battery, charger and case. Note Suitable carbide hammer drills can be found under No. 787000ff. Suitable spare batteries and chargers can be found under No. 073814ff. and No. 073840. _M18CHPX _M12CH4 Manufacturer's designation PLH32XE M18CHX M18CHPX M12CH4 g 07 5520 Hammer drill 230 V g 07 5530 Cordless hammer drill Cordless hammer drill g 07 5532 without battery, charger and case Power consumption (07 5520) W 900 Battery voltage / capacity V/Ah (07 5530,07 5532) - 18/5.0 18/5.0 12/4.0 Maximum twist drill size 0 16/32/40 13/26/30 13/28/30 10/14/14 in steel / concrete / wood mm Maximum hammer rate rpm 0 - 800 / 0 - 4500 0-5100 0 - 5000 0 - 900 / 0 - 6200 Tool arbor size (07 5520) mm 1.5-13 - Tool arbor shape SDS-plus Impact energy J 3.8 2.5 4.5 1.1 Weight kg 3.6 3.5 4.3 1.9 Maximum vibration to EN m/s2 25 8.9 8.6 4.4 Main catalogue Hoffmann Group 46 1485
