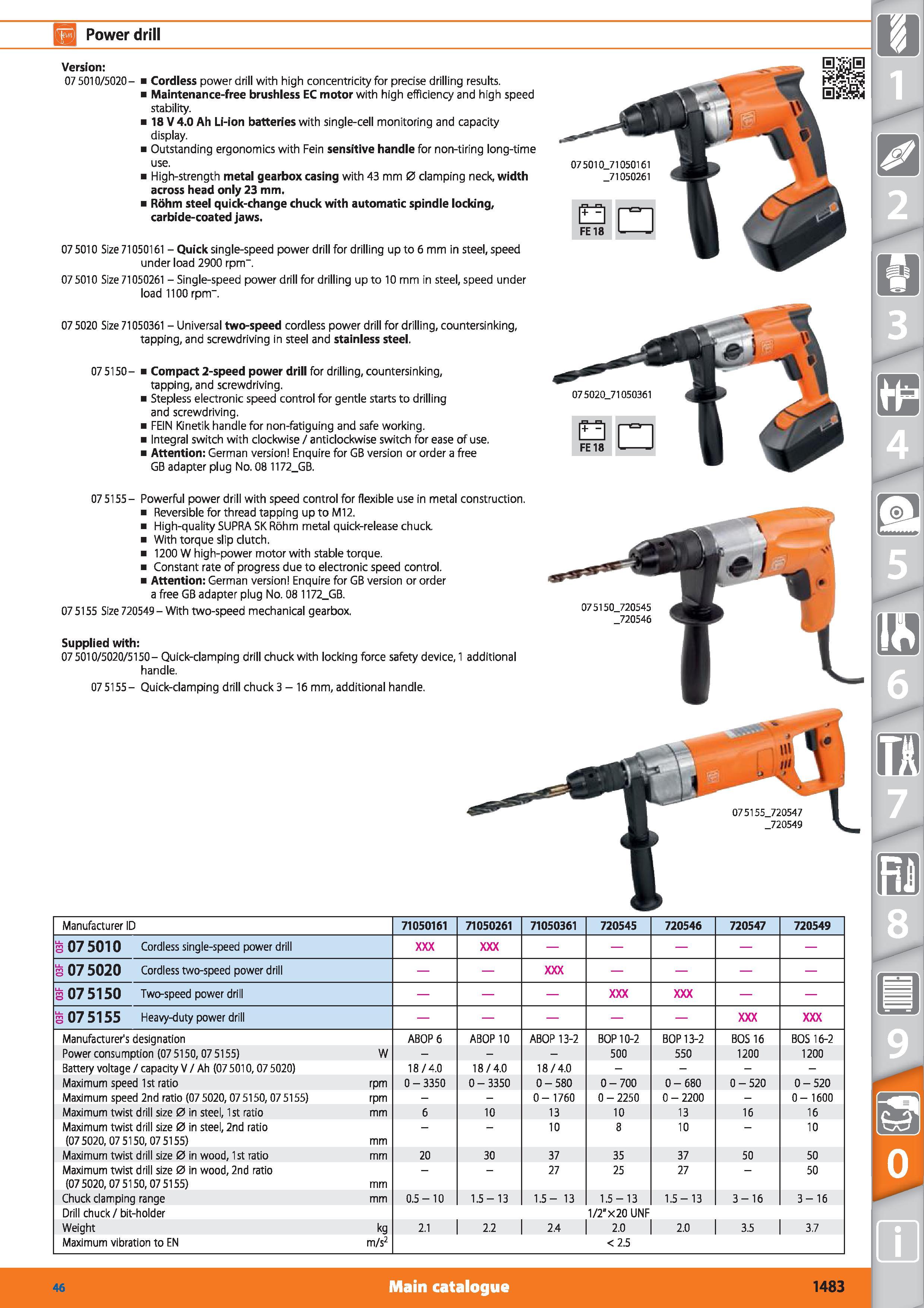

Power drill Version 07 5010/5020- Cordless power drill with high concentricity for precise drilling results. Maintenance-free brushless EC motor with high efficiency and high speed stability. 18 V 4.0 Ah Li-ion batteries with single-cell monitoring and capacity display. Outstanding ergonomics with Fein sensitive handle for non-tiring long-time use. High-strength metal gearbox casing with 43 mm 0 clamping neck, width across head only 23 mm. Rohm steel quick-change chuck with automatic spindle locking, carbide-coated jaws. 07 5010 Size 71050161 - Quick single-speed power drill for drilling up to 6 mm in steel, speed under load 2900 rpm". 07 5010 Size 71050261 - Single-speed power drill for drilling up to 10 mm in steel, speed under load 1100 rpm". 07 5020 Size 71050361 - Universal two-speed cordless power drill for drilling, countersinking, tapping, and screwdriving in steel and stainless steel. 07 5150- Compact 2-speed power drill for drilling, countersinking, tapping, and screwdriving. Stepless electronic speed control for gentle starts to drilling and screwdriving. FEIN Kinetik handle for non-fatiguing and safe working. Integral switch with clockwise / anticlockwise switch for ease of use. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1172_GB. l+ -I FE 18 07 5155- Powerful power drill with speed control for flexible use in metal construction Reversible for thread tapping up to M12. High-quality SUPRA SK Rohm metal quick-release chuck With torque slip clutch. 1200 W high-power motor with stable torque. Constant rate of progress due to electronic speed control. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1172_GB. 075155 Size 720549 - With two-speed mechanical gearbox. Supplied with 075010/5020/5150- Quick-damping drill chuck with locking force safety device, 1 additional handle. 075155- Quick-damping drill chuck 3-16 mm, additional handle. Manufacturer ID 71050161 71050261 71050361 720545 720546 720547 720549 S 07 5010 Cordless single-speed power drill S 07 5020 Cordless two-speed power drill 3 07 5150 Two-speed power drill 075155 Heavy-duty power drill Manufacturer's designation AB0P6 ABOP 10 ABOP 13-2 BOP 10-2 BOP 13-2 BOS 16 BOS 16-2 Power consumption (07 5150,07 5155) W - 500 550 1200 1200 Battery voltage / capacity V/Ah (07 5010,07 5020) 18/4.0 18/4.0 18/4.0 Maximum speed 1st ratio rpm 0 - 3350 0- 3350 0-580 0-700 0-680 0-520 0-520 Maximum speed 2nd ratio (07 5020,07 5150,07 5155) rpm 0-1760 0 - 2250 0 - 2200 - 0-1600 Maximum twist drill size 0 in steel, 1st ratio mm 6 10 13 10 13 16 16 Maximum twist drill size 0 in steel, 2nd ratio (075020,075150,075155) mm 10 8 10 - 10 Maximum twist drill size 0 in wood, 1st ratio mm 20 30 37 35 37 50 50 Maximum twist drill size 0 in wood, 2nd ratio (075020,075150,075155) mm 27 25 27 - 50 Chuck clamping range mm 0.5-10 1.5-13 1.5- 13 1.5-13 1.5-13 3-16 3-16 Drill chuck / bit-holder 1/2"X20 UNF Weight kg 2.1 2.2 2.4 2.0 2.0 3.5 3.7 Maximum vibration to EN m/s2 <2.5 46 Main catalogue
