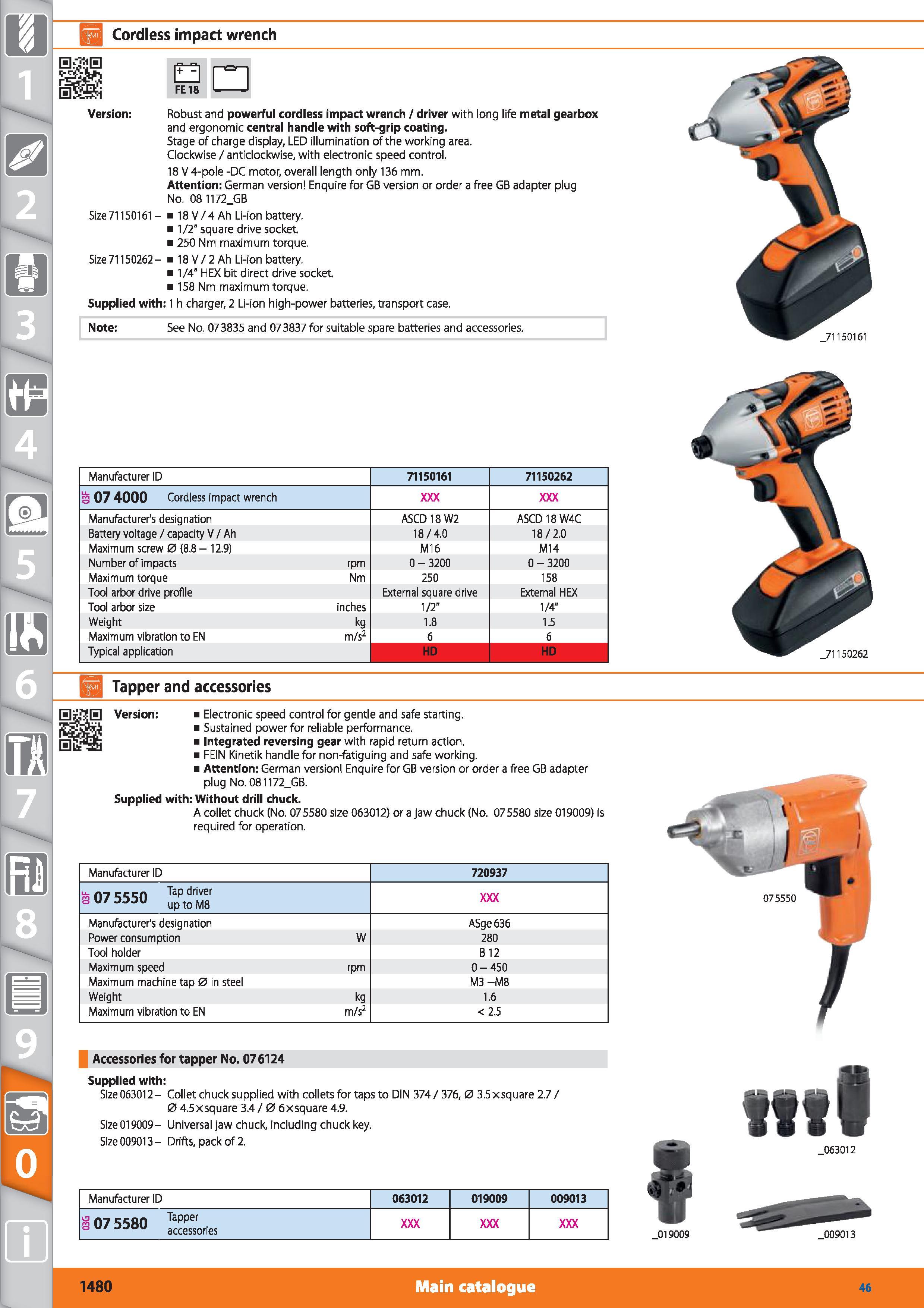

Cordless impact wrench E3 FE 18 Version Robust and powerful cordless impact wrench / driver with long life metal gearbox and ergonomic central handle with soft-grip coating. Stage of charge display, LED illumination of the working area. Clockwise / anticlockwise, with electronic speed control. 18 V 4-pole -DC motor, overall length only 136 mm. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1172_GB Size71150161 - 18 V/4 Ah Li-ion battery. 1/2" square drive socket. 250 Nm maximum torque. Size71150262- 18V/2 Ah Li-ion battery. 1/4" HEX bit direct drive socket. 158 Nm maximum torque. Supplied with 1 h charger, 2 Li-ion high-power batteries, transport case. Note See No. 073835 and 073837 for suitable spare batteries and accessories. Manufacturer ID 1074000 Cordless impact wrench Manufacturer's designation Battery voltage / capacity V / Ah Maximum screw 0 (8.8 - 12.9) Number of impacts Maximum torque Tool arbor drive profile Tool arbor size Weight Maximum vibration to EN Typical application 71150161 ASCD18W2 ASCD18W4C 18/4.0 18/2.0 M16 M14 rpm 0 - 3200 0 - 3200 Nm 250 158 External square drive External HEX inches 1/2" 1/4" kg 1.8 1.5 m/s2 6 6 HD 71150262 HD Tapper and accessories Electronic speed control for gentle and safe starting. Sustained power for reliable performance. Integrated reversing gear with rapid return action. FEIN Kinetik handle for non-fatiguing and safe working. Attention German version Enquire for GB version or order a free GB adapter plug No. 081172_GB. Supplied with Without drill chuck. A collet chuck (No. 075580 size 063012) or a jaw chuck (No. 07 5580 size 019009) is required for operation. Manufacturer ID 720937 07 5550 Tap driver up to M8 Manufacturer's designation ASge636 Power consumption W 280 Tool holder B 12 Maximum speed rpm 0-450 Maximum machine tap 0 in steel M3-M8 Weight kg 1.6 Maximum vibration to EN m/s2 < 2.5 075550 f J Accessories for tapper No. 076124 Supplied with Size 063012- Collet chuck supplied with collets for taps to DIN 374 / 376,0 3.5xsquare 2.7 / 0 4.5xsquare 3.4 / 0 6xsquare 4.9. Size 019009- Universal jaw chuck, including chuck key. Size 009013 - Drifts, pack of 2. Manufacturer ID 063012 019009 009013 s 07 5580 Tapper o w -'-'w accessories _019009 _063012 _009013 71150161 _71150262 1480 Main catalogue Hoffmann Group 46
