1481 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1481

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1481 1481 ENG Lab2u

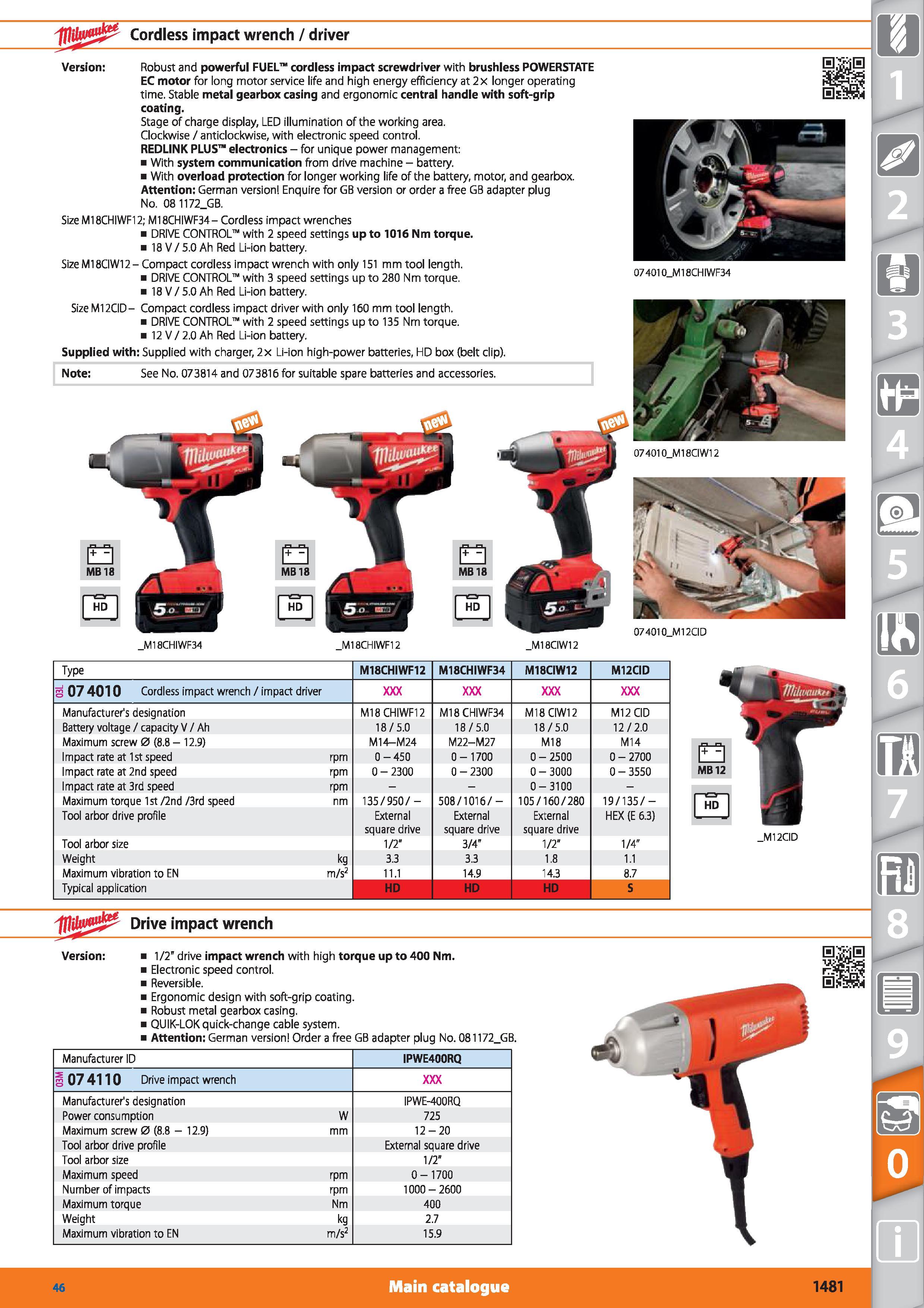

Note See No. 073814 and 073816 for suitable spare batteries and accessories. Cordless impact wrench / driver Version Robust and powerful FUEL cordless impact screwdriver with brushless POWERSTATE EC motor for long motor service life and high energy efficiency at 2x longer operating time. Stable metal gearbox casing and ergonomic central handle with soft-grip coating. Stage of charge display, LED illumination of the working area. Clockwise / anticlockwise, with electronic speed control. REDLINK PLUS electronics - for unique power management With system communication from drive machine - battery. With overload protection for longer working life of the battery, motor, and gearbox. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1172_GB. SizeM18CHIWF12; M18CHIWF34- Cordless impact wrenches DRIVE CONTROL with 2 speed settings up to 1016 Nm torque. 18 V / 5.0 Ah Red Li-ion battery. Size Ml8CIW12- Compact cordless impact wrench with only 151 mm tool length. DRIVE CONTROL with 3 speed settings up to 280 Nm torque. 18 V / 5.0 Ah Red Li-ion battery. Size M12CID- Compact cordless impact driver with only 160 mm tool length. DRIVE CONTROL with 2 speed settings up to 135 Nm torque. 12 V / 2.0 Ah Red Li-ion battery. Supplied with Supplied with charger, 2x Li-ion high-power batteries, FID box (belt clip). M18CHIWF34 M18CHIWF12 M18CIW12 074010_M 18CFIIWF34 074010_M 18CI WI 2 074010_M12CID ESriS Type M18CHIWF12 M18CHIWF34 M18CIW12 M12CID S 07 4010 Cordless impact wrench / impact driver Manufacturer's designation Ml 8 CHIWF12 M18 CHIWF34 M18CIW12 M12CID Battery voltage / capacity V / Ah 18/5.0 18/5.0 18/5.0 12/2.0 Maximum screw 0 (8.8 - 12.9) M14-M24 M22-M27 M18 M14 Impact rate at 1st speed rpm 0-450 0-1700 0 - 2500 0 - 2700 Impact rate at 2nd speed rpm 0 - 2300 0 - 2300 0 - 3000 0 - 3550 Impact rate at 3rd speed rpm 0-3100 - Maximum torque 1st /2nd /3rd speed nm 135 / 950/- 508/1016/- 105/160/280 19/135/- Tool arbor drive profile External square drive External square drive External square drive HEX (E 6.3) Tool arbor size 1/2" 3/4" 1/2" 1/4" Weight kq 3.3 3.3 1.8 1.1 Maximum vibration to EN m/s2 11.1 14.9 14.3 8.7 Typical application HD HD HD S MB1 HD Drive impact wrench Version 1/2" drive impact wrench with high torque up to 400 Nm. Electronic speed control. Reversible. Ergonomic design with soft-grip coating. Robust metal gearbox casing. QUIK-LOKquick-change cable system. Attention German version Order a free GB adapter plug No. 081172_GB. Manufacturer ID IPWE400RQ g 07 4110 Drive impact wrench Manufacturer's designation IPWE-400RQ Power consumption W 725 Maximum screw 0 (8.8 - 12.9) mm 12-20 Tool arbor drive profile External square drive Tool arbor size 1/2" Maximum speed rpm 0-1700 Number of impacts rpm 1000-2600 Maximum torque Nm 400 Weight kg 2.7 Maximum vibration to EN m/s2 15.9 Main catalogue Hoffmann Group 46 1481
