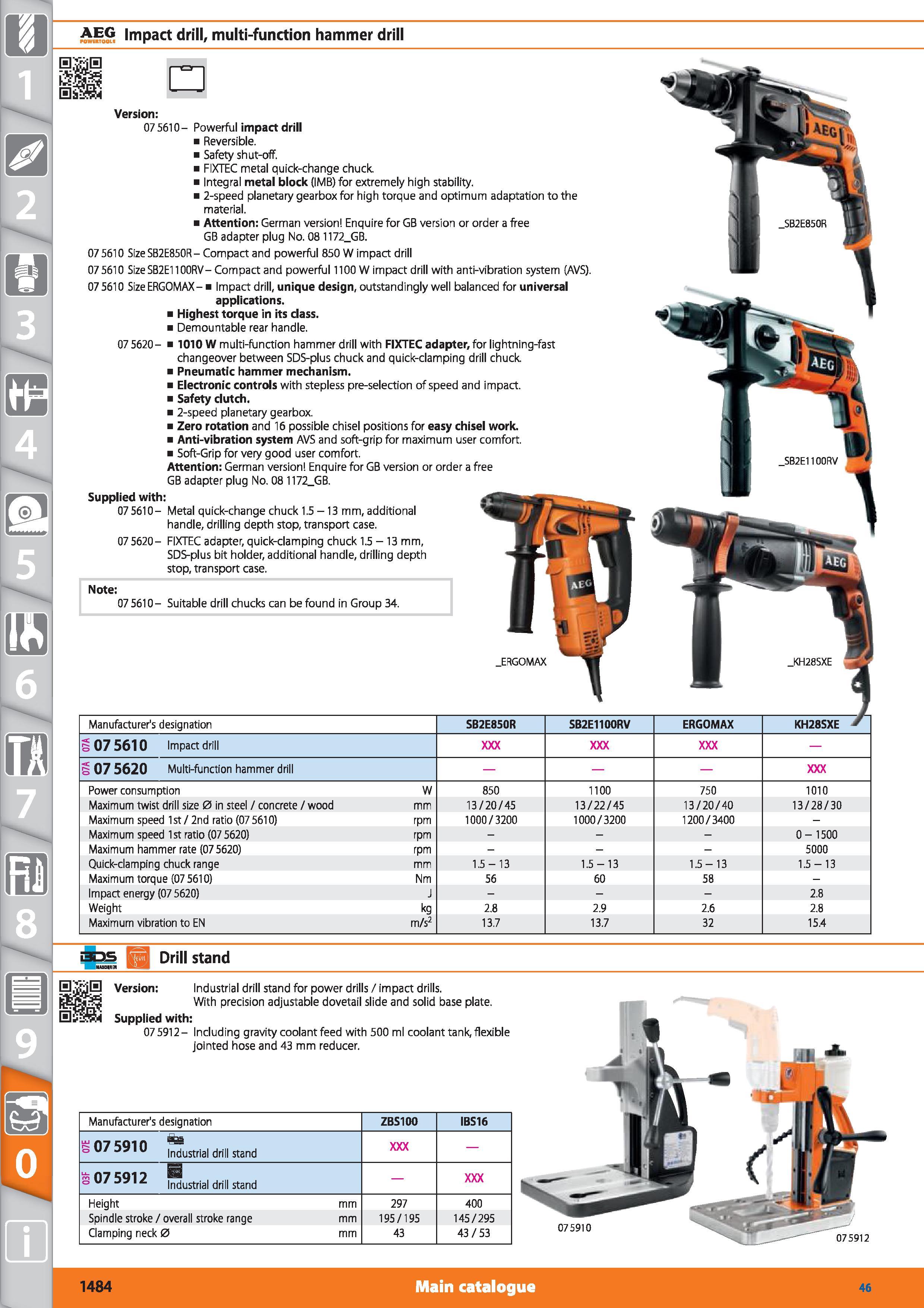

AEG impact drill, multi-function hammer drill Version 075610- Powerful impact drill Reversible. Safety shut-off. FIXTEC metal quick-change chuck Integral metal block (IMB) for extremely high stability. 2-speed planetary gearbox for high torque and optimum adaptation to the material. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1172_GB. 075610 Size SB2E850R- Compact and powerful 850 W impact drill 075610 Size SB2E110ORV Compact and powerful 1100 W impact drill with anti-vibration system (AVS). 07 5610 Size ERGOMAX- Impact drill, unique design, outstandingly well balanced for universal applications. Highest torque in its class. Demountable rear handle. 07 5620- 1010 W multi-function hammer drill with FIXTEC adapter, for lightning-fast changeover between SDS-plus chuck and quick-damping drill chuck Pneumatic hammer mechanism. Electronic controls with stepless pre-selection of speed and impact. Safety clutch. 2-speed planetary gearbox. Zero rotation and 16 possible chisel positions for easy chisel work. Anti-vibration system AVS and soft-grip for maximum user comfort. Soft-Grip for very good user comfort. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1172_GB. Supplied with 07 5610- Metal quick-change chuck 1.5-13 mm, additional handle, drilling depth stop, transport case. 07 5620- FIXTEC adapter, quick-damping chuck 1.5-13 mm, SDS-plus bit holder, additional handle, drilling depth stop, transport case. Note 07 5610- Suitable drill chucks can be found in Group 34. _ERGOMAX Manufacturer's designation SB2E850R SB2E1100RV ERGOMAX KH28SXE S 07 5610 Impact drill S 07 5620 Multi-function hammer drill Power consumption W 850 1100 750 1010 Maximum twist drill size 0 in steel / concrete / wood mm 13/20/45 13/22/45 13/20/40 13/28/30 Maximum speed 1 st / 2nd ratio (07 5610) rpm 1000/3200 1000/3200 1200/3400 - Maximum speed 1st ratio (07 5620) rpm - 0-1500 Maximum hammer rate (07 5620) rpm - 5000 Quick-damping chuck range mm 1.5-13 1.5-13 1.5-13 1.5-13 Maximum torque (07 5610) Nm 56 60 58 - Impact energy (07 5620) J - 2.8 Weight kg 2.8 2.9 2.6 2.8 Maximum vibration to EN m/s2 13.7 13.7 32 15.4 Drill stand H Version Industrial drill stand for power drills / impact drills. With precision adjustable dovetail slide and solid base plate. Supplied with 075912- Including gravity coolant feed with 500 ml coolant tank, flexible jointed hose and 43 mm reducer. Manufacturer's designation ZBS100 IBS16 s075910 fe Industrial drill stand 075912 S3 Industrial drill stand Height mm 297 400 Spindle stroke / overall stroke range mm 195/195 145 / 295 Clamping neck 0 mm 43 43/53 075912 1484 Main catalogue Hoffmann Group 46
