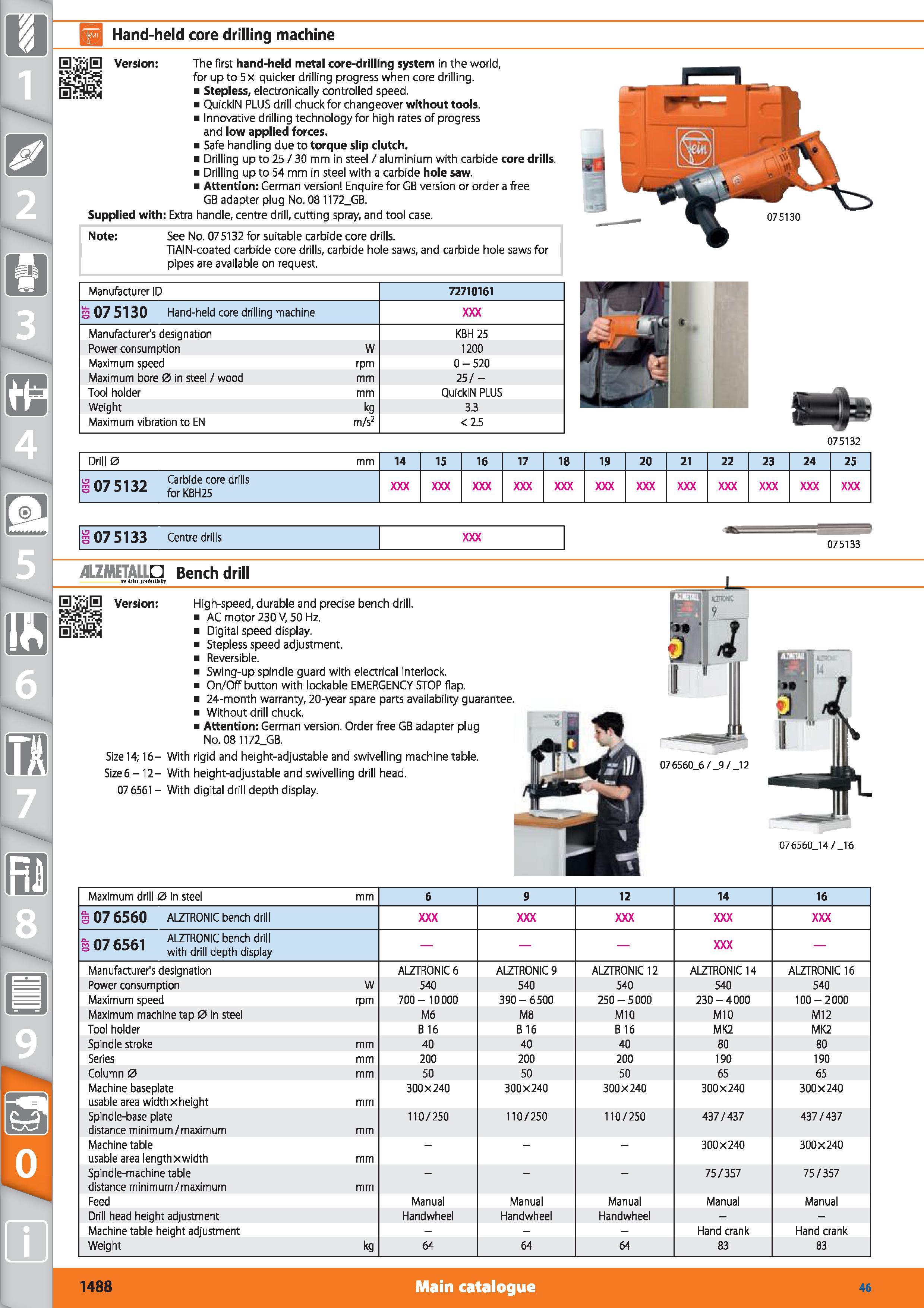

H Hand-held core drilling machine Version The first hand-held metal core-drilling system in the world, for up to 5 x quicker drilling progress when core drilling. Stepless, electronically controlled speed. QuickIN PLUS drill chuck for changeover without tools. Innovative drilling technology for high rates of progress and low applied forces. Safe handling due to torque slip clutch. Drilling up to 25 / 30 mm in steel / aluminium with carbide core drills. Drilling up to 54 mm in steel with a carbide hole saw. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1172_GB. Supplied with Extra handle, centre drill, cutting spray, and tool case. Note See No. 07 5132 for suitable carbide core drills. TiAIN-coated carbide core drills, carbide hole saws, and carbide hole saws for pipes are available on request. Manufacturer ID 72710161 i075130 Hand-held core drilling machine Manufacturer's designation Power consumption Maximum speed Maximum bore 0 in steel / wood Tool holder Weight Maximum vibration to EN W rpm mm kg m/s2 KBH 25 1200 0-520 25/ -QuickIN PLUS 3.3 <2.5 075132 Drill 0 mm 14 15 16 17 18 19 20 21 22 23 24 25 s 07 5132 Carbide core drills for KBH25 1075133 Centre drills 075133 '( Bench drill Version Size 14; 16- With Size6 - 12- With 07 6561 - With til 91. High-speed, durable and precise bench drill. AC motor 230 V, 50 Hz. Digital speed display. Stepless speed adjustment. Reversible. Swing-up spindle guard with electrical interlock. On/Off button with lockable EMERGENCY STOP flap. 24-month warranty, 20-year spare parts availability guarantee. Without drill chuck Attention German version. Order free GB adapter plug No. 08 1172_GB. rigid and height-adjustable and swivelling machine table, height-adjustable and swivelling drill head, digital drill depth display. Maximum drill 0 in steel mm 6 9 12 14 16 3 07 6560 ALZTR0NIC bench drill a- (LCfLi ALZ IRONIC bench drill 3 U/ ODO wjt display Manufacturer's designation ALZTRONIC 6 ALZTRONIC 9 ALZTRONIC 12 ALZTRONIC 14 ALZTRONIC 16 Power consumption W 540 540 540 540 540 Maximum speed rpm 700-10000 390-6500 250-5000 230-4000 100-2000 Maximum machine tap 0 in steel M6 M8 M10 M10 M12 Tool holder B 16 B 16 B 16 MK2 MK2 Spindle stroke mm 40 40 40 80 80 Series mm 200 200 200 190 190 Column 0 mm 50 50 50 65 65 Machine baseplate usable area widthxheight mm 300x240 300x240 300x240 300x240 300x240 Spindle-base plate distance minimum/maximum mm 110/250 110/250 110/250 437 / 437 437/437 Machine table usable area lengthxwidth mm - 300X240 300X240 Spindle-machine table distance minimum/maximum mm - 75/357 75/357 Feed Manual Manual Manual Manual Manual Drill head height adjustment Handwheel Handwheel Handwheel Machine table height adjustment - Hand crank Hand crank Weight kg 64 64 64 83 83 075130 076560_14/_16 1488 Main catalogue Hoffmann Group 46
