1489 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1489

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1489 1489 ENG Lab2u

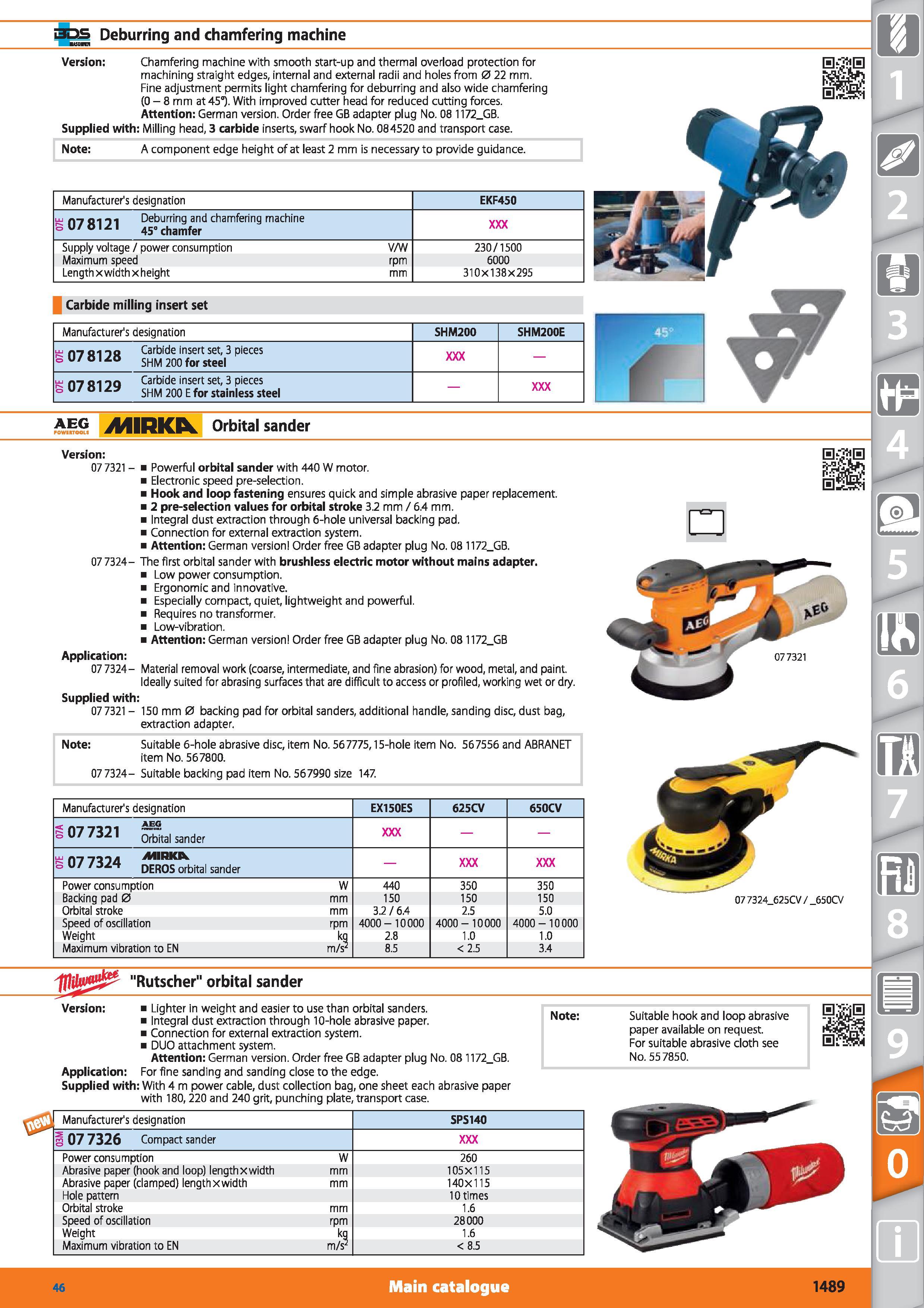

Deburring and chamfering machine Version Chamfering machine with smooth start-up and thermal overload protection for machining straight edges, internal and external radii and holes from 0 22 mm. Fine adjustment permits light chamfering for deburring and also wide chamfering (0 - 8 mm at 45°). With improved cutter head for reduced cutting forces. Attention German version. Order free GB adapter plug No. 08 1172_GB. Supplied with Milling head, 3 carbide inserts, swarf hook No. 084520 and transport case. Note A component edge height of at least 2 mm is necessary to provide guidance. Manufacturer's designation EKF450 m oni Deburring and chamfering machine B 078121 45° chamfer Supply voltage / power consumption V/W 230/1500 Maximum speed rpm 6000 Length x width x height mm 310x138x295 Carbide milling insert set Manufacturer's designation SHM200 SHM200E m m ono Carbide insert set, 3 pieces o M/oiZo SHM 200 for steel m n-j 01 nn Carbide insert set, 3 pieces Ou/Ol Z.V SHM 200 E for stainless steel AEG POWERTOOLS VMIRKEk Orbital sander Version 07 7321 - Powerful orbital sander with 440 W motor. Electronic speed pre-selection. Hook and loop fastening ensures quick and simple abrasive paper replacement. 2 pre-selection values for orbital stroke 3.2 mm / 6.4 mm. Integral dust extraction through 6-hole universal backing pad. Connection for external extraction system. Attention German version Order free GB adapter plug No. 08 1172_GB. 07 7324- The first orbital sander with brushless electric motor without mains adapter. Low power consumption. Ergonomic and innovative. Especially compact, quiet, lightweight and powerful. Requires no transformer. Low-vibration. Attention German version Order free GB adapter plug No. 081172_GB Application 07 7324- Material removal work (coarse, intermediate, and fine abrasion) for wood, metal, and paint. Ideally suited for abrasing surfaces that are difficult to access or profiled, working wet or dry. Supplied with 07 7321 - 150 mm 0 backing pad for orbital sanders, additional handle, sanding disc, dust bag, extraction adapter. Note Suitable 6-hole abrasive disc, item No. 567775,15-hole item No. 56 7556 and ABRANET item No. 567800. 07 7324- Suitable backing pad item No. 567990 size 147. Manufacturer's designation EX150ES 625CV 650CV s 07 7321 0ryta sander B 07 7324 deros orbital sander Power consumption W 440 350 350 Backing pad 0 mm 150 150 150 Orbital stroke mm 3.2/6.4 2.5 5.0 Speed of oscillation rpm 4000-10000 4000-10000 4000- 10000 Weight kg m/s5 2.8 1.0 1.0 Maximum vibration to EN 8.5 < 2.5 3.4 "Rutscher" orbital sander Version Lighter in weight and easier to use than orbital sanders. Integral dust extraction through 10-hole abrasive paper. Connection for external extraction system. DUO attachment system. Attention German version. Order free GB adapter plug No. 081172_GB. Application For fine sanding and sanding close to the edge. Supplied with With 4 m power cable, dust collection bag, one sheet each abrasive paper with 180,220 and 240 grit, punching plate, transport case. Note Suitable hook and loop abrasive paper available on request. For suitable abrasive cloth see No. 55 7850. Manufacturer's designation SPS140 g 07 7326 Compact sander Power consumption W 260 Abrasive paper (hook and loop) lengthxwidth mm 105X115 Abrasive paper (clamped) lenqthx width mm 140X115 Hole pattern 10 times Orbital stroke mm 1.6 Speed of oscillation rpm 28000 Weight kg m/s5 1.6 Maximum vibration to EN < 8.5 Main catalogue Hoffmann Group 46 1489
