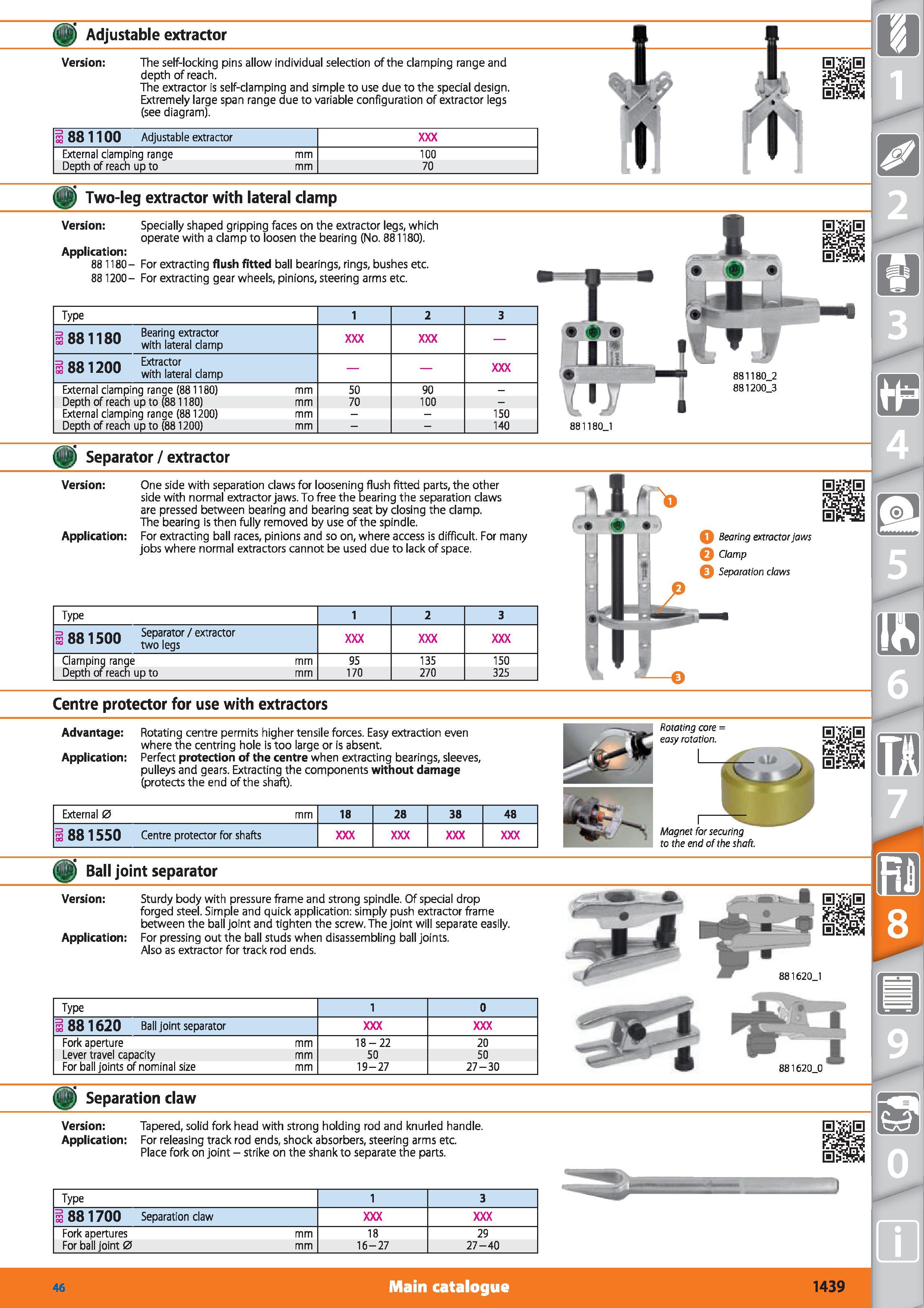

Adjustable extractor Version The self-locking pins allow individual selection of the clamping range and depth of reach. The extractor is self-damping and simple to use due to the special design. Extremely large span range due to variable configuration of extractor legs (see diagram). 3 88 1100 Adjustable extractor External clamping range mm 100 Depth of reach up to mm 70 Two-leg extractor with lateral clamp Version Specially shaped gripping faces on the extractor legs, which operate with a clamp to loosen the bearing (No. 881180). Application 88 1180- For extracting flush fitted ball bearings, rings, bushes etc. 88 1200- For extracting gear wheels, pinions, steering arms etc. Type 1 2 3 ngii on Bearing extractor 00 with lateral clamp s 881200 Xraldimp External clamping range (881180) mm 50 90 - Depth of reach up to (881180) mm 70 100 External clamping range (881200) mm 150 Depth of reach up to (881200) mm - 140 Separator / extractor Version One side with separation claws for loosening flush fitted parts, the other side with normal extractor jaws. To free the bearing the separation claws are pressed between bearing and bearing seat by closing the clamp. The bearing is then fully removed by use of the spindle. Application For extracting ball races, pinions and so on, where access is difficult. For many jobs where normal extractors cannot be used due to lack of space. Type 1 2 3 => oo 1 cnn Separator / extractor 3 88 15UU egs Clamping range mm Depth of reach up to mm 95 135 150 170 270 325 Q Bearing extractor jaws Clamp 5 Separation claws Centre protector for use with extractors Advantage Rotating centre permits higher tensile forces. Easy extraction even where the centring hole is too large or is absent. Application Perfect protection of the centre when extracting bearings, sleeves, pulleys and gears. Extracting the components without damage (protects the end of the shaft). External 0 mm 18 28 38 48 3 88 1550 Centre protector for shafts Rotating core easy rotation. Magnet for securing to the end of the shaft. a Ball joint separator Version Sturdy body with pressure frame and strong spindle. Of special drop forged steel. Simple and quick application simply push extractor frame between the ball joint and tighten the screw. The joint will separate easily. Application For pressing out the ball studs when disassembling ball joints. Also as extractor for track rod ends. M 881620J Type 1 0 3 88 1620 Ball joint separator Fork aperture mm 18-22 20 Lever travel capacity mm 50 50 For ball joints of nominal size mm 19-27 27-30 31620_0 Separation claw Version Tapered, solid fork head with strong holding rod and knurled handle. Application For releasing track rod ends, shock absorbers, steering arms etc. Place fork on joint - strike on the shank to separate the parts. Type 1 3 3 881700 Separation claw Fork apertures mm 18 29 For ball joint 0 mm 16-27 27-40 m Main catalogue Hoffmann Group 46 1439
