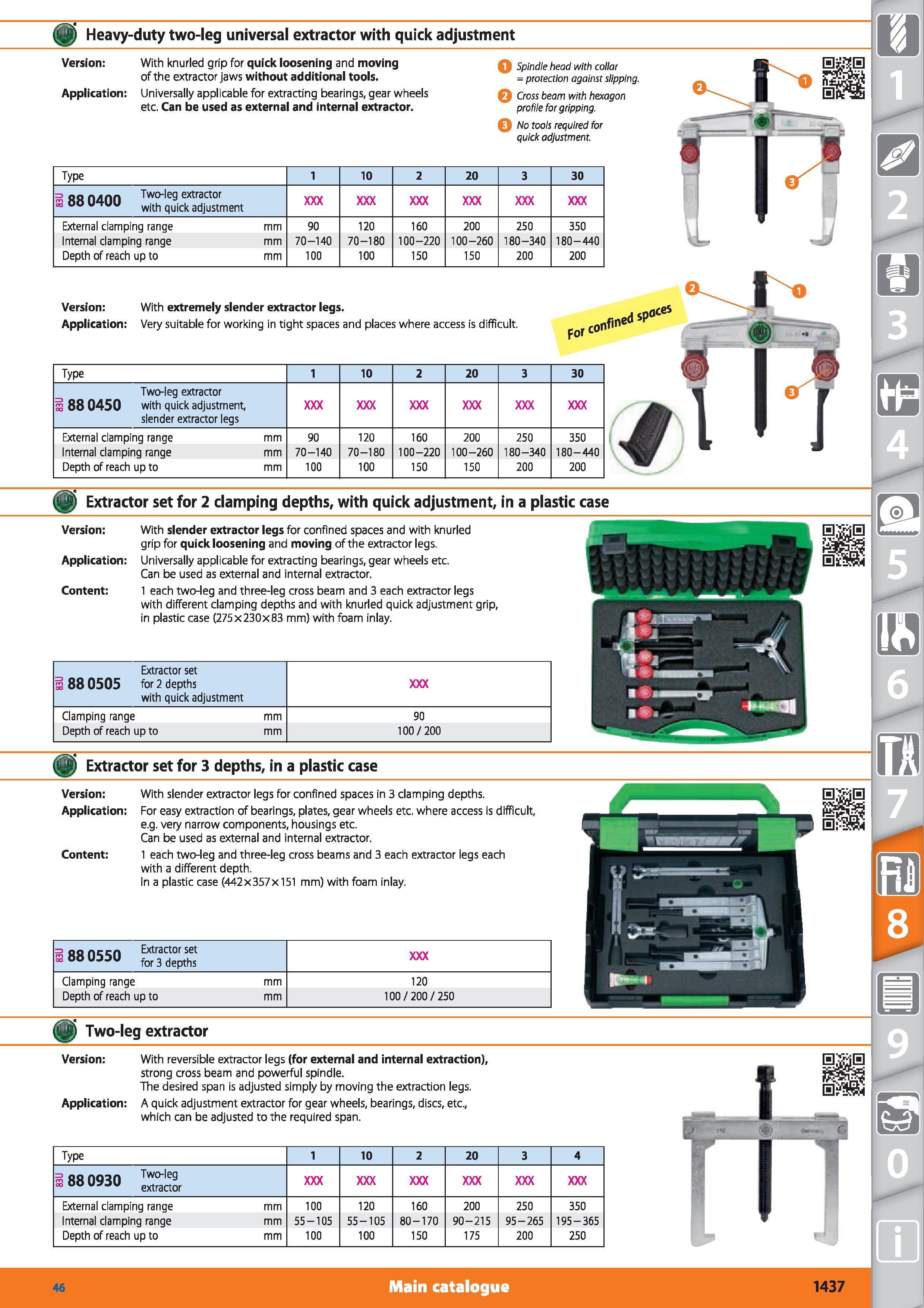

Heavy-duty two-leg universal extractor with quick adjustment Version With knurled grip for quick loosening and moving of the extractor jaws without additional tools. Application Universally applicable for extracting bearings, gear wheels etc. Can be used as external and internal extractor. Q Spindle head with collar protection against slipping. Q Cross beam with hexagon profile for gripping. Q No tools required for quick adjustment. Type 1 10 2 20 3 30 3 oo nAnn Tw°-leg extractor with quick adjustment External clamping range mm 90 120 160 200 250 350 Internal clamping range mm 70-140 70-180 100-220 100-260 180-340 180-440 Depth of reach up to mm 100 100 150 150 200 200 Version With extremely slender extractor legs. Application Very suitable for working in tight spaces and places where access is difficult. Type 1 10 2 20 3 30 Two-leg extractor 3 88 0450 with quick adjustment, slender extractor legs External clamping range mm 90 120 160 200 250 350 Internal clamping range mm 70-140 70-180 100-220 100-260 180-340 180-440 Depth of reach up to mm 100 100 150 150 200 200 Extractor set for 2 clamping depths, with quick adjustment, in a plastic case Version With slender extractor legs for confined spaces and with knurled grip for quick loosening and moving of the extractor legs. Application Universally applicable for extracting bearings, gear wheels etc. Can be used as external and internal extractor. Content 1 each two-leg and three-leg cross beam and 3 each extractor legs with different clamping depths and with knurled quick adjustment grip, in plastic case (275 x 230x 83 mm) with foam inlay. Extractor set S 88 0505 for 2 depths with quick adjustment Clamping range mm 90 Depth of reach up to mm 100 / 200 Extractor set for 3 depths, in a plastic case Version With slender extractor legs for confined spaces in 3 clamping depths. Application For easy extraction of bearings, plates, gear wheels etc. where access is difficult, e.g. very narrow components, housings etc. Can be used as external and internal extractor. Content 1 each two-leg and three-leg cross beams and 3 each extractor legs each with a different depth. In a plastic case (442x357x 151 mm) with foam inlay. Saamzcn Extractor set oo 88 0550 for 3 depths Clamping range mm 120 Depth of reach up to mm 100/200/250 Two-leg extractor Version With reversible extractor legs (for external and internal extraction), strong cross beam and powerful spindle. The desired span is adjusted simply by moving the extraction legs. Application A quick adjustment extractor for gear wheels, bearings, discs, etc., which can be adjusted to the required span. Type 1 10 2 20 3 4 8880930 External clamping range mm 100 120 160 200 250 350 Internal clamping range mm 55-105 55-105 80-170 90-215 95-265 195-365 Depth of reach up to mm 100 100 150 175 200 250 Main catalogue Hoffmann Group 46 1437
