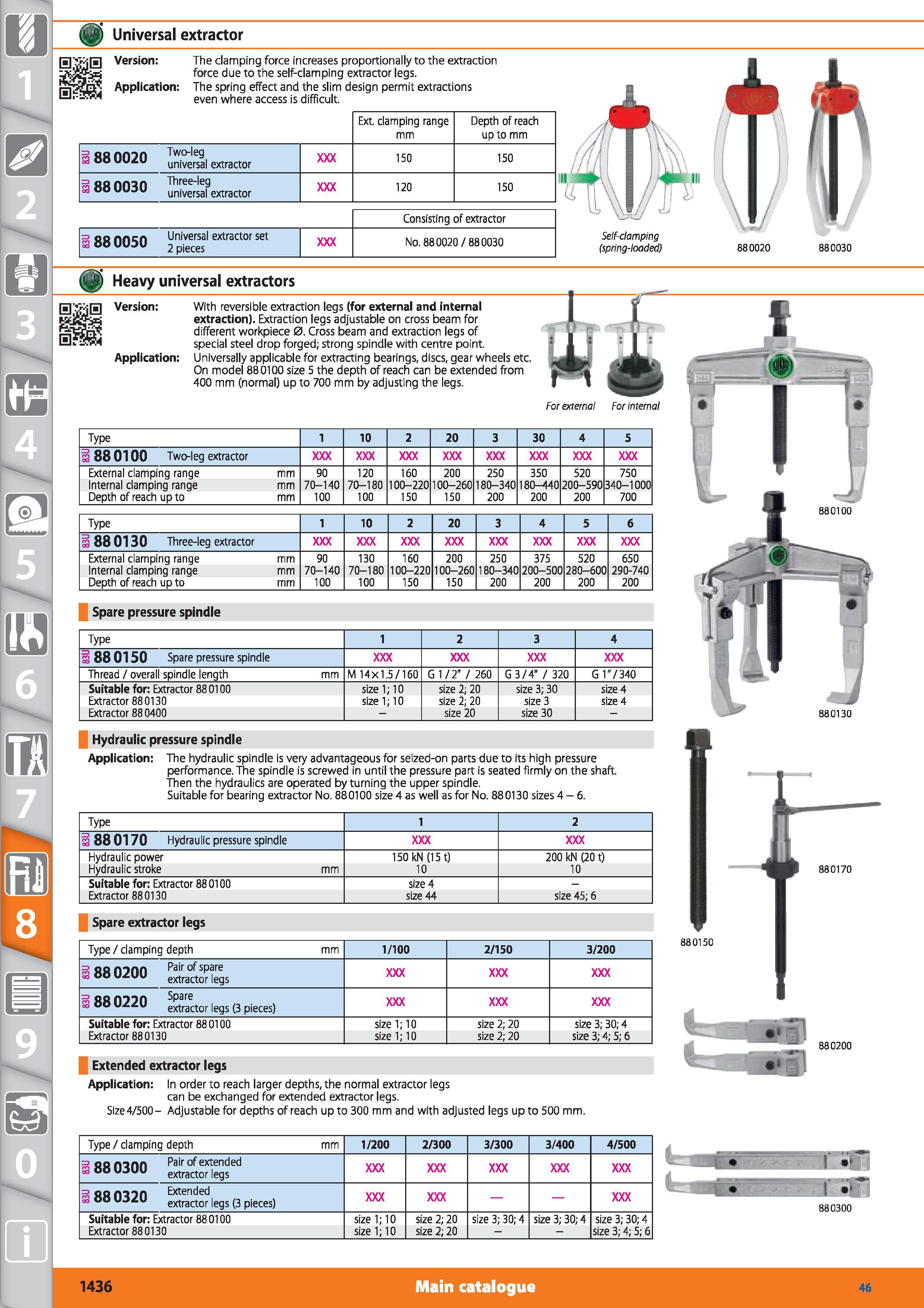

1 Universal extractor The clamping force increases proportionally to the extraction force due to the self-clamping extractor legs. Application The spring effect and the slim design permit extractions even where access is difficult. Ext. clamping range mm Depth of reach up to mm 3 88 0020 Two-leg universal extractor 150 150 3 88 0030 Three-leg universal extractor 120 150 Consisting of extractor 1880050 Universal extractor set °° 2 pieces No. 880020 / 880030 Self-damping (spring-loaded) 880020 880030 Heavy universal extractors Version With reversible extraction legs (for external and internal extraction). Extraction legs adjustable on cross beam for different workpiece 0. Cross beam and extraction legs of special steel drop forged; strong spindle with centre point. Application Universally applicable for extracting bearings, discs, gear wheels etc. On model 880100 size 5 the depth of reach can be extended from 400 mm (normal) up to 700 mm by adjusting the legs. (Ul to For external For internal Type 1 10 2 20 3 30 4 5 S 88 0100 Two-leg extractor External clamping range mm 90 120 160 200 250 350 520 750 Internal clamping range mm 70-140 70-180 100-220 100-260 180-340 180-440 200-590 340-1000 Depth of reach up to mm 100 100 150 150 200 200 200 700 Type 1 10 2 20 3 4 5 6 3 88 0130 Three-leg extractor External clamping range mm 90 130 160 200 250 375 520 650 Internal clamping range mm 70-140 70-180 100-220 100-260 180-340 200-500 280-600 290-740 Depth of reach up to mm 100 100 150 150 200 200 200 200 Spare pressure spindle Type 1 2 3 4 3 88 0150 Spare pressure spindle Thread / overall spindle length mm M 14x1.5/160 G 1/2" / 260 G 3/4" / 320 G1"/340 Suitable for Extractor 880100 size 1; 10 size 2; 20 size 3; 30 size 4 Extractor 880130 size 1; 10 size 2; 20 size 3 size 4 Extractor 880400 - size 20 size 30 - Hydraulic pressure spindle Application The hydraulic spindle is very advantageous for seized-on parts due to its high pressure performance. The spindle is screwed in until the pressure part is seated firmly on the shaft. Then the hydraulics are operated by turning the upper spindle. Suitable for bearing extractor No. 880100 size 4 as well as for No. 880130 sizes 4-6. Type 1 2 3 88 0170 Hydraulic pressure spindle Hydraulic power 150 kN (151) 200 kN (201) Hydraulic stroke mm 10 10 Suitable for Extractor 880100 size 4 Extractor 880130 size 44 size 45; 6 Spare extractor legs Type / clamping depth mm 1/100 2/150 3/200 3 880200 Pair of spare extractor legs 3 880220 Spare extractor legs (3 pieces) Suitable for Extractor 880100 size 1; 10 size 2; 20 size 3; 30; 4 Extractor 880130 size 1; 10 size 2; 20 size 3; 4; 5; 6 Extended extractor legs Application In order to reach larger depths, the normal extractor legs can be exchanged for extended extractor legs. Size4/500- Adjustable for depths of reach up to 300 mm and with adjusted legs up to 500 mm. 880200 Type / clamping depth mm 1/200 2/300 3/300 3/400 4/500 1880300 3 880320 “legs (3 pieces) Suitable for Extractor 880100 size 1; 10 size 2; 20 size 3; 30; 4 size 3; 30; 4 size 3; 30; 4 Extractor 880130 size 1; 10 size 2; 20 size 3; 4; 5; 6 I iffi 880300 880100 880150 880170 1436 Main catalogue Hoffmann Group 46
