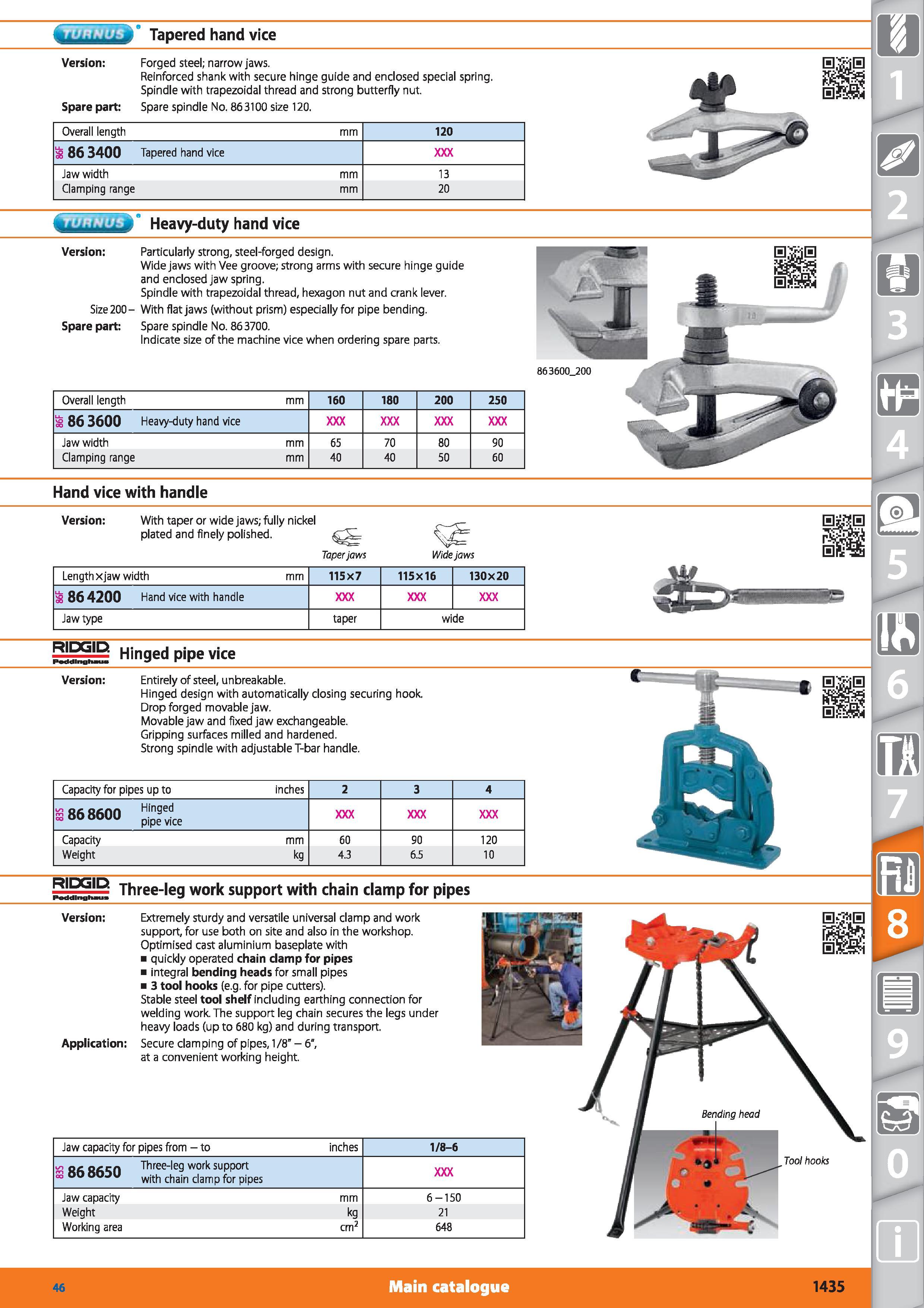

Tapered hand vice Version Forged steel; narrow jaws. Reinforced shank with secure hinge guide and enclosed special spring. Spindle with trapezoidal thread and strong butterfly nut. Spare part Spare spindle No. 863100 size 120. Overall length mm 120 86 3400 Tapered hand vice Jaw width mm 13 Clamping range mm 20 Heavy-duty hand vice Version Particularly strong, steel-forged design. Wide jaws with Vee groove; strong arms with secure hinge guide and enclosed jaw spring. Spindle with trapezoidal thread, hexagon nut and crank lever. Size 200- With flat jaws (without prism) especially for pipe bending. Spare part Spare spindle No. 863700. Indicate size of the machine vice when ordering spare parts. Overall length mm 160 180 200 250 86 3600 Heavy-duty hand vice Jaw width mm 65 70 80 90 Clamping range mm 40 40 50 60 Hand vice with handle Version With taper or wide jaws; fully nickel plated and finely polished. Taper jaws Wide jaws Length xjaw width mm 115X7 115X16 130X20 86 4200 Hand vice with handle Jaw type taper wide RIDGID Hinged pipe vice Version Entirely of steel, unbreakable. Hinged design with automatically closing securing hook. Drop forged movable jaw. Movable jaw and fixed jaw exchangeable. Gripping surfaces milled and hardened. Strong spindle with adjustable T-bar handle. Capacity for pipes up to inches 2 3 4 & 86 8600 Hinged pipe vice Capacity mm 60 90 120 Weight kg 4.3 6.5 10 Three-leg work support with chain clamp for pipes Jaw capacity for pipes from - to 1868650 Three-leg work support with chain clamp for pipes inches 1/8-6 Jaw capacity Weight Working area 6-150 21 648 Version Extremely sturdy and versatile universal clamp and work support, for use both on site and also in the workshop. Optimised cast aluminium baseplate with quickly operated chain clamp for pipes integral bending heads for small pipes 3 tool hooks (e.g. for pipe cutters). Stable steel tool shelf including earthing connection for welding work The support leg chain secures the legs under heavy loads (up to 680 kg) and during transport. Application Secure clamping of pipes, 1/8” - 6", at a convenient working height. Tool hooks Main catalogue Hoffmann Group 46 1435
