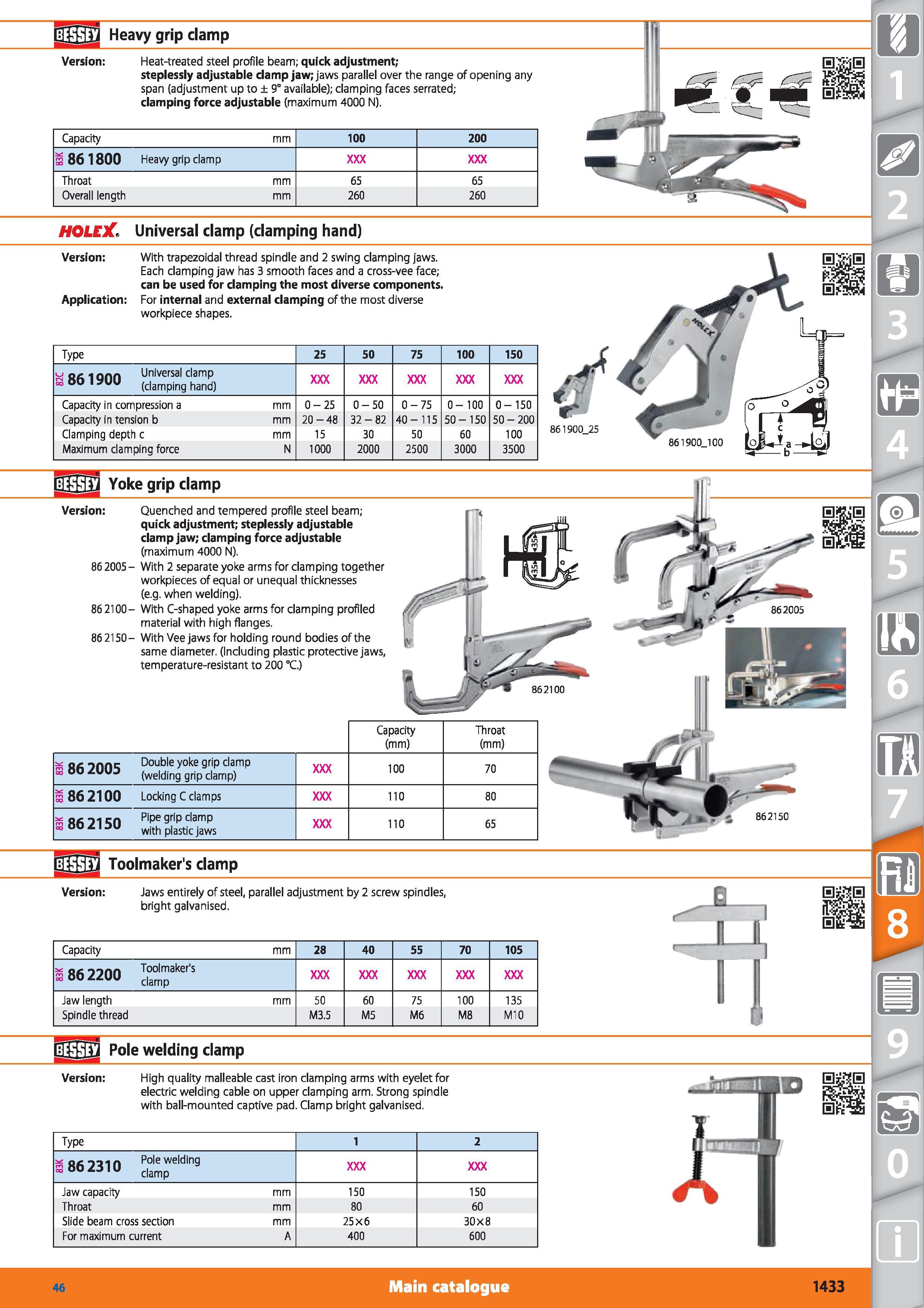

E jJ Heavy grip damp Version Heat-treated steel profile beam; quick adjustment; steplessly adjustable clamp jaw; jaws parallel over the range of opening any span (adjustment up to ± 9° available); clamping faces serrated; clamping force adjustable (maximum 4000 N). Capacity mm 100 200 3 86 1800 Heavy grip clamp Throat mm 65 65 Overall length mm 260 260 HOLEX Universal damp (damping hand) Version Application With trapezoidal thread spindle and 2 swing clamping jaws. Each clamping jaw has 3 smooth faces and a cross-vee face; can be used for clamping the most diverse components, For internal and external clamping of the most diverse workpiece shapes. Type 25 50 75 100 150 oe. i nnn Universal clamp s 861900 (damping handM, Capacity in compression a mm 0-25 0-50 0-75 0-100 0-150 Capacity in tension b mm 20-48 32-82 40-115 50-150 50 - 200 Clamping depth c mm 15 30 50 60 100 Maximum clamping force N 1000 2000 2500 3000 3500 Effiin Yoke grip damp Version Quenched and tempered profile steel beam; quick adjustment; steplessly adjustable clamp jaw; clamping force adjustable (maximum 4000 N). 86 2005 - With 2 separate yoke arms for clamping together workpieces of equal or unequal thicknesses (e.g. when welding). 86 2100- With C-shaped yoke arms for clamping profiled material with high flanges. 86 2150- With Vee jaws for holding round bodies of the same diameter. (Including plastic protective jaws, temperature-resistant to 200 °C.) Capacity (mm) Throat (mm) 186 2005 Double yoke grip clamp (welding grip clamp) 100 70 1862100 Locking C clamps 110 80 s 862150 Pipe grip clamp with plastic jaws 110 65 Ef0J Toolmaker's damp Version Jaws entirely of steel, parallel adjustment by 2 screw spindles, bright galvanised. Capacity mm 28 40 55 70 105 s 86 2200 Toolmaker's clamp Jaw length mm 50 60 75 100 135 Spindle thread M3.5 M5 M6 M8 M10 EfflO Pole welding damp Version High quality malleable cast iron clamping arms with eyelet for electric welding cable on upper clamping arm. Strong spindle with ball-mounted captive pad. Clamp bright galvanised. Type 1 2 3 86 2310 Pole welding clamp Jaw capacity mm 150 150 Throat mm 80 60 Slide beam cross section mm 25X6 30X8 For maximum current A 400 600 Main catalogue Hoffmann Group 46 1433
