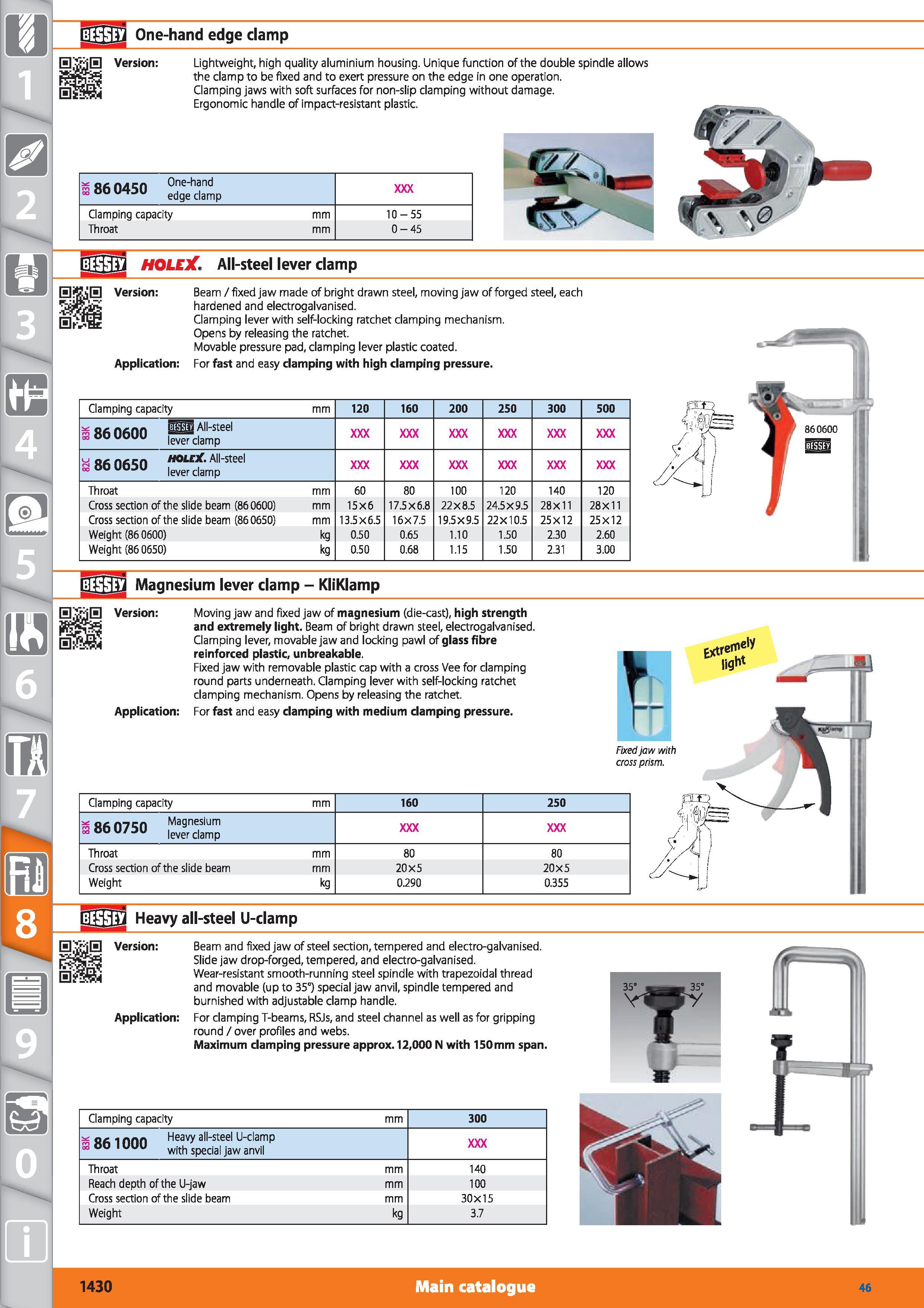

1 One-hand edge damp Version Lightweight, high quality aluminium housing. Unique function of the double spindle allows the clamp to be fixed and to exert pressure on the edge in one operation. Clamping jaws with soft surfaces for non-slip clamping without damage. Ergonomic handle of impact-resistant plastic. a 86 0450 Clamping capacity mm 10-55 Throat mm 0-45 0IS3B HOLEX All-steel lever clamp jH Version Application Beam / fixed jaw made of bright drawn steel, moving jaw of forged steel, each hardened and electrogalvanised. Clamping lever with self-locking ratchet clamping mechanism. Opens by releasing the ratchet. Movable pressure pad, clamping lever plastic coated. For fast and easy clamping with high clamping pressure. Clamping capacity mm 120 160 200 250 300 500 860600 3 860650 Throat mm 60 80 100 120 140 120 Cross section of the slide beam (860600) mm 15X6 17.5X6.8 22x8.5 24.5X9.5 28X11 28X11 Cross section of the slide beam (860650) mm 13.5X6.5 16X7.5 19.5X9.5 22X10.5 25X12 25X12 Weight (860600) kg 0.50 0.65 1.10 1.50 2.30 2.60 Weight (860650) kg 0.50 0.68 1.15 1.50 2.31 3.00 860600 I EffiD Magnesium lever clamp - KliKlamp jH Version Application Moving jaw and fixed jaw of magnesium (die-cast), high strength and extremely light. Beam of bright drawn steel, electrogalvanised. Clamping lever, movable jaw and locking pawl of glass fibre reinforced plastic, unbreakable. Fixed jaw with removable plastic cap with a cross Vee for clamping round parts underneath. Clamping lever with self-locking ratchet clamping mechanism. Opens by releasing the ratchet. For fast and easy clamping with medium clamping pressure. ExtfeH y Fixed jaw with cross prism. Clamping capacity mm 160 250 S 86 0750 EX" Throat mm 80 80 Cross section of the slide beam mm 20X5 20X5 Weight kg 0.290 0.355 Heavy all-steel U-damp El Version Application Beam and fixed jaw of steel section, tempered and electro-galvanised. Slide jaw drop-forged, tempered, and electro-galvanised. Wear-resistant smooth-running steel spindle with trapezoidal thread and movable (up to 35°) special jaw anvil, spindle tempered and burnished with adjustable clamp handle. For clamping T-beams, RSJs, and steel channel as well as for gripping round / over profiles and webs. Maximum clamping pressure approx. 12,000 N with 150mm span. 35° 35° Clamping capacity mm 300 oc i nnn Heavy all-steel U-clamp S 86 1UUU with specia jaw anvi Throat mm 140 Reach depth of the U-jaw mm 100 Cross section of the slide beam mm 30x15 Weight kg 3.7 1430 Main catalogue Hoffmann Group 46
