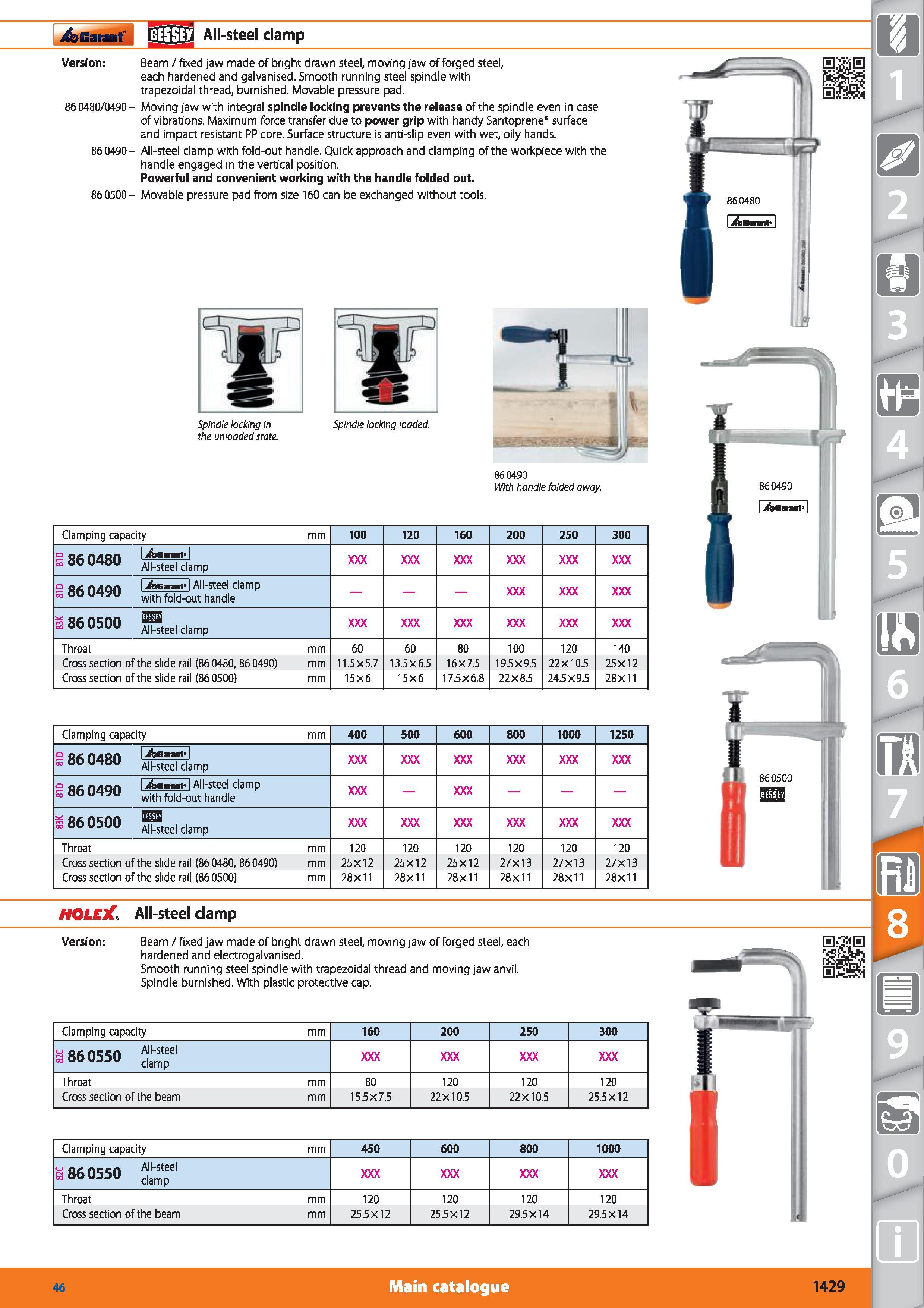

Garant ETffifl All-steel clamp Version 860480/0490- 86 0490- 860500- Beam / fixed jaw made of bright drawn steel, moving jaw of forged steel, each hardened and galvanised. Smooth running steel spindle with trapezoidal thread, burnished. Movable pressure pad. Moving jaw with integral spindle locking prevents the release of the spindle even in case of vibrations. Maximum force transfer due to power grip with handy Santoprene" surface and impact resistant PP core. Surface structure is anti-slip even with wet, oily hands. All-steel clamp with fold-out handle. Quick approach and clamping of the workpiece with the handle engaged in the vertical position. Powerful and convenient working with the handle folded out. Movable pressure pad from size 160 can be exchanged without tools. Spindle locking In the unloaded state Spindle locking loaded. 860490 With handle folded away. 860490 Clamping capacity mm 100 120 160 200 250 300 SSLP ne- ndon 1 i&Gmnt” 1 All-steel clamp 5 oo with fddK)ut hand e B 86 0500 Throat mm 60 60 80 100 120 140 Cross section of the slide rail (860480,860490) mm 11.5X5.7 13.5X6.5 16X7.5 19.5X9.5 22X10.5 25X12 Cross section of the slide rail (860500) mm 15X6 15X6 17.5X6.8 22x8.5 24.5X9.5 28X11 HOLEX All-steel damp Version Beam / fixed jaw made of bright drawn steel, moving jaw of forged steel, each hardened and electrogalvanised. Smooth running steel spindle with trapezoidal thread and moving jaw anvil. Spindle burnished. With plastic protective cap. Clamping capacity mm 400 500 600 800 1000 1250 SSLP a ninn 1 Amr 1 All-steel damp 5 OO with fo d_out hand e B 86 0500 “e c alnp Throat mm 120 120 120 120 120 120 Cross section of the slide rail (860480,860490) mm 25X12 25X12 25X12 27X13 27X13 27X13 Cross section of the slide rail (860500) mm 28X11 28X11 28X11 28X11 28X11 28X11 Clamping capacity mm 160 200 250 300 a 860550 Throat mm 80 120 120 120 Cross section of the beam mm 15.5X7.5 22x10.5 22x10.5 25.5X12 Clamping capacity mm 450 600 800 1000 <-t o nccn All-steel a 86 0550 c amp Throat mm 120 120 120 120 Cross section of the beam mm 25.5X12 25.5X12 29.5X14 29.5X14 m Main catalogue Hoffmann Group 46 1429
