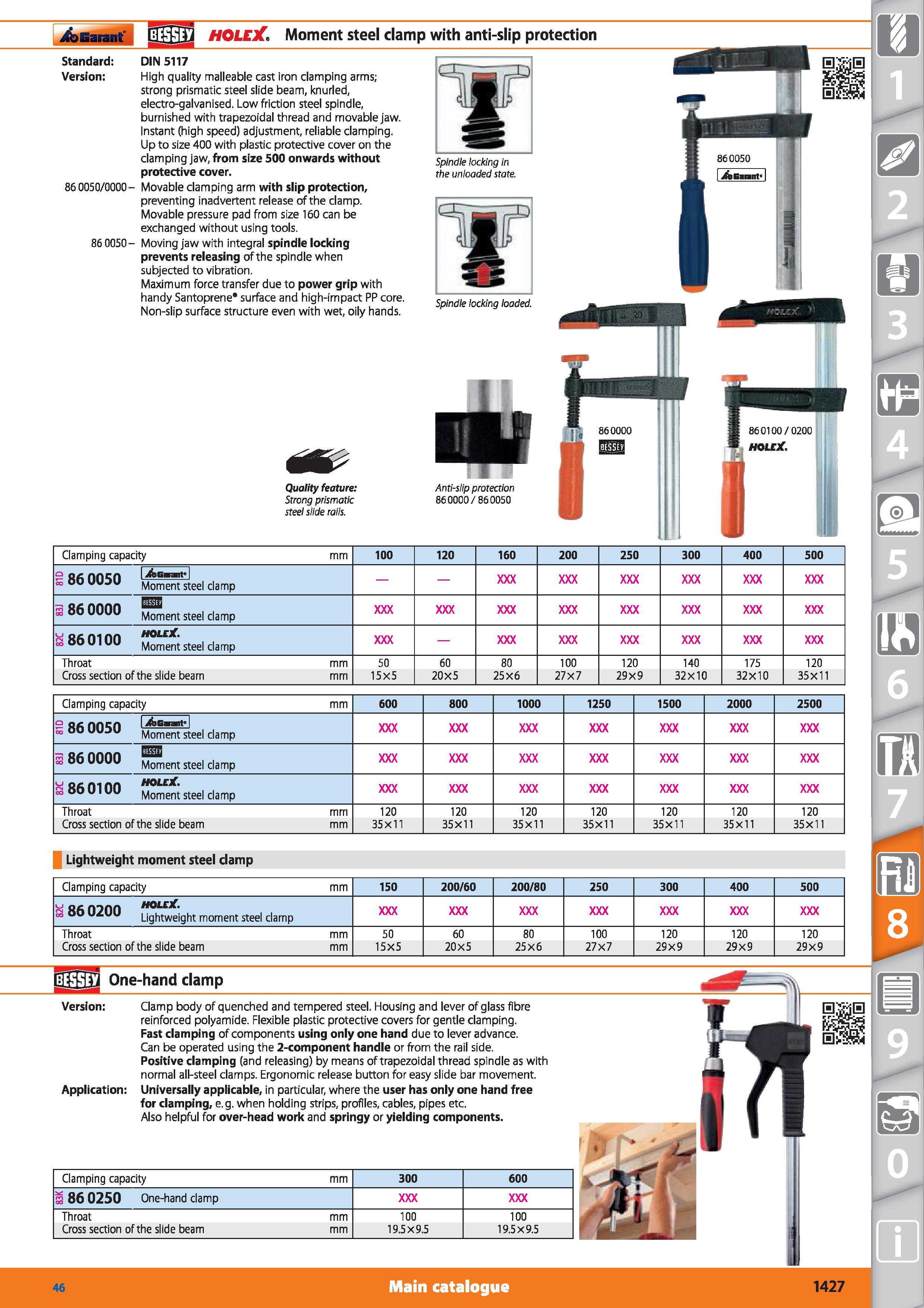

Garant Etfll HOLEX Moment steel clamp with anti-slip protection Standard DIN 5117 Version High quality malleable cast iron clamping arms; strong prismatic steel slide beam, knurled, electro-galvanised. Low friction steel spindle, burnished with trapezoidal thread and movable jaw. Instant (high speed) adjustment, reliable clamping. Up to size 400 with plastic protective cover on the clamping jaw, from size 500 onwards without protective cover. 860050/0000- Movable clamping arm with slip protection, preventing inadvertent release of the clamp. Movable pressure pad from size 160 can be exchanged without using tools. 86 0050- Moving jaw with integral spindle locking prevents releasing of the spindle when subjected to vibration. Maximum force transfer due to power grip with handy Santoprene surface and high-impact PP core. Non-slip surface structure even with wet, oily hands. Spindle locking in the unloaded state. Spindle locking loaded. Quality feature Strong prismatic steel slide rails. Anti-slip protection 860000/860050 Clamping capacity mm 100 120 160 200 250 300 400 500 86 0050 Moment steel clamp a 86 0000 Moment steel clamp 860100 HOLEX Moment steel clamp Throat mm 50 60 80 100 120 140 175 120 Cross section of the slide beam mm 15X5 20X5 25X6 27X7 29X9 32X10 32X10 35X11 Clamping capacity mm 600 800 1000 1250 1500 2000 2500 860050 Moment steel clamp s 86 0000 Moment steel clamp s 860100 holcjC. Moment steel clamp Throat mm 120 120 120 120 120 120 120 Cross section of the slide beam mm 35x11 35x11 35x11 35x11 35x11 35x11 35x11 Lightweight moment steel clamp Clamping capacity mm 150 200/60 200/80 250 300 400 500 u of mnn holejC, OO UZUU Lightweight moment steel clamp Throat mm 50 60 80 100 120 120 120 Cross section of the slide beam mm 15X5 20X5 25X6 27X7 29X9 29X9 29X9 EfflO One-hand clamp Version Clamp body of quenched and tempered steel. Housing and lever of glass fibre reinforced polyamide. Flexible plastic protective covers for gentle clamping. Fast clamping of components using only one hand due to lever advance. Can be operated using the 2-component handle or from the rail side. Positive clamping (and releasing) by means of trapezoidal thread spindle as with normal all-steel clamps. Ergonomic release button for easy slide bar movement. Application Universally applicable, in particular, where the user has only one hand free for damping, e.g. when holding strips, profiles, cables, pipes etc. Also helpful for over-head work and springy or yielding components. Clamping capacity mm 300 600 S 86 0250 One-hand clamp Throat mm 100 100 Cross section of the slide beam mm 19.5x9.5 19.5x9.5 Main catalogue Hoffmann Group 46 1427
