1424 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1424

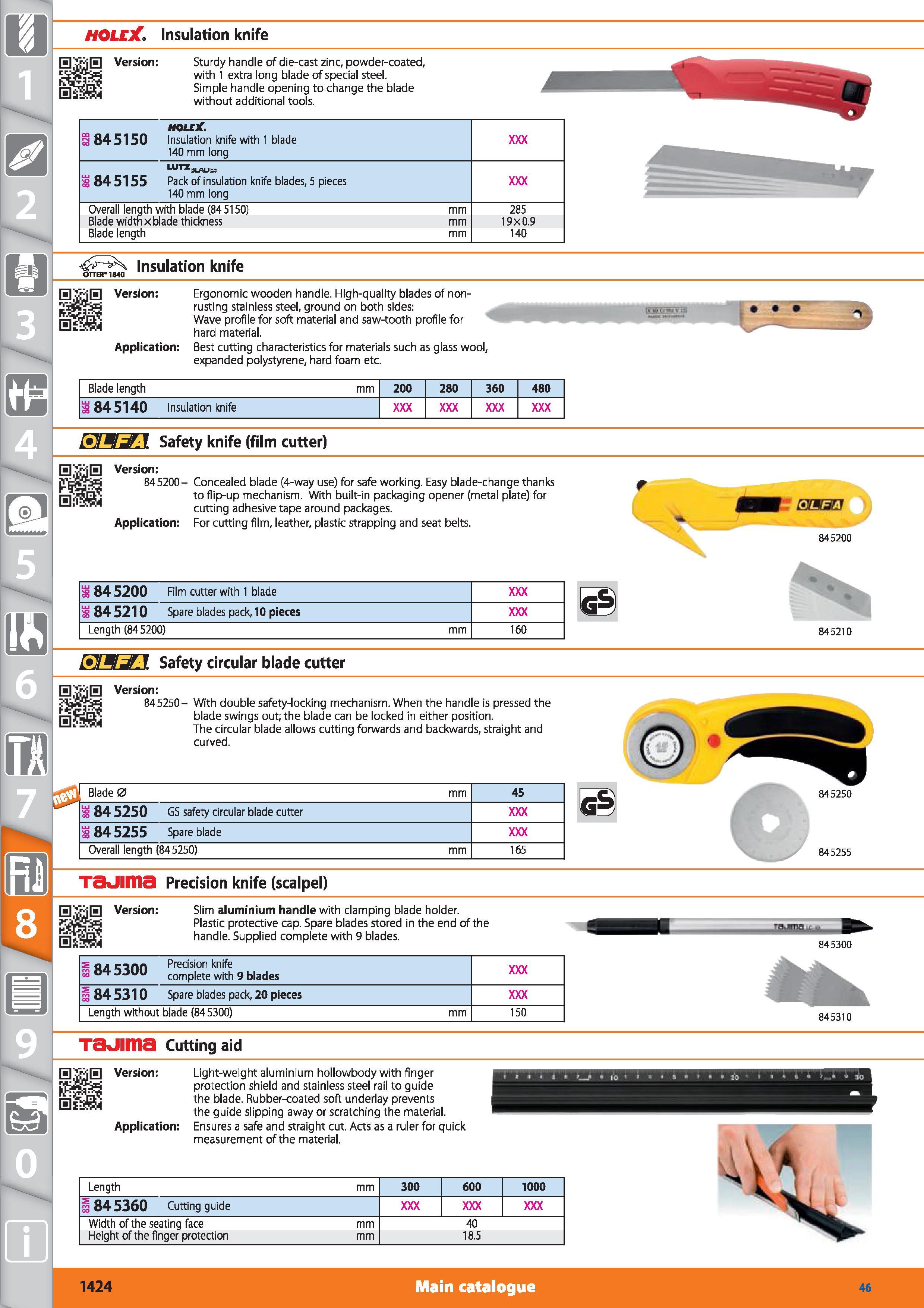

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1424 1424 ENG Lab2u

HOLEX Insulation knife 03S0 Version EallS Sturdy handle of die-cast zinc, powder-coated, with 1 extra long blade of special steel. Simple handle opening to change the blade without additional tools. HOLEX S 84 5150 Insulation knife with 1 blade 140 mm long 8 84 5155 Pack of insulation knife blades, 5 pieces 140 mm long Overall length with blade (845150) mm 285 Blade width x blade thickness mm 19X0.9 Blade length mm 140 Insulation knife OTTER 1840 Version Ergonomic wooden handle. High-quality blades of non- rusting stainless steel, ground on both sides Wave profile for soft material and saw-tooth profile for hard material. Application Best cutting characteristics for materials such as glass wool, expanded polystyrene, hard foam etc. Blade length mm 200 280 360 480 S 84 5140 Insulation knife HWWJ. Safety knife (film cutter) Version 845200- Concealed blade (4-way use) for safe working. Easy blade-change thanks to flip-up mechanism. With built-in packaging opener (metal plate) for cutting adhesive tape around packages. Application For cutting film, leather, plastic strapping and seat belts. saaa 845200 S 84 5200 Film cutter with 1 blade 1 84 5210 Spare blades pack, 10 pieces Length (845200) mm 160 qS 845210 jJWWlJ Safety circular blade cutter Version 845250- With double safety-locking mechanism. When the handle is pressed the blade swings out; the blade can be locked in either position. The circular blade allows cutting forwards and backwards, straight and curved. i) Blade 0 mm 45 s 84 5250 GS safety circular blade cutter s 84 5255 Spare blade Overall length (845250) mm 165 845250 845255 TaUIHia Precision knife (scalpel) Version Slim aluminium handle with clamping blade holder. Plastic protective cap. Spare blades stored in the end of the handle. Supplied complete with 9 blades. TWrna .,. 1845300 Precision knife complete with 9 blades 1845310 Spare blades pack, 20 pieces Length without blade (845300) mm 150 845300 845310 Tauima Cutting aid Version Light-weight aluminium hollowbody with finger protection shield and stainless steel rail to guide the blade. Rubber-coated soft underlay prevents the guide slipping away or scratching the material. Application Ensures a safe and straight cut. Acts as a ruler for quick measurement of the material. Length mm 300 600 1000 1 84 5360 Cutting guide Width of the seating face mm 40 Height of the finger protection mm 18.5 1424 Main catalogue Hoffmann Group 46
