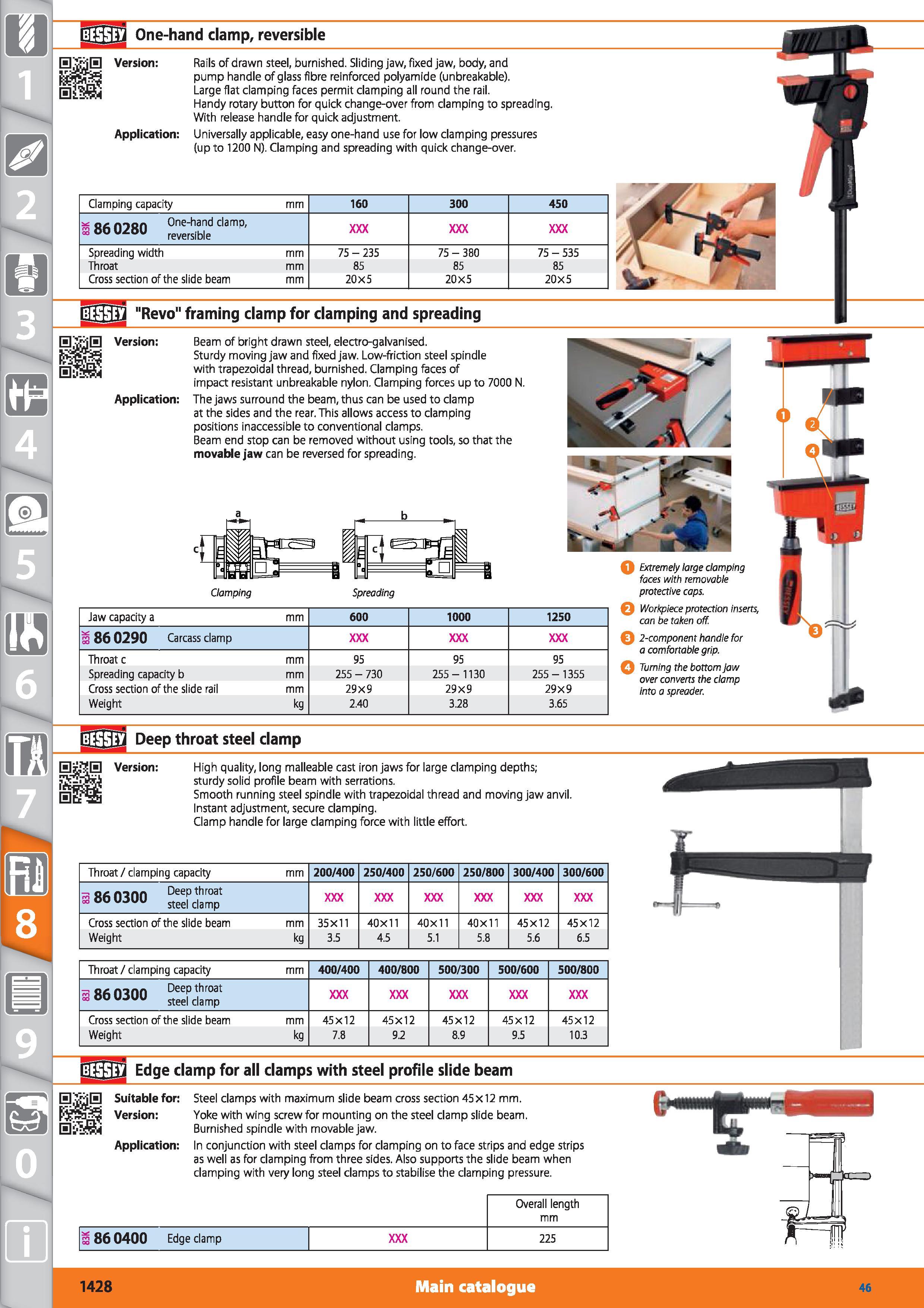

0 3 One-hand clamp, reversible 0 Version Application Rails of drawn steel, burnished. Sliding jaw, fixed jaw, body, and pump handle of glass fibre reinforced polyamide (unbreakable). Large flat clamping faces permit clamping all round the rail. Handy rotary button for quick change-over from clamping to spreading. With release handle for quick adjustment. Universally applicable, easy one-hand use for low clamping pressures (up to 1200 N). Clamping and spreading with quick change-over. Clamping capacity mm 160 300 450 a 86 0280 SJdamp' Spreading width mm 75 - 235 75 - 380 75 - 535 Throat mm 85 85 85 Cross section of the slide beam mm 20X5 20X5 20X5 EfflQ "Revo" framing clamp for clamping and spreading 0 Version Application Beam of bright drawn steel, electro-galvanised. Sturdy moving jaw and fixed jaw. Low-friction steel spindle with trapezoidal thread, burnished. Clamping faces of impact resistant unbreakable nylon. Clamping forces up to 7000 N. The jaws surround the beam, thus can be used to clamp at the sides and the rear. This allows access to clamping positions inaccessible to conventional clamps. Beam end stop can be removed without using tools, so that the movable jaw can be reversed for spreading. Clamping Spreading Jaw capacity a mm 600 1000 1250 S3 86 0290 Carcass clamp Throat c mm 95 95 95 Spreading capacity b mm 255 - 730 255- 1130 255- 1355 Cross section of the slide rail mm 29X9 29X9 29X9 Weight kg 2.40 3.28 3.65 Q Extremely large clamping faces with removable protective caps. Q Workpiece protection inserts, can be taken off. Q 2-component handle for a comfortable grip. Q Turning the bottom jaw over converts the clamp into a spreader. Deep throat steel clamp High quality, long malleable cast iron jaws for large clamping depths; sturdy solid profile beam with serrations. Smooth running steel spindle with trapezoidal thread and moving jaw anvil. Instant adjustment, secure clamping. Clamp handle for large clamping force with little effort. Throat / clamping capacity mm 200/400 250/400 250/600 250/800 300/400 300/600 3 860300 Cross section of the slide beam mm 35x11 40x11 40x11 40x11 45x12 45x12 Weight kg 3.5 4.5 5.1 5.8 5.6 6.5 Throat / clamping capacity mm 400/400 400/800 500/300 500/600 500/800 1860300 Cross section of the slide beam mm 45x12 45x12 45x12 45x12 45x12 Weight kg 7.8 9.2 8.9 9.5 10.3 Edge clamp for all clamps with steel profile slide beam 0 Suitable for Version Application Steel clamps with maximum slide beam cross section 45x12 mm. Yoke with wing screw for mounting on the steel clamp slide beam. Burnished spindle with movable jaw. In conjunction with steel clamps for clamping on to face strips and edge strips as well as for clamping from three sides. Also supports the slide beam when clamping with very long steel clamps to stabilise the clamping pressure. Overall length mm 3 86 0400 Edge clamp 225 1428 Main catalogue Hoffmann Group 46
