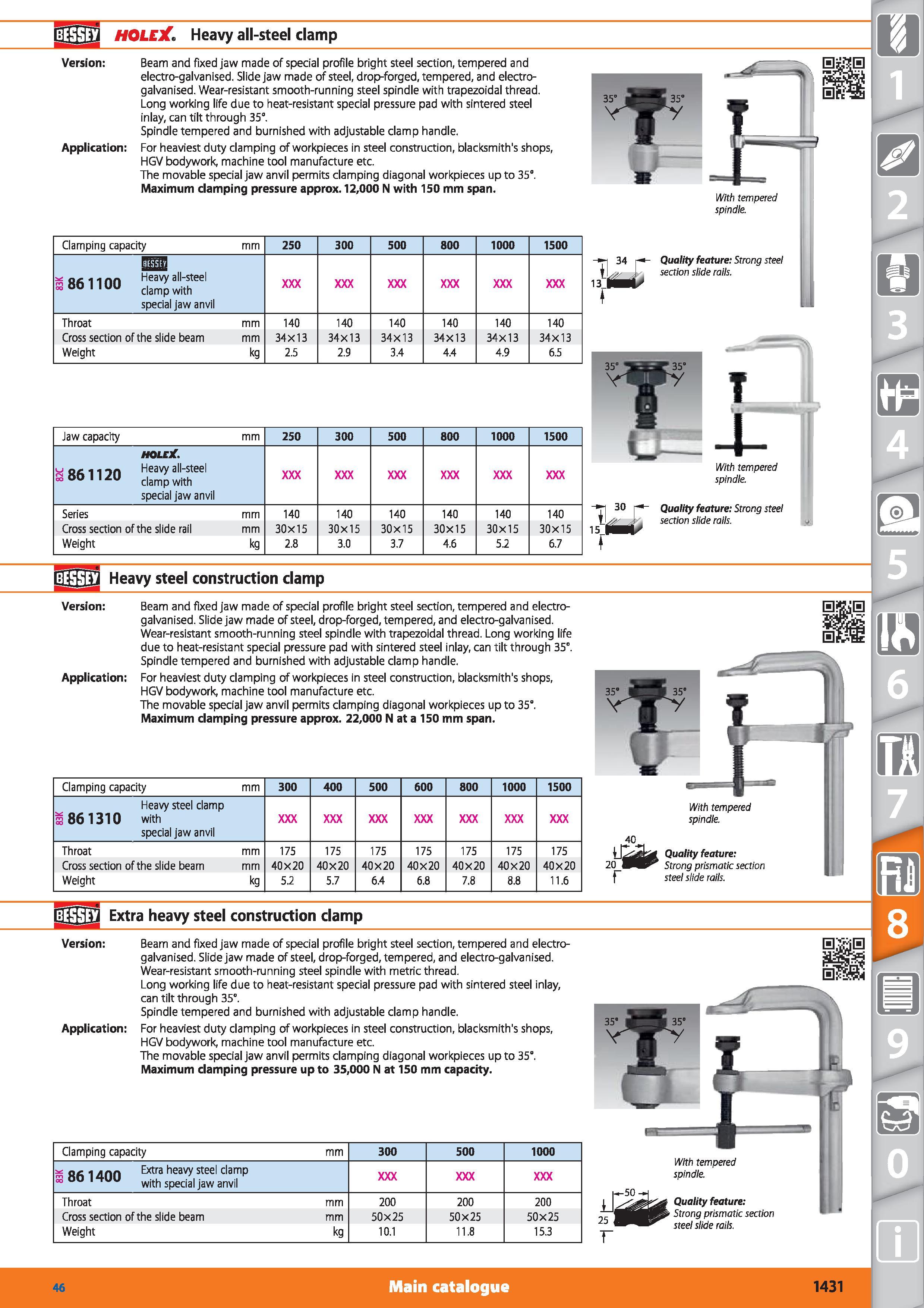

E jJ HOLEX Heavy all-steel clamp Version Beam and fixed jaw made of special profile bright steel section, tempered and electro-galvanised. Slide jaw made of steel, drop-forged, tempered, and electrogalvanised. Wear-resistant smooth-running steel spindle with trapezoidal thread. Long working life due to heat-resistant special pressure pad with sintered steel inlay, can tilt through 35°. Spindle tempered and burnished with adjustable clamp handle. Application For heaviest duty clamping of workpieces in steel construction, blacksmith's shops, HGV bodywork, machine tool manufacture etc. The movable special jaw anvil permits clamping diagonal workpieces up to 35°. Maximum clamping pressure approx. 12,000 N with 150 mm span. Clamping capacity mm 250 300 500 800 1000 1500 S3 861100 Heavy all-steel clamp with special jaw anvil Throat mm 140 140 140 140 140 140 Cross section of the slide beam mm 34X13 34X13 34X13 34X13 34X13 34X13 Weight kg 2.5 2.9 3.4 4.4 4.9 6.5 Jaw capacity mm 250 300 500 800 1000 1500 holbC. uQ in n Heavy all-steel SS 861120 clamp with special jaw anvil Series mm 140 140 140 140 140 140 Cross section of the slide rail mm 30x15 30x15 30x15 30x15 30x15 30x15 Weight kg 2.8 3.0 3.7 4.6 5.2 6.7 With tempered spindle. 30 Quality feature Strong steel section slide rails. EfflQ Heavy steel construction clamp Version Beam and fixed jaw made of special profile bright steel section, tempered and electro- galvanised. Slide jaw made of steel, drop-forged, tempered, and electro-galvanised. Wear-resistant smooth-running steel spindle with trapezoidal thread. Long working life due to heat-resistant special pressure pad with sintered steel inlay, can tilt through 35°. Spindle tempered and burnished with adjustable clamp handle. Application For heaviest duty clamping of workpieces in steel construction, blacksmith's shops, HGV bodywork, machine tool manufacture etc. The movable special jaw anvil permits clamping diagonal workpieces up to 35°. Maximum clamping pressure approx. 22,000 N at a 150 mm span. Clamping capacity mm 300 400 500 600 800 1000 1500 Heavy steel clamp 1861310 with special jaw anvil Throat mm 175 175 175 175 175 175 175 Cross section of the slide beam mm 40X20 40X20 40X20 40X20 40X20 40X20 40X20 Weight kg 5.2 5.7 6.4 6.8 7.8 8.8 11.6 tJZ&xj Quality feature 20 HP Strong prismatic section steel slide rails. GlfflD Extra heavy steel construction clamp Version Beam and fixed jaw made of special profile bright steel section, tempered and electro- galvanised. Slide jaw made of steel, drop-forged, tempered, and electro-galvanised. Wear-resistant smooth-running steel spindle with metric thread. Long working life due to heat-resistant special pressure pad with sintered steel inlay, can tilt through 35°. Spindle tempered and burnished with adjustable clamp handle. Application For heaviest duty clamping of workpieces in steel construction, blacksmith's shops, HGV bodywork, machine tool manufacture etc. The movable special jaw anvil permits clamping diagonal workpieces up to 35°. Maximum clamping pressure up to 35,000 N at 150 mm capacity. Clamping capacity mm 300 500 1000 1 Ann Extra heavy steel clamp S3 OO rUU w t 1 SpgC a jaw anvj Throat mm 200 200 200 Cross section of the slide beam mm 50x25 50x25 50x25 Weight kg 10.1 11.8 15.3 With tempered spindle. Quality feature Strong steel section slide rails. With tempered spindle 50- , Quality feature Strong prismatic section steel slide rails. Main catalogue Hoffmann Group 46 1431
