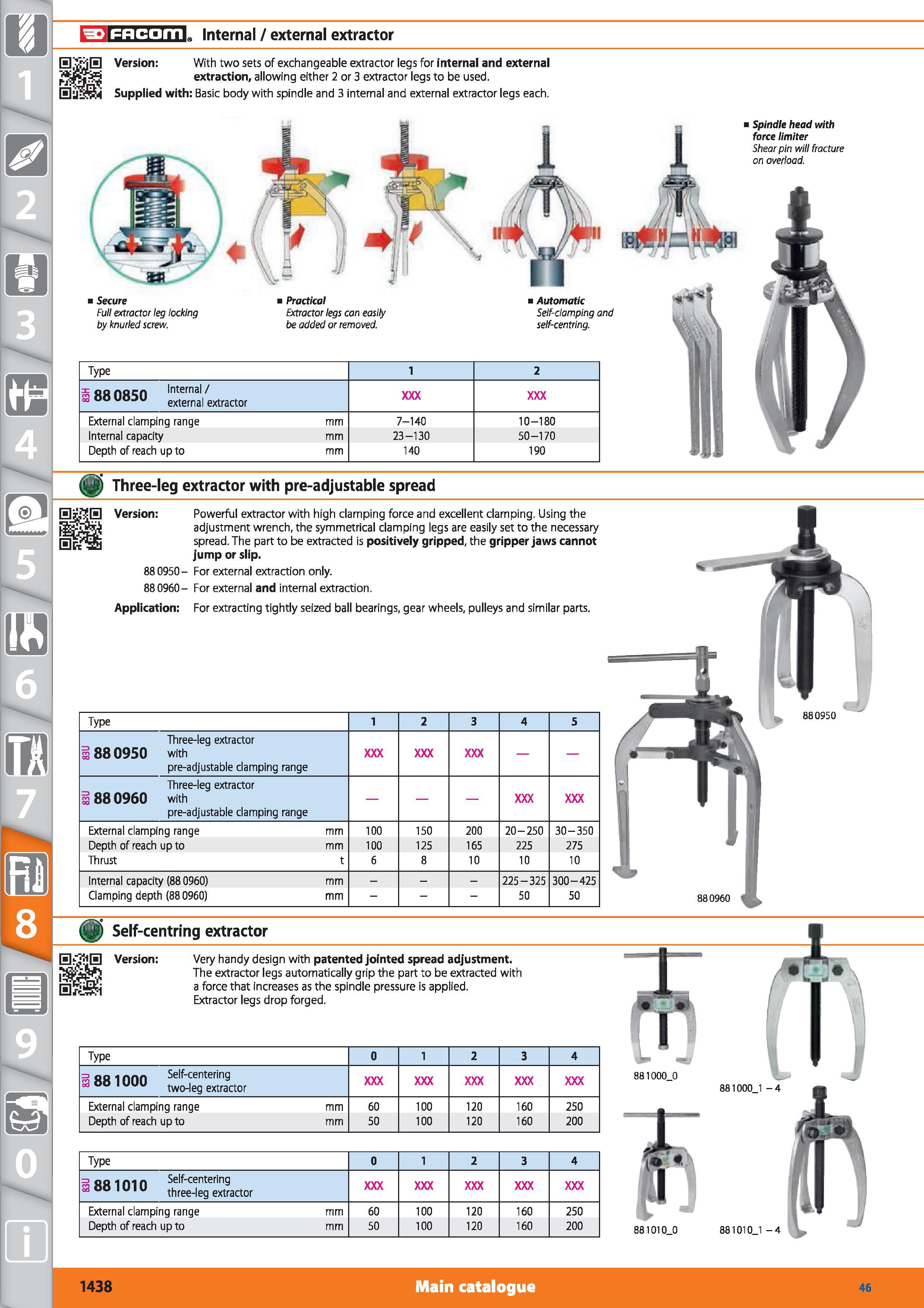

Internal / external extractor S'JijS Version With two sets of exchangeable extractor legs for internal and external extraction, allowing either 2 or 3 extractor legs to be used. Hjyfr Supplied with Basic body with spindle and 3 internal and external extractor legs each. Secure Full extractor leg locking by knurled screw. i Practical Extractor legs can easily be added or removed. i Automatic Self-clamping and self-centring. Spindle head with force limiter Shear pin will fracture on overload. Type 1 2 3 880850 “.extractor External clamping range mm 7-140 10-180 Internal capacity mm 23-130 50-170 Depth of reach up to mm 140 190 Three-leg extractor with pre-adjustable spread Powerful extractor with high clamping force and excellent clamping. Using the adjustment wrench, the symmetrical clamping legs are easily set to the necessary spread. The part to be extracted is positively gripped, the gripper jaws cannot jump or slip. 880950- For external extraction only. 880960- For external and internal extraction. Application For extracting tightly seized ball bearings, gear wheels, pulleys and similar parts. Type 1 2 3 4 5 Three-leg extractor 188 0950 with pre-adjustable clamping range Three-leg extractor 188 0960 with pre-adjustable clamping range External clamping range mm 100 150 200 20-250 30-350 Depth of reach up to mm 100 125 165 225 275 Thrust t 6 8 10 10 10 Internal capacity (880960) mm - 225-325 300-425 Clamping depth (880960) mm - 50 50 Version Very handy design with patented jointed spread adjustment. The extractor legs automatically grip the part to be extracted with a force that increases as the spindle pressure is applied. Extractor legs drop forged. Type 0 1 2 3 4 s 881000 S“9ctor External clamping range mm 60 100 120 160 250 Depth of reach up to mm 50 100 120 160 200 31000.0 31000 1 Type 0 1 2 3 4 oo mm Self-centering 101U three-leg extractor External clamping range mm 60 100 120 160 250 Depth of reach up to mm 50 100 120 160 200 881010_0 881010_1 1438 Main catalogue Hoffmann Group 46
