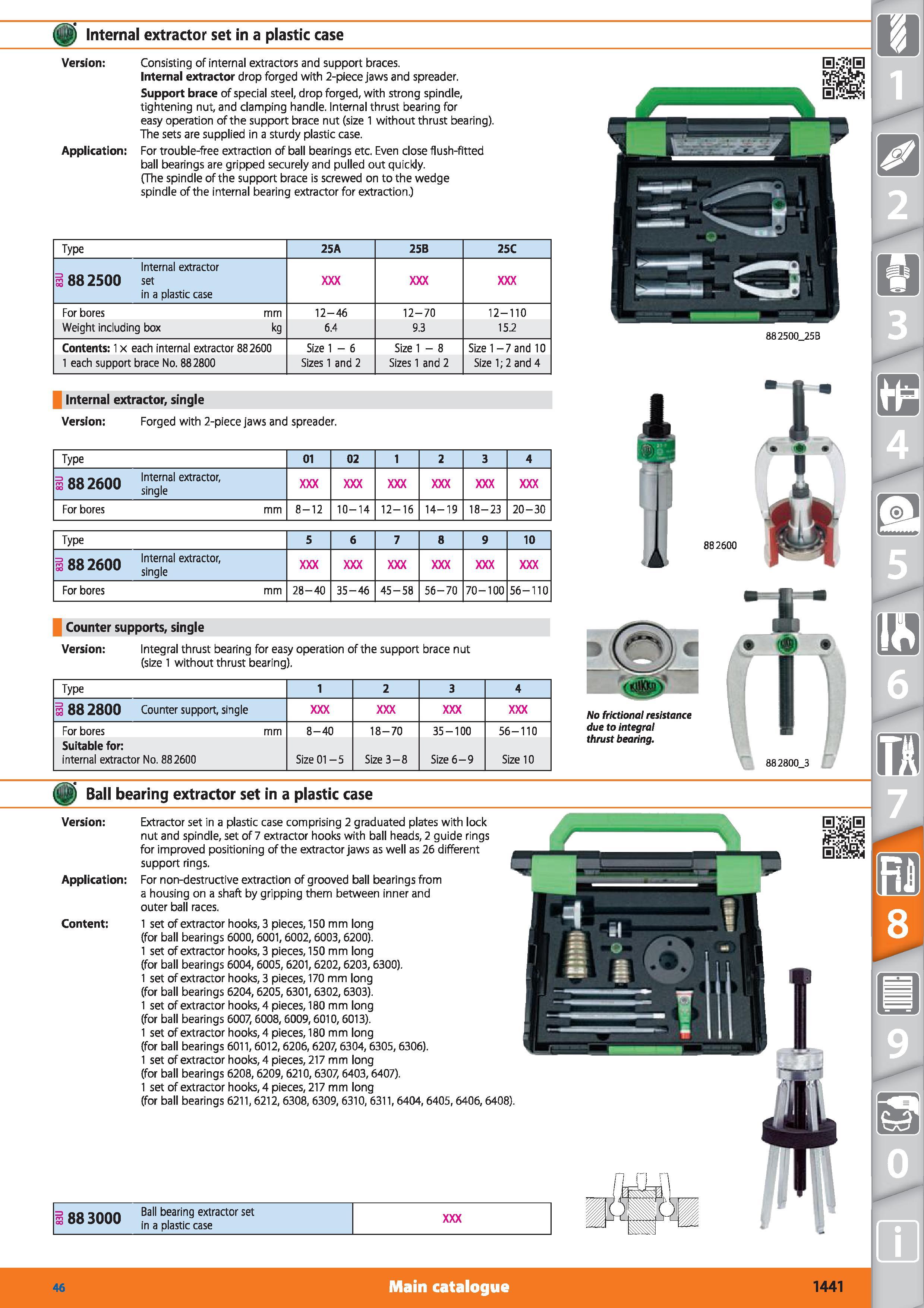

Internal extractor set in a plastic case Version Consisting of internal extractors and support braces. Internal extractor drop forged with 2-piece jaws and spreader. Support brace of special steel, drop forged, with strong spindle, tightening nut, and clamping handle. Internal thrust bearing for easy operation of the support brace nut (size 1 without thrust bearing). The sets are supplied in a sturdy plastic case. Application For trouble-free extraction of ball bearings etc. Even close flush-fitted ball bearings are gripped securely and pulled out quickly. (The spindle of the support brace is screwed on to the wedge spindle of the internal bearing extractor for extraction.) Type 25A 25B 2SC 3 88 2500 Internal extractor set in a plastic case For bores mm 12-46 12-70 12-110 Weight including box kg 6.4 9.3 15.2 Contents 1 x each internal extractor 882600 Size 1 - 6 Size 1 - 8 Size 1 -7 and 10 1 each support brace No. 882800 Sizes 1 and 2 Sizes 1 and 2 Size 1; 2 and 4 Internal extractor, single Version Forged with 2-piece jaws and spreader. Type 01 02 1 2 3 4 a 88 2600 Internal extractor, single For bores mm 8-12 10-14 12-16 14-19 18-23 20-30 Type 5 6 7 8 9 10 a 88 2600 Internal extractor, single For bores mm 28-40 35-46 45-58 56-70 70-100 56-110 Counter supports, single Version Integral thrust bearing for easy operation of the support brace nut (size 1 without thrust bearing). Type 1 2 3 4 3 88 2800 Counter support, single For bores mm 8-40 18-70 35-100 56-110 Suitable for internal extractor No. 882600 Size 01-5 Size 3-8 Size 6-9 Size 10 882600 No frictional resistance due to integral thrust bearing. Ball bearing extractor set in a plastic case 882500_25B 1883000 Ball bearing extractor set in a plastic case Version Extractor set in a plastic case comprising 2 graduated plates with lock nut and spindle, set of 7 extractor hooks with ball heads, 2 guide rings for improved positioning of the extractor jaws as well as 26 different support rings. Application For non-destructive extraction of grooved ball bearings from a housing on a shaft by gripping them between inner and outer ball races. Content 1 set of extractor hooks, 3 pieces, 150 mm long (for ball bearings 6000,6001,6002,6003,6200). 1 set of extractor hooks, 3 pieces, 150 mm long (for ball bearings 6004,6005,6201,6202,6203,6300). 1 set of extractor hooks, 3 pieces, 170 mm long (for ball bearings 6204,6205,6301,6302,6303). 1 set of extractor hooks, 4 pieces, 180 mm long (for ball bearings 6007,6008,6009,6010,6013). 1 set of extractor hooks, 4 pieces, 180 mm long (for ball bearings 6011,6012,6206,6207,6304,6305,6306). 1 set of extractor hooks, 4 pieces, 217 mm long (for ball bearings 6208,6209,6210,6307,6403,6407). 1 set of extractor hooks, 4 pieces, 217 mm long (for ball bearings 6211,6212, 6308, 6309, 6310, 6311,6404,6405,6406,6408). Main catalogue Hoffmann Group 46 1441
