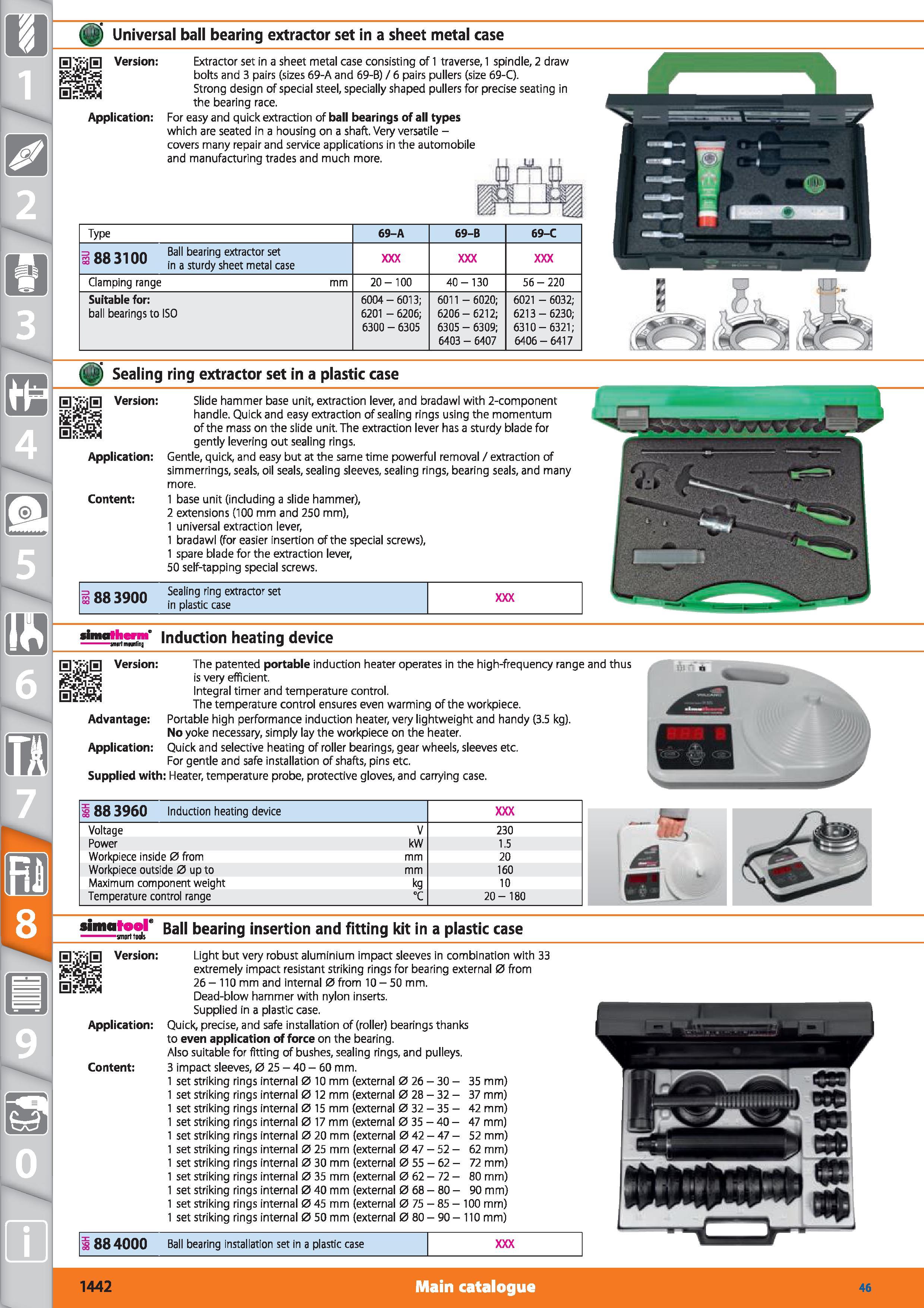

1 Universal ball bearing extractor set in a sheet metal case Version Application Extractor set in a sheet metal case consisting of 1 traverse, 1 spindle, 2 draw bolts and 3 pairs (sizes 69-A and 69-B) / 6 pairs pullers (size 69-C). Strong design of special steel, specially shaped pullers for precise seating in the bearing race. For easy and quick extraction of ball bearings of all types which are seated in a housing on a shaft. Very versatile -covers many repair and service applications in the automobile and manufacturing trades and much more. Type 69-A 69-B 69-C =3 no qi nn Ball bearing extractor set in a sturdy sheet metal case Clamping range mm 20-100 40-130 56 - 220 Suitable for 6004 - 6013; 6011 -6020; 6021 - 6032; ball bearings to ISO 6201 - 6206; 6206-6212; 6213-6230; 6300 - 6305 6305 - 6309; 6310-6321; 6403 - 6407 6406 - 6417 Sealing ring extractor set in a plastic case Version Slide hammer base unit, extraction lever, and bradawl with 2-component handle. Quick and easy extraction of sealing rings using the momentum of the mass on the slide unit. The extraction lever has a sturdy blade for gently levering out sealing rings. Application Gentle, quick, and easy but at the same time powerful removal / extraction of simmerrmgs, seals, oil seals, sealing sleeves, sealing rings, bearing seals, and many more. Content 1 base unit (including a slide hammer), 2 extensions (100 mm and 250 mm), 1 universal extraction lever, 1 bradawl (for easier insertion of the special screws), 1 spare blade for the extraction lever, 50 self-tapping special screws. I no qqnn Sealing ring extractor set oo 3 UU in p astic case Induction heating device Version The patented portable induction heater operates in the high-frequency range and thus is very efficient. Integral timer and temperature control. The temperature control ensures even warming of the workpiece. Advantage Portable high performance induction heater, very lightweight and handy (3.5 kg). No yoke necessary, simply lay the workpiece on the heater. Application Quick and selective heating of roller bearings, gear wheels, sleeves etc. For gentle and safe installation of shafts, pins etc. Supplied with Heater, temperature probe, protective gloves, and carrying case. 1 88 3960 Induction heating device Voltage V 230 Power kW 1.5 Workpiece inside 0 from mm 20 Workpiece outside 0 up to mm 160 Maximum component weight kg 10 Temperature control range °C 20-180 ffaratoor Ball bearing insertion and fitting kit in a plastic case Version Application Content Light but very robust aluminium impact sleeves in combination with 33 extremely impact resistant striking rings for bearing external 0 from 26-110 mm and internal 0 from 10 - 50 mm. Dead-blow hammer with nylon inserts. Supplied in a plastic case. Quick, precise, and safe installation of (roller) bearings thanks to even application of force on the bearing. Also suitable for fitting of bushes, sealing rings, and pulleys. 3 impact sleeves, 0 25 - 40 - 60 mm. 1 set striking rings internal 0 10 mm (external 0 26 - 30 - 35 mm) 1 set striking rings internal 0 12 mm (external 0 28 - 32 - 37 mm) 1 set striking rings internal 0 15 mm (external 0 32 - 35 - 42 mm) 1 set striking rings internal 0 17 mm (external 0 35 - 40 - 47 mm) 1 set striking rings internal 0 20 mm (external 0 42 - 47 - 52 mm) 1 set striking rings internal 0 25 mm (external 0 47 - 52 - 62 mm) 1 set striking rings internal 0 30 mm (external 0 55 - 62 - 72 mm) 1 set striking rings internal 0 35 mm (external 0 62 - 72 - 80 mm) 1 set striking rings internal 0 40 mm (external 0 68 - 80 - 90 mm) 1 set striking rings internal 0 45 mm (external 0 75 - 85 - 100 mm) 1 set striking rings internal 0 50 mm (external 0 80 - 90 - 110 mm) 1884000 Ball bearing installation set in a plastic case 1442 Main catalogue Hoffmann Group 46
