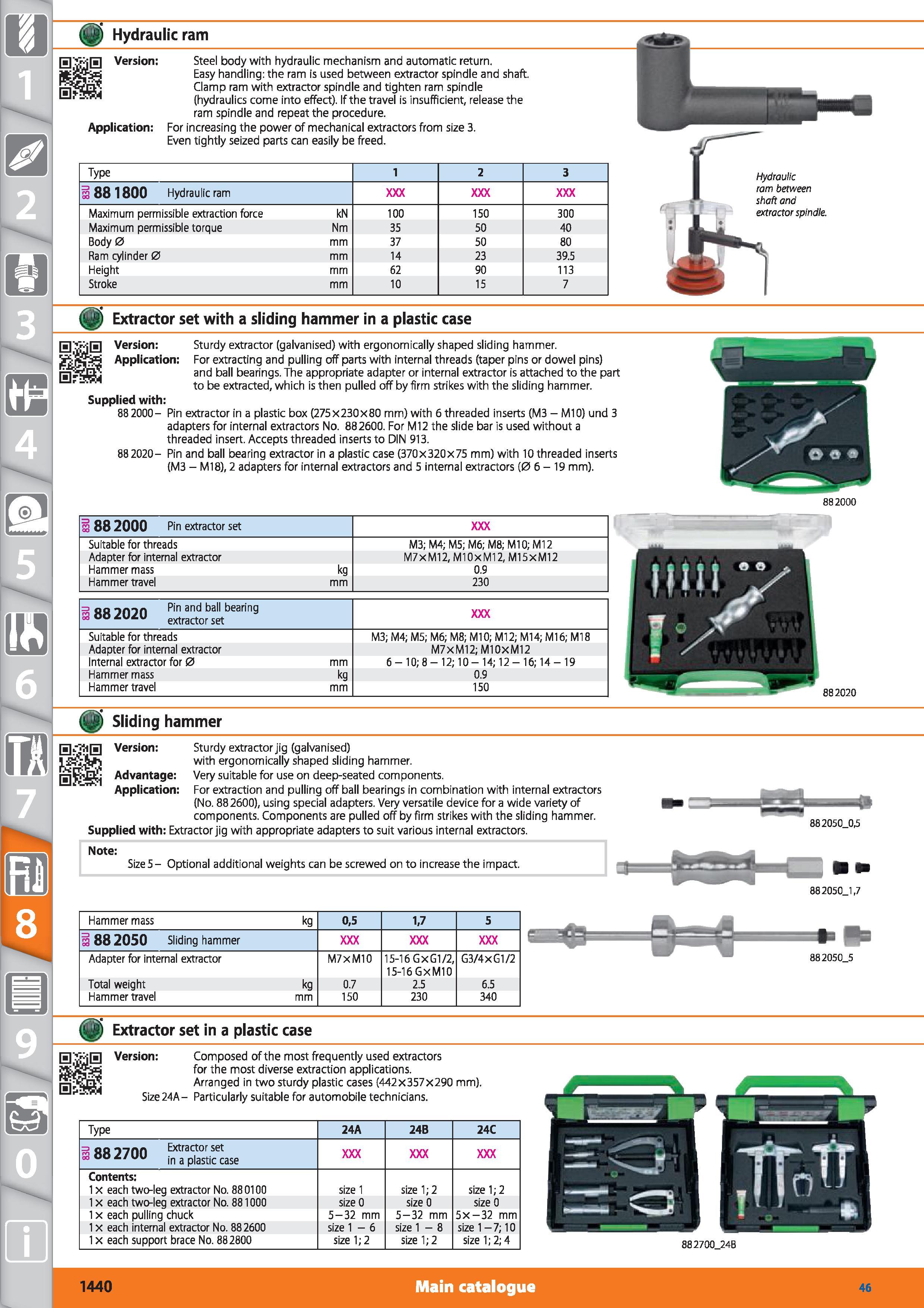

Hydraulic ram Version Application Steel body with hydraulic mechanism and automatic return. Easy handling the ram is used between extractor spindle and shaft. Clamp ram with extractor spindle and tighten ram spindle (hydraulics come into effect). If the travel is insufficient, release the ram spindle and repeat the procedure. For increasing the power of mechanical extractors from size 3. Even tightly seized parts can easily be freed. Type 1 2 3 S 88 1800 Hydraulic ram Maximum permissible extraction force kN 100 150 300 Maximum permissible torque Nm 35 50 40 Body 0 mm 37 50 80 Ram cylinder 0 mm 14 23 39.5 Height mm 62 90 113 Stroke mm 10 15 7 Hydraulic ram between shaft and extractor spindle Extractor set with a sliding hammer in a plastic case a Version Sturdy extractor (galvanised) with ergonomically shaped sliding hammer. Application For extracting and pulling off parts with internal threads (taper pins or dowel pins) and ball bearings. The appropriate adapter or internal extractor is attached to the part to be extracted, which is then pulled off by firm strikes with the sliding hammer. Supplied with 88 2000- Pin extractor in a plastic box (275 x 230 x 80 mm) with 6 threaded inserts (M3 - M10) und 3 adapters for internal extractors No. 882600. For M12 the slide bar is used without a threaded insert. Accepts threaded inserts to DIN 913. 88 2020- Pin and ball bearing extractor in a plastic case (370 x 320 x 75 mm) with 10 threaded inserts (M3 - M18), 2 adapters for internal extractors and 5 internal extractors (0 6-19 mm). 882000 S 88 2000 Pin extractor set Suitable for threads M3;M4;M5; M6; M8; M10; M12 Adapter for internal extractor M7xM12,M10xM12,M15xM12 Hammer mass kg 0.9 Hammer travel mm 230 => oo min Pin and ball bearing a 88 2020 extractorset Suitable for threads M3; M4; M5; M6; M8; M10; M12; M14; M16; M18 Adapter for internal extractor M7XM12; M10XM12 Internal extractor for 0 mm 6 - 10; 8 - 12; 10-14; 12 - 16; 14 - 19 Hammer mass kg 0.9 Hammer travel mm 150 8 m Version Advantage Application Sturdy extractor jig (galvanised) with ergonomically shaped sliding hammer. Very suitable for use on deep-seated components. For extraction and pulling off ball bearings in combination with internal extractors (No. 882600), using special adapters. Very versatile device for a wide variety of components. Components are pulled off by firm strikes with the sliding hammer. Supplied with Extractor jig with appropriate adapters to suit various internal extractors. Note Size 5- Optional additional weights can be screwed on to increase the impact. 882050_0,5 882050_1,7 Hammer mass kg 0,5 1,7 5 a 88 2050 Sliding hammer Adapter for internal extractor M7XM10 15-16 GxG1/2, 15-16 GxMIO G3/4XG1/2 Total weight kg 0.7 2.5 6.5 Hammer travel mm 150 230 340 88 2050_5 Extractor set in a plastic case g Version Composed of the most frequently used extractors for the most diverse extraction applications. Arranged in two sturdy plastic cases (442x357x290 mm). Size24A- Particularly suitable for automobile technicians. Type 24A 24B 24C => oo imn Extractor set a 88 2700 in a p astic case Contents 1 x each two-leg extractor No. 880100 size 1 size 1; 2 size 1; 2 1 x each two-leg extractor No. 881000 sizeO size 0 size 0 1 x each pulling chuck 5-32 mm 5-32 mm 5x-32 mm 1 x each internal extractor No. 882600 size 1 - 6 size 1 - 8 size 1-7; 10 1 x each support brace No. 882800 size 1; 2 size 1; 2 size 1; 2; 4 882700_24B 882020 1440 Main catalogue Hoffmann Group 46
