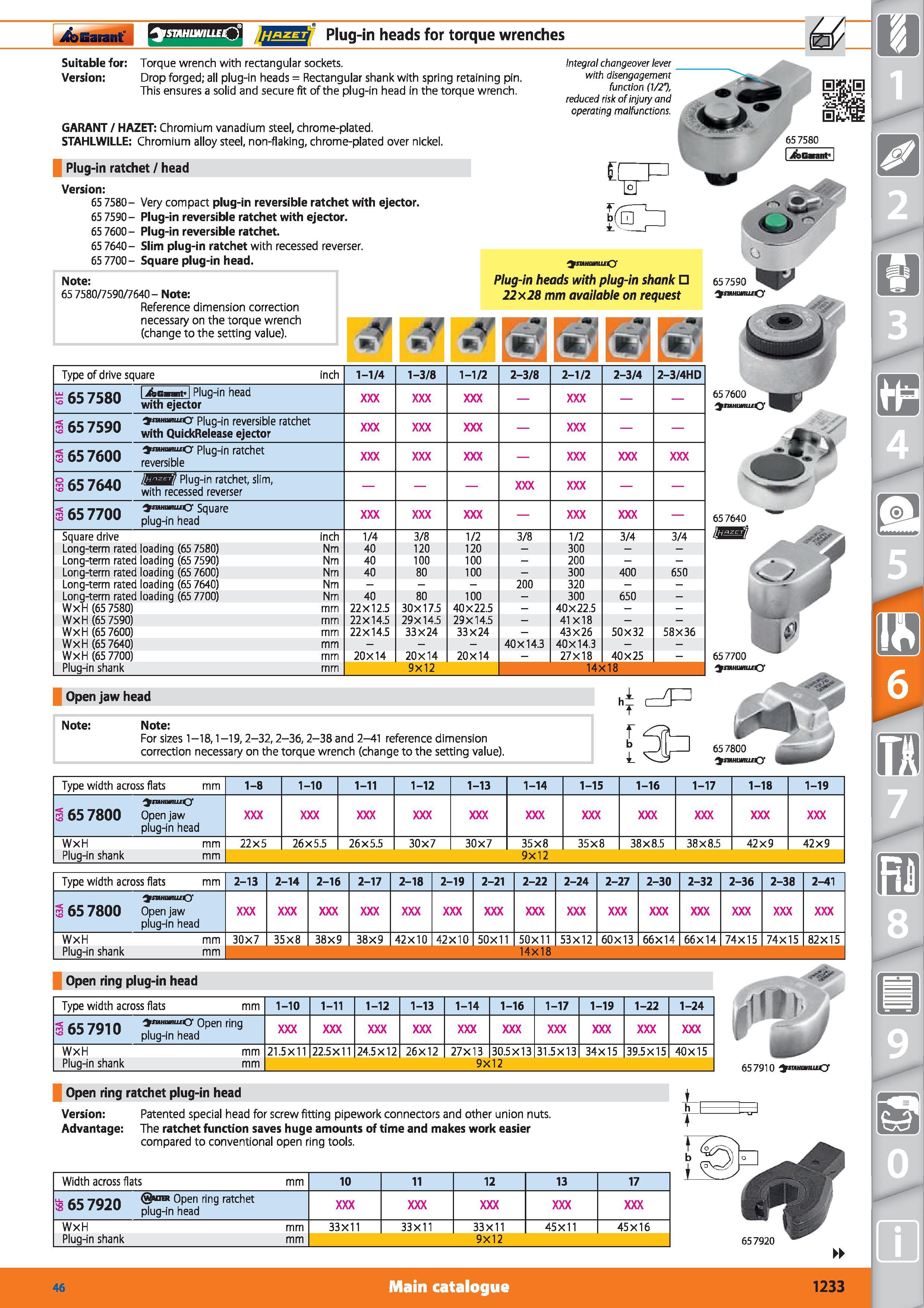

Garant STAHUIVILLE J J Plug-in heads for torque wrenches Suitable for Torque wrench with rectangular sockets. Version Drop forged; all plug-in heads Rectangular shank with spring retaining pin. This ensures a solid and secure fit of the plug-in head in the torque wrench. GARANT / HAZET Chromium vanadium steel, chrome-plated. STAHLWILLE Chromium alloy steel, non-flaking, chrome-plated over nickel. Integral changeover lever with disengagement function (1/2"), reduced risk of injury and operating malfunctions. Plug-in ratchet / head Version 65 7580- Very compact plug-in reversible ratchet with ejector. 65 7590- Plug-in reversible ratchet with ejector. 65 7600- Plug-in reversible ratchet. 65 7640- Slim plug-in ratchet with recessed reverser. 65 7700- Square plug-in head. Note 65 7580/7590/7640- Note Reference dimension correction necessary on the torque wrench (change to the setting value). SHMUHUfO Plug-in heads with plug-in shank 22x28 mm available on request / t K it Type of drive square inch 1-1/4 1-3/8 1-1/2 2-3/8 2-1/2 2-3/4 2-3/4HD uj iron 1 jfecmnt l Plug-in head 5 03 /DOU with ejector f-r 7rnn Plug-in reversible ratchet 03 /3yu with QuickRelease ejector < e-c ic.nn Plug-in ratchet 3 657600 reversib,e 65 7640 Plug-in ratchet, slim, -o 03 /ow with recessed reverser < cc iinn Square , 65 7700 p ug.in head Square drive inch 1/4 3/8 1/2 3/8 1/2 3/4 3/4 Long-term rated loading (65 7580) Nm 40 120 120 300 Long-term rated loading (65 7590) Nm 40 100 100 - 200 Long-term rated loading (65 7600) Nm 40 80 100 - 300 400 650 Long-term rated loading (65 7640) Nm 200 320 Long-term rated loading (65 7700) Nm 40 80 100 - 300 650 - WxH (65 7580) mm 22X12.5 30X17.5 40 X 22.5 - 40X22.5 WxH (65 7590) mm 22X14.5 29X14.5 29X14.5 41X18 WxH (65 7600) mm 22X14.5 33X24 33X24 - 43X26 50X32 58X36 WxH (65 7640) mm - 40X14.3 40X14.3 WxH (65 7700) mm 20x14 20x14 20x14 27x18 40x25 Plug-in shank mm 9X12 14X18 Open jaw head Note Note For sizes 1-18,1-19,2-32,2-36,2-38 and 2-41 reference dimension correction necessary on the torque wrench (change to the setting value). Type width across flats mm 1-8 1-10 1-11 1-12 1-13 1-14 1-15 1-16 1-17 1-18 1-19 3 65 7800 Open jaw plug-in head WxH mm 22x5 26x5.5 26x5.5 30x7 30x7 35x8 35x8 38x8.5 38x8.5 42x9 42x9 Plug-in shank mm 9x12 Type width across flats mm 2-13 2-14 2-16 2-17 2-18 2-19 2-21 2-22 2-24 2-27 2-30 2-32 2-36 2-38 2-41 3 65 7800 Open jaw plug-in head WxH mm 30X7 35X8 38X9 38X9 42X10 42X10 50X11 50X11 53X12 60X13 66X14 66X14 74X15 74X15 82X15 Plug-in shank mm 14X18 Open ring plug-in head Type width across flats mm 1-10 1-11 1-12 1-13 1-14 1-16 1-17 1-19 1-22 1-24 < -jo. n yruHiwtmgy Open ring 3657910 p Ug.in head WxH mm 21.5X11 22.5X11 24.5X12 26X12 27X13 30.5X13 31.5X13 34X15 39.5X15 40X15 Plug-in shank mm 9X12 Open ring ratchet plug-in head Version Patented special head for screw fitting pipework connectors and other union nuts. Advantage The ratchet function saves huge amounts of time and makes work easier compared to conventional open ring tools. Width across flats mm 10 11 12 13 17 IK 7Q n H °Pen rin9 ratchet 3 03 p ug_(n head WxH mm 33X11 33X11 33X11 45X11 45X16 Plug-in shank mm 9X12 65 7910 Juhmmuio 657920 Main catalogue Hoffmann Group 46 1233
