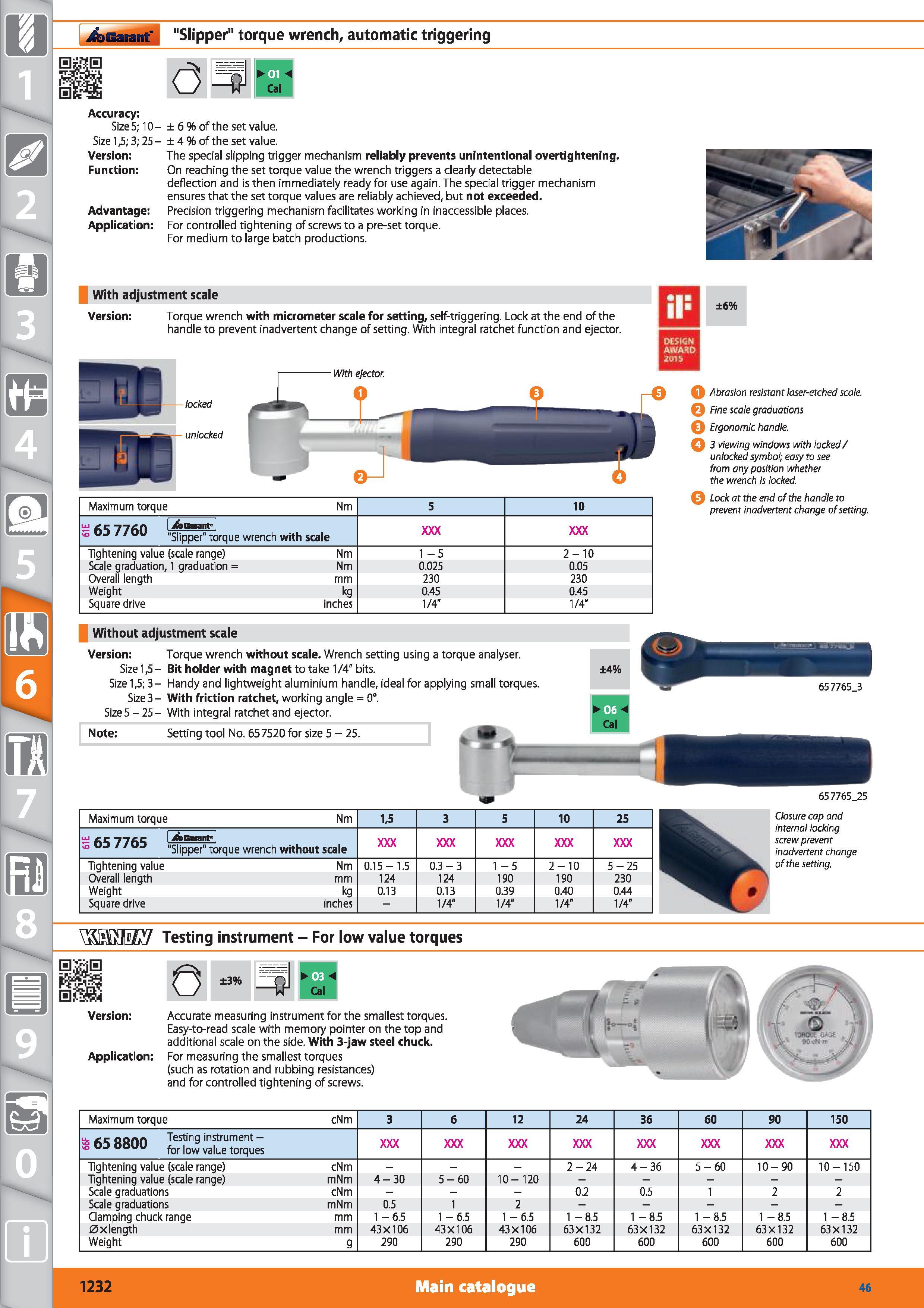

Garant "Slipper" torque wrench, automatic triggering (3 Accuracy Size 5; 10-Size 1A 3; 25-Version Function Advantage Application ± 6 of the set value. ± 4 of the set value. The special slipping trigger mechanism reliably prevents unintentional overtightening. On reaching the set torque value the wrench triggers a clearly detectable deflection and is then immediately ready for use again. The special trigger mechanism ensures that the set torque values are reliably achieved, but not exceeded. Precision triggering mechanism facilitates working in inaccessible places. For controlled tightening of screws to a pre-set torque. For medium to large batch productions. ". j-i tSTy With adjustment scale Version Torque wrench with micrometer scale for setting, self-triggering. Lock at the end of the handle to prevent inadvertent change of setting. With integral ratchet function and ejector. ±6% Maximum torque Nm 5 10 w gr 77gg Amnf "Slipper" torque wrench with scale Tightening value (scale range) Nm 1 -5 2-10 Scale graduation, 1 graduation Nm 0.025 0.05 Overall length mm 230 230 Weight kg 0.45 0.45 Square drive inches 1/4” 1/4" Q Abrasion resistant laser-etched scale. Q Fine scale graduations Q Ergonomic handle Q 3 viewing windows with locked/ unhcked symbol easy to see from any position whether the wrench is locked. Lock at the end of the handle to prevent inadvertent change of setting. Without adjustment scale Version Torque wrench without scale. Wrench setting using a torque analyser. Size 1,5 Bit holder with magnet to take 1/4" bits. Size 1,5; 3- Handy and lightweight aluminium handle, ideal for applying small torques. Size 3- With friction ratchet, working angle 0°. Size 5 - 25- With integral ratchet and ejector. Note Setting tool No. 657520 for size 5 - 25. Maximum torque Nm 1,5 3 5 10 25 ” "Slipper" torque wrench without scale Tightening value Nm 0.15-1.5 0.3-3 1 -5 2-10 5-25 Overall length mm 124 124 190 190 230 Weight kg 0.13 0.13 0.39 0.40 0.44 Square drive inches - 1/4" 1/4" 1/4” 1/4” 65 7765_25 Closure cap and internal locking screw prevent inadvertent change of the setting. \jTesting instrument - For low value torques 6 ±3% Version Application Accurate measuring instrument for the smallest torques. Easy-to-read scale with memory pointer on the top and additional scale on the side. With 3-jaw steel chuck. For measuring the smallest torques (such as rotation and rubbing resistances) and for controlled tightening of screws. Maximum torque cNm 3 6 12 24 36 60 90 150 658800 Jesting instrument-” for low value torques Tightening value (scale range) cNm - 2-24 4-36 5-60 10-90 10-150 Tightening value (scale range) mNm 4-30 5-60 10-120 - Scale graduations cNm - 0.2 0.5 1 2 2 Scale graduations mNm 0.5 1 2 - Clamping chuck range mm 1 -6.5 1 -6.5 1 -6.5 1 -8.5 1 -8.5 1 -8.5 1 -8.5 1 -8.5 0x length mm 43X106 43X106 43X106 63X132 63X132 63X132 63X132 63X132 Weight g 290 290 290 600 600 600 600 600 1232 Main catalogue Hoffmann Group 46
