1235 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1235

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1235 1235 ENG Lab2u

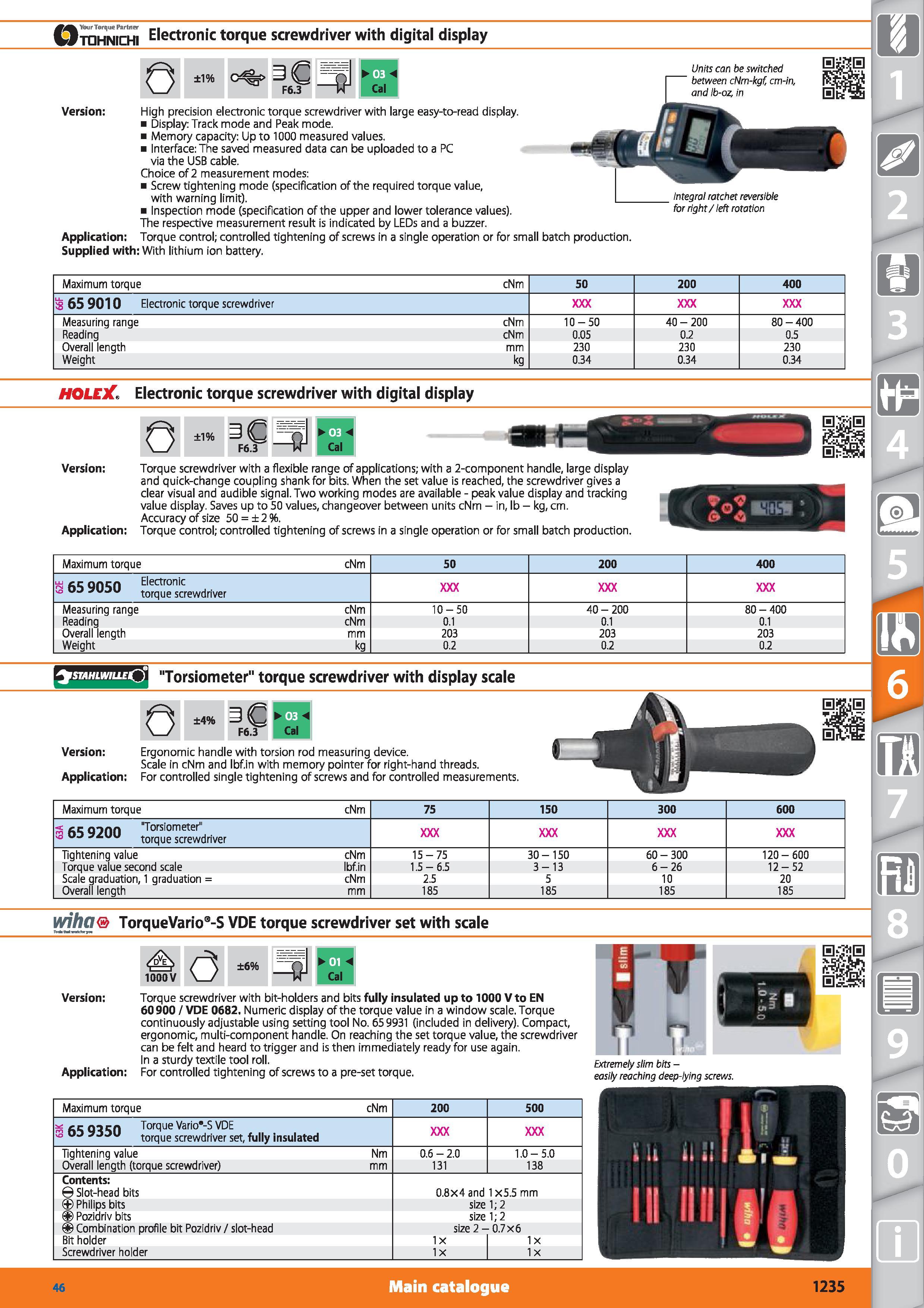

TdHNiCHi Electronic torque screwdriver with digital display ±1% F6.3 Version High precision electronic torque screwdriver with large easy-to-read display. Display Track mode and Peak mode. Memory capacity Up to 1000 measured values. Interface The saved measured data can be uploaded to a PC via the USB cable. Choice of 2 measurement modes Screw tightening mode (specification of the required torque value, with warning limit). Inspection mode (specification of the upper and lower tolerance values). The respective measurement result is indicated by LEDs and a buzzer. Application Torque control; controlled tightening of screws in a single operation or for small batch production Supplied with With lithium ion battery. Units can be switched between cNm-kgf, cm-in, and ib-oz, in Integral ratchet reversible for right/left rotation f Maximum torque cNm 50 200 400 S 65 9010 Electronic torque screwdriver Measuring range cNm 10-50 40 - 200 80-400 Reading cNm 0.05 0.2 0.5 Overall length mm 230 230 230 Weight kg 0.34 0.34 0.34 HOLEX Electronic torque screwdriver with digital display O ±1% F6.3 03 ra Version Application Torque screwdriver with a flexible range of applications; with a 2-component handle, large display and quick-change coupling shank for bits. When the set value is reached, the screwdriver gives a clear visual and audible signal. Two working modes are available - peak value display and tracking value display. Saves up to 50 values, changeover between units cNm - in, lb - kg, cm. Accuracy of size 50 ± 2 %. Torque control; controlled tightening of screws in a single operation or for small batch production. Maximum torque cNm 50 200 400 s 65 9050 tElectronic torque screwdriver Measuring range cNm 10-50 40 - 200 80 - 400 Reading cNm 0.1 0.1 0.1 Overall length mm 203 203 203 Weight kg 0.2 0.2 0.2 STAHLWILLE ) "Torsiometer" torque screwdriver with display scale O ±4% F6 V Version Ergonomic handle with torsion rod measuring device. Scale in cNm and Ibf.in with memory pointer for right-hand threads. Application For controlled single tightening of screws and for controlled measurements. J 1 I V 198 1 1 u F Maximum torque cNm 75 150 300 600 3 q7nn "Torsiometer" torque screwdriver Tightening value cNm 15-75 30-150 60-300 120-600 Torque value second scale Ibf.in 1.5-6.5 3-13 6-26 12-52 Scale graduation, 1 graduation cNm 2.5 5 10 20 Overall length mm 185 185 185 185 Wihd TorqueVario -S VDE torque screwdriver set with scale 1000V ±6% Version Application Torque screwdriver with bit-holders and bits fully insulated up to 1000 V to EN 60900 / VDE 0682, Numeric display of the torque value in a window scale. Torque continuously adjustable using setting tool No. 65 9931 (included in delivery). Compact, ergonomic, multi-component handle. On reaching the set torque value, the screwdriver can be felt and heard to trigger and is then immediately ready for use again. In a sturdy textile tool roll. For controlled tightening of screws to a pre-set torque. Extremely slim bits - easily reaching deep-lying screws. Maximum torque cNm 200 500 cc g n Torque Vario’-S VDE torque screwdriver set, fully insulated Tightening value Nm 0.6 - 2.0 1.0-5.0 Overall length (torque screwdriver) mm 131 138 Contents Slot-head bits 0.8x4 and 1x5.5 mm Philips bits size 1; 2 ) Pozidriv bits size 1; 2 Combination profile bit Pozidriv/slot-head size 2 - 0.7x6 Bit holder lx lx Screwdriver holder lx lx m Main catalogue Hoffmann Group 46 1235
