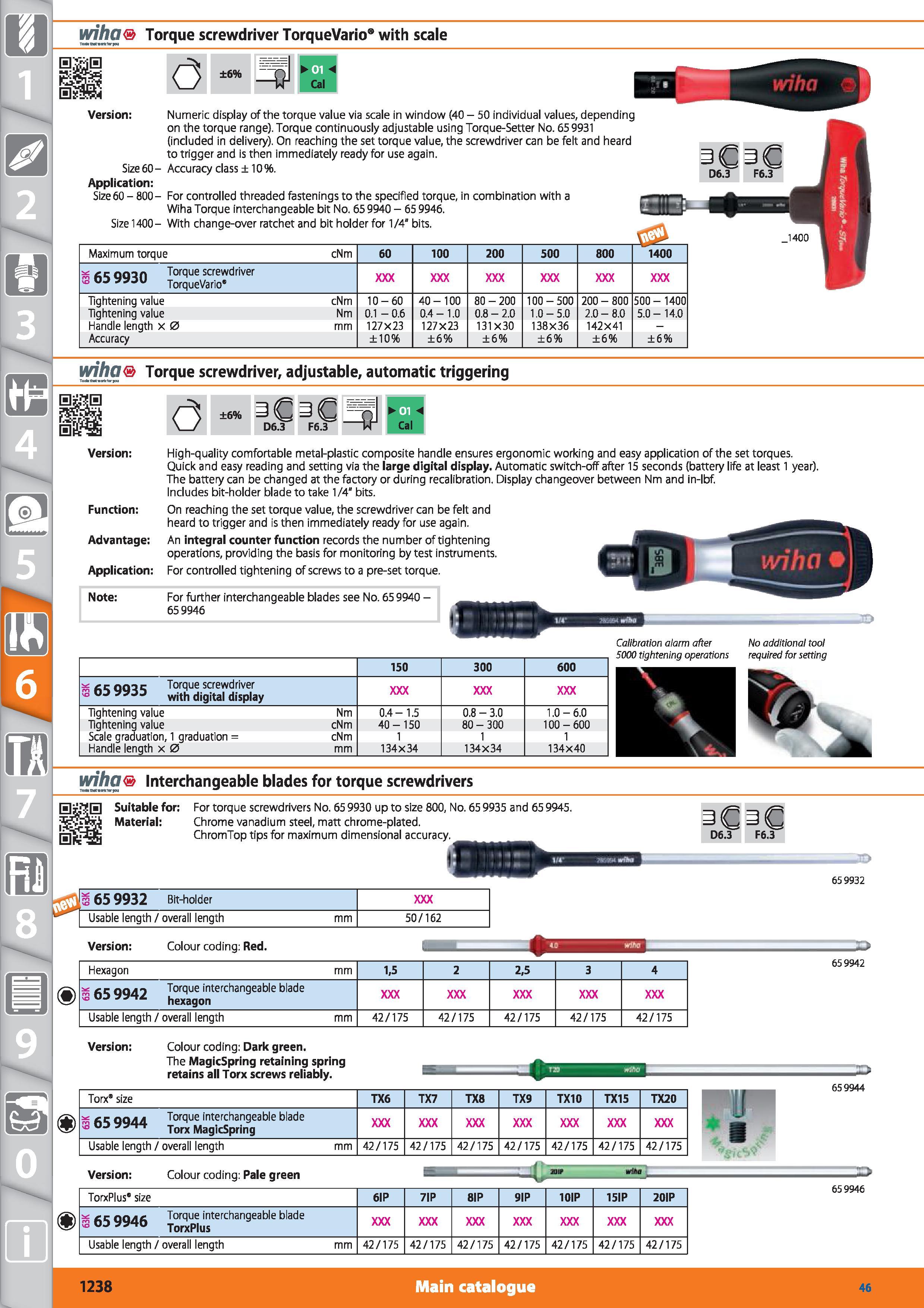

1 wiha Torque screwdriver TorqueVario with scale (3 ±6% Version Numeric display of the torque value via scale in window (40 - 50 individual values, depending on the torque range). Torque continuously adjustable using Torque-Setter No. 65 9931 (included in delivery). On reaching the set torque value, the screwdriver can be felt and heard to trigger and is then immediately ready for use again. Size60- Accuracy class ± 10%. Application Size 60 - 800- For controlled threaded fastenings to the specified torque, in combination with a Wiha Torque interchangeable bit No. 659940 - 65 9946. Size 1400- With change-over ratchet and bit holder for 1/4" bits. D6.3 Maximum torque cNm 60 100 200 500 800 1400 nom Torque screwdriver S 65 9930 TorqueVario Tightening value cNm 10-60 40-100 80 - 200 100-500 200 - 800 500- 1400 Tightening value Nm 0.1 - 0.6 0.4-1.0 0.8 - 2.0 1.0-5.0 2.0-8.0 5.0-14.0 Handle length x 0 mm 127X23 127X23 131X30 138x36 142X41 Accuracy ±10% ±6% ±6% ±6% ±6% ±6% wiha Torque screwdriver, adjustable, automatic triggering ±6% 3C n 1 01 vv D6.3 F6.3 Cal Version Function Advantage Application High-quality comfortable metal-plastic composite handle ensures ergonomic working and easy application of the set torques. Quick and easy reading and setting via the large digital display. Automatic switch-off after 15 seconds (battery life at least 1 year). The battery can be changed at the factory or during recalibration. Display changeover between Nm and in-lbf. Includes bit-holder blade to take 1/4" bits. On reaching the set torque value, the screwdriver can be felt and heard to trigger and is then immediately ready for use again. An integral counter function records the number of tightening operations, providing the basis for monitoring by test instruments. For controlled tightening of screws to a pre-set torque. Note For further interchangeable blades see No. 65 9940 - 659946 150 300 600 sc nnnr Torque screwdriver 03 wjth djgita djsp ay Tightening value Nm 0.4- 1.5 0.8 - 3.0 1.0-6.0 Tightening value cNm 40-150 80 - 300 100-600 Scale graduation, 1 graduation cNm 1 1 1 Handle length x 0 mm 134x34 134x34 134x40 Calibration alarm after 5000 tightening operations No additional tool required for setting wiha Interchangeable blades for torque screwdrivers Suitable for Material For torque screwdrivers No. 65 9930 up to size 800, No. 65 9935 and 65 9945. Chrome vanadium steel, matt chrome-plated. ChromTop tips for maximum dimensional accuracy. fS1 659932 3 65 9932 Bit-holder Usable length / overall length mm 50/162 Version Colour coding Red. 1 - 1 Hexagon mm 1,5 2 2,5 3 4 659942 65 9942 Torclue interchangeable blade hexagon Usable length / overall length mm 42/175 42/175 42/175 42/175 42/175 Version Colour coding Dark green. The MagicSpring retaining spring retains all Torx screws reliably. Torx” size TX6 TX7 TX8 TX9 TX10 TX15 TX20 3 659944 Torque interchangeable blade Torx MagicSpring Usable length / overall length mm 42/175 42/175 42/175 42/175 42/175 42/175 42/175 Version Colour coding Pale green 659944 TorxPlus” size 6IP 7IP 8IP 9IP 10IP 15IP 20IP s 65 9946 Torque interchangeable blade TorxPlus Usable length / overall length mm 42/175 42/175 42/175 42/175 42/175 42/175 42/175 659946 1238 Main catalogue Hoffmann Group 46
